Camshaft Position (CMP) Sensor RH



Camshaft Position (CMP) Sensor RH

Removal
1. Disconnect the battery ground cable.
2. Remove the throttle body gasket.

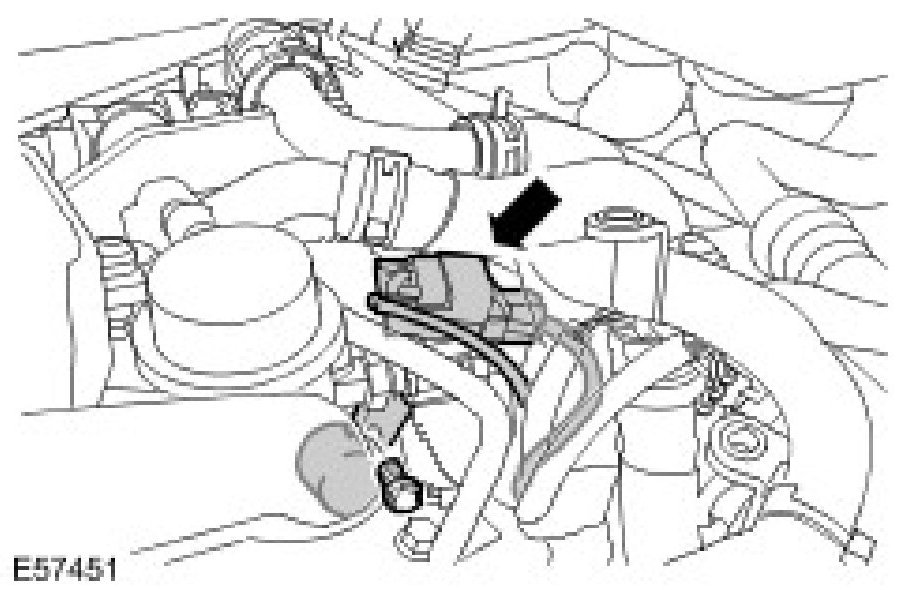

3. Remove the camshaft position (CMP) sensor.
^ Disconnect the electrical connector.
^ Remove the bolt.
^ Discard the O-ring seal.





Installation
1. Install the CMP sensor.
^ Clean the component mating faces.
^ Install a new O-ring seal.
^ Tighten the bolt to 7 Nm (5 ft. lbs.)
^ Connect the electrical connector.

2. Install the throttle body gasket.
3. Connect the battery ground cable.
