Parking Aid Camera



Parking Aid Camera

Removal
1. Remove the rear spoiler.

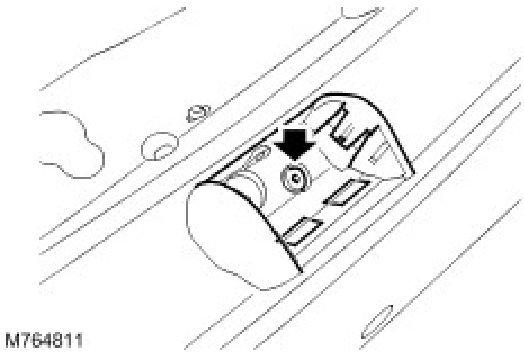

2. Remove the parking aid camera.
- Remove the screw.
- Release the 2 clips.







3. Remove the parking aid camera bracket.
- Drill out the rivet.
- Release the parking aid camera bracket, adhesive pads.

Installation

NOTE: Make sure that all the component mating faces are clean.

1. Install the parking aid camera bracket.
- Secure the bracket with new adhesive pads and rivet.

2. Install the parking aid camera.
- Secure the clips.
- Install the screw.

3. Install the rear spoiler.
