Procedures



Battery Disconnect/Connect

CAUTION:

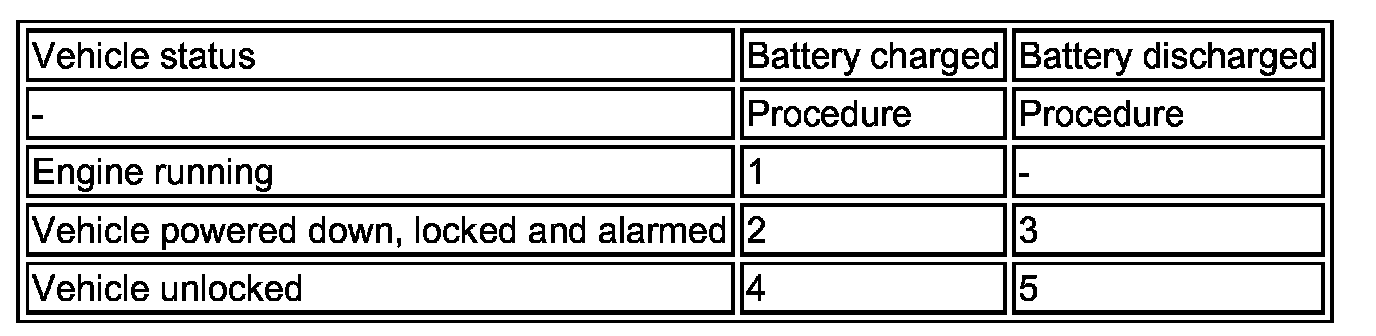

^ The vehicle status and battery condition must be established before attempting battery disconnect/connect. Reference must then be made to the following table to establish the relevant procedure to be followed.
^ After connecting the battery, the steering wheel must be turned to full left-hand and full righthand lock with the engine running. This allows the dynamic stability control system to calibrate the steering wheel position. Failure to follow this instruction will result in a variety of instrument cluster warning lights being illuminated.

NOTE: If there is insufficient capacity in the battery to disarm the alarm, the alarm may sound on connection of the battery - turning the ignition key to position II will disarm the alarm.

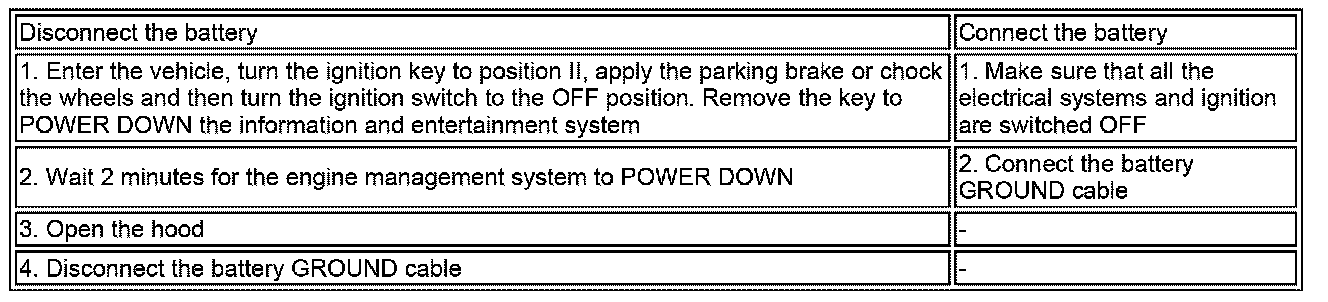

Procedure 1

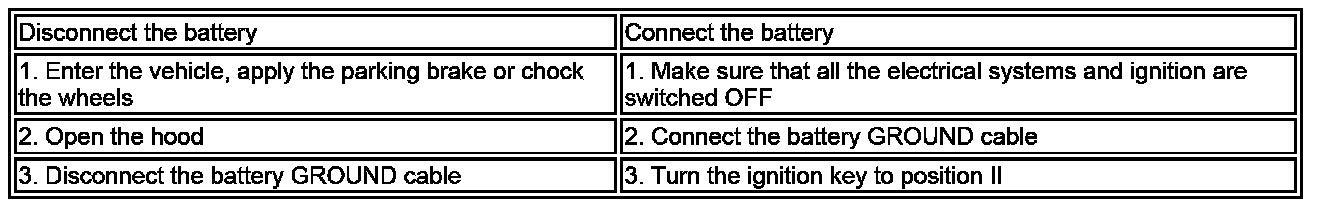

Procedure 2

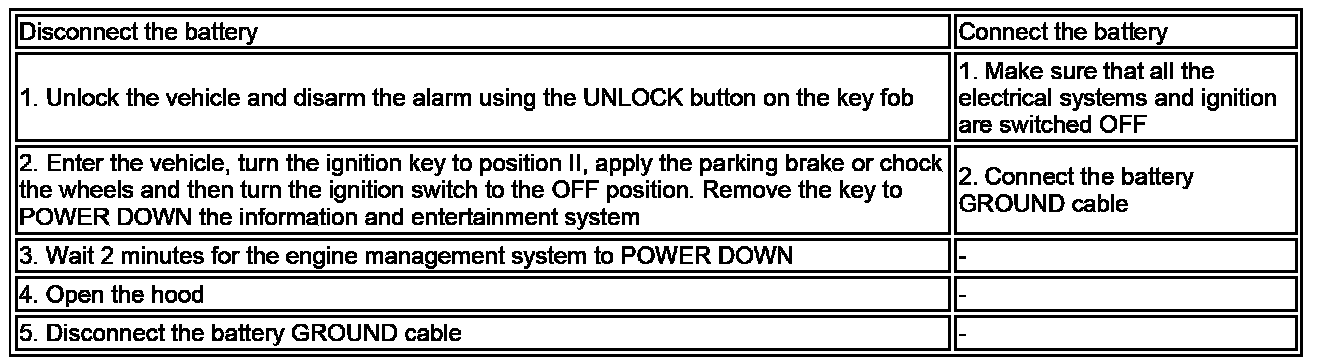

Procedure 3

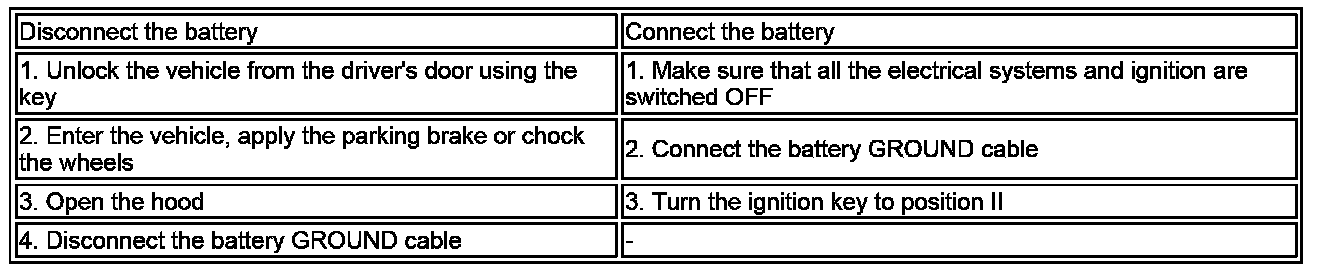

Procedure 4

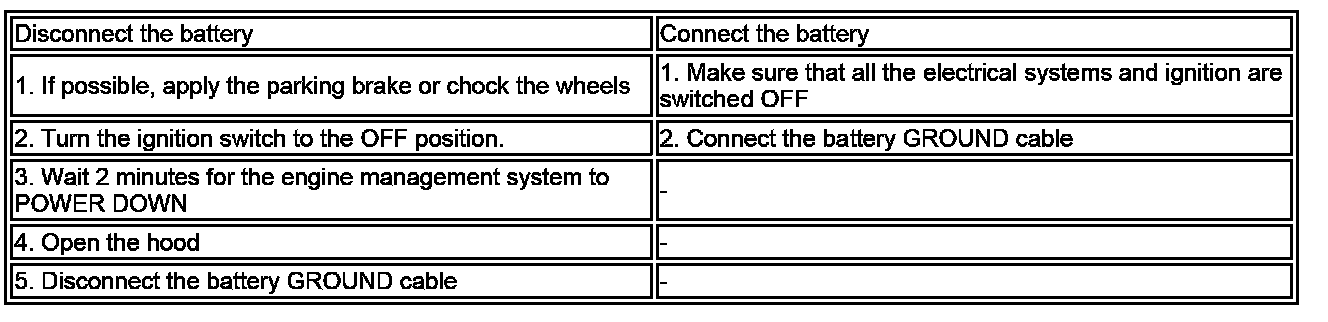

Procedure 5
