Battery Tray

Battery Tray

Removal
1. Remove the battery.

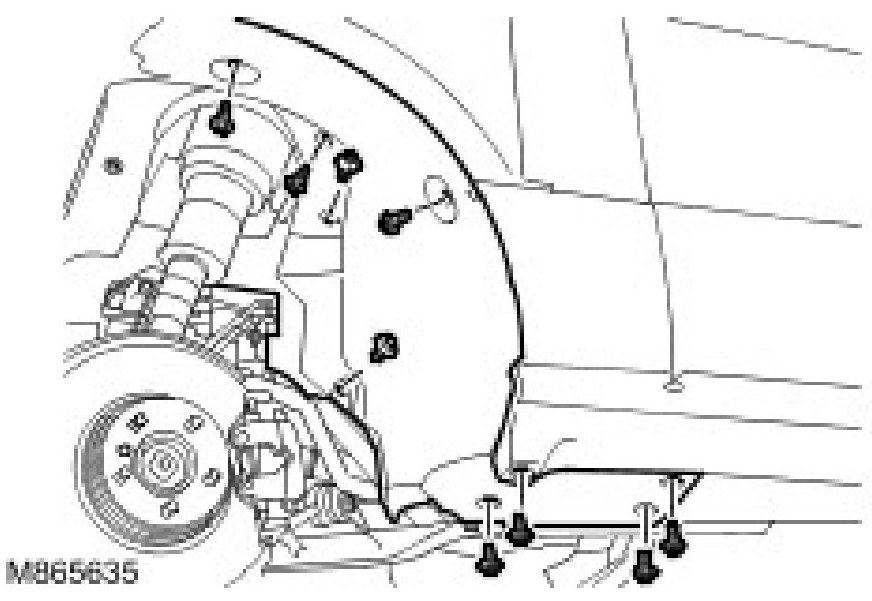

2. Release the fender splash shield.
^ Remove the 9 screws.

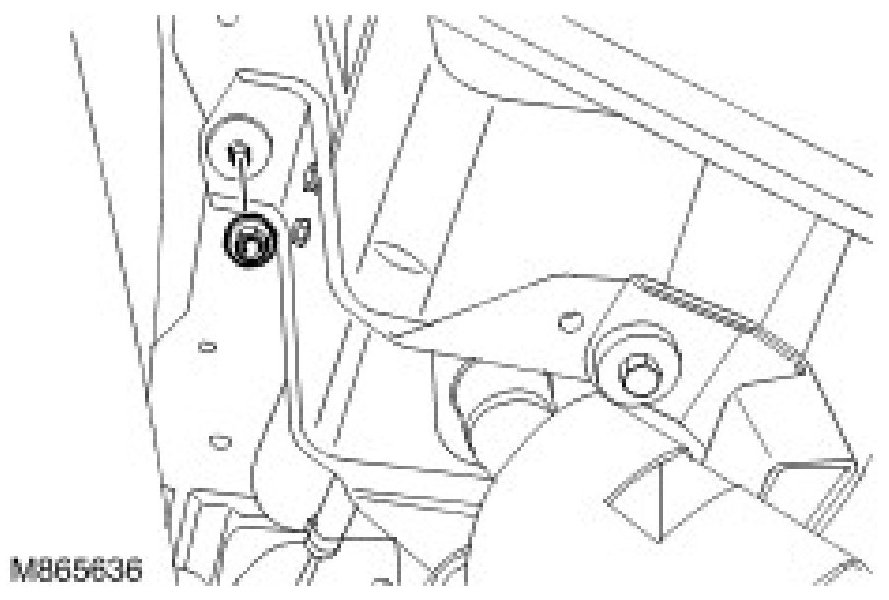

3. Release the fuel fired booster heater.
^ Remove the nut.

4. Remove the battery tray.
^ Remove the 4 bolts.

Installation
1. Install the battery tray.
^ Tighten the bolts to 10 Nm (7 ft. lbs.).

2. Secure the fuel fired booster heater.
^ Tighten the nut to 10 Nm (7 ft. lbs.).

3. Secure the fender splash shield.
^ Tighten the screws.

4. Install the battery.
