Steering Column Control Switch



Steering Column Control Switch

Removal
1. Release the steering column extension gaiter.
- Release the 6 clips.

NOTE: The steering wheel is shown removed for clarity.

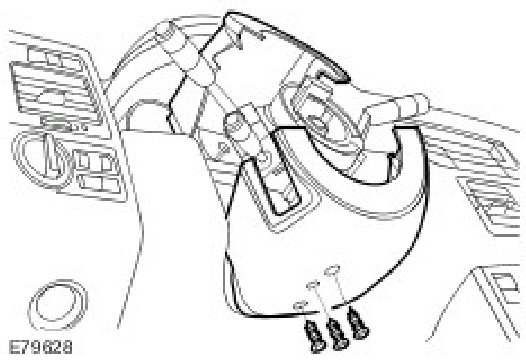

2. Remove the steering column lower shroud.
- Remove the 3 screws.







3. Remove the steering column upper shroud.

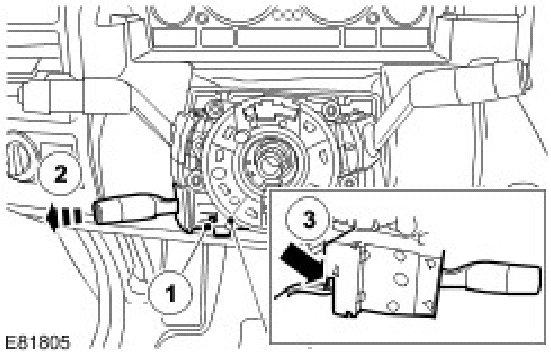

4. Remove the steering column control switch.
1. Carefully release the clip.
2. Release the steering column control switch.
3. Disconnect the electrical connector.







Installation
1. Install the steering column control switch.
- Connect the electrical connector.

2. Install the steering column upper shroud.
3. Install the steering column lower shroud.
- Install the 3 screws.

4. Attach the steering column extension gaiter.
