Manifold Pressure/Vacuum Sensor: Service and Repair



Manifold Absolute Pressure (MAP) Sensor

Removal
1. Disconnect the battery ground cable.
2. Remove the engine cover.
3. Remove the plenum chamber.

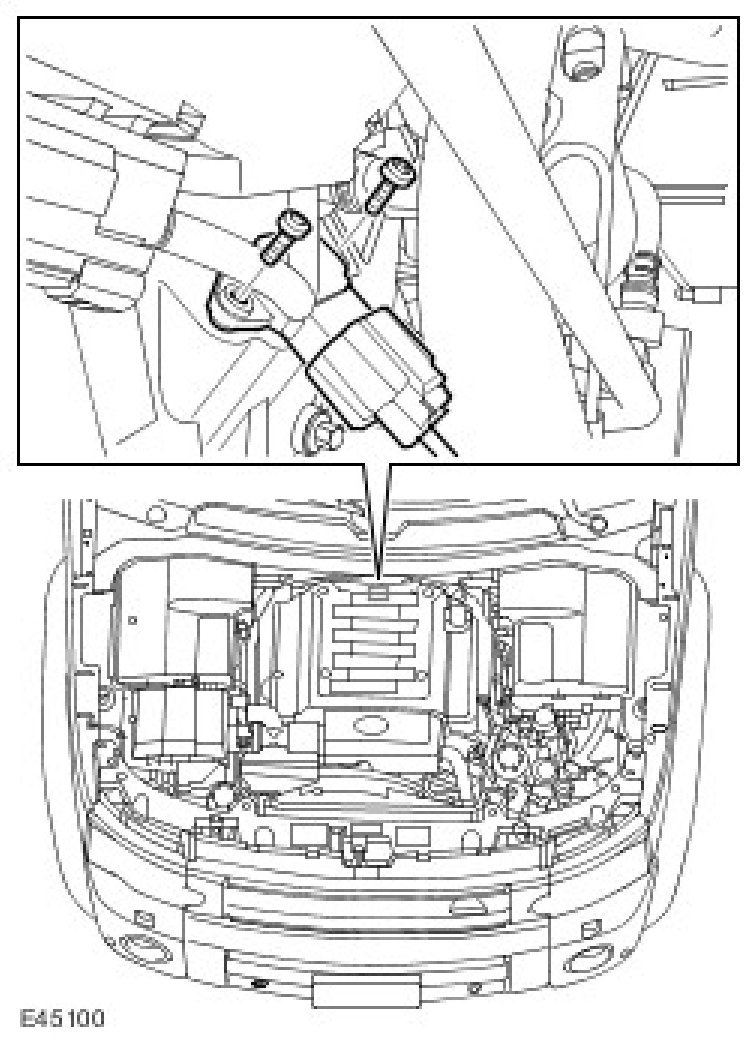

4. Remove the manifold absolute pressure (MAP) sensor.
^ Disconnect the electrical connector.
^ Remove the 2 Torx screws.





Installation
1. Install the MAP sensor.
^ Clean the component mating faces.
^ Tighten the Torx screws.

2. Install the plenum chamber.
3. Install the engine cover.
4. Connect the battery ground cable.

NOTE: For NAS vehicles only.

5. If required, carry out a short drive cycle.
