Manifold Pressure/Vacuum Sensor: Service and Repair
Manifold Absolute Pressure (MAP) Sensor
Service Repair No - 18.30.56Removal 1.
Disconnect the battery ground cable.
2.
Remove the engine cover.
3.

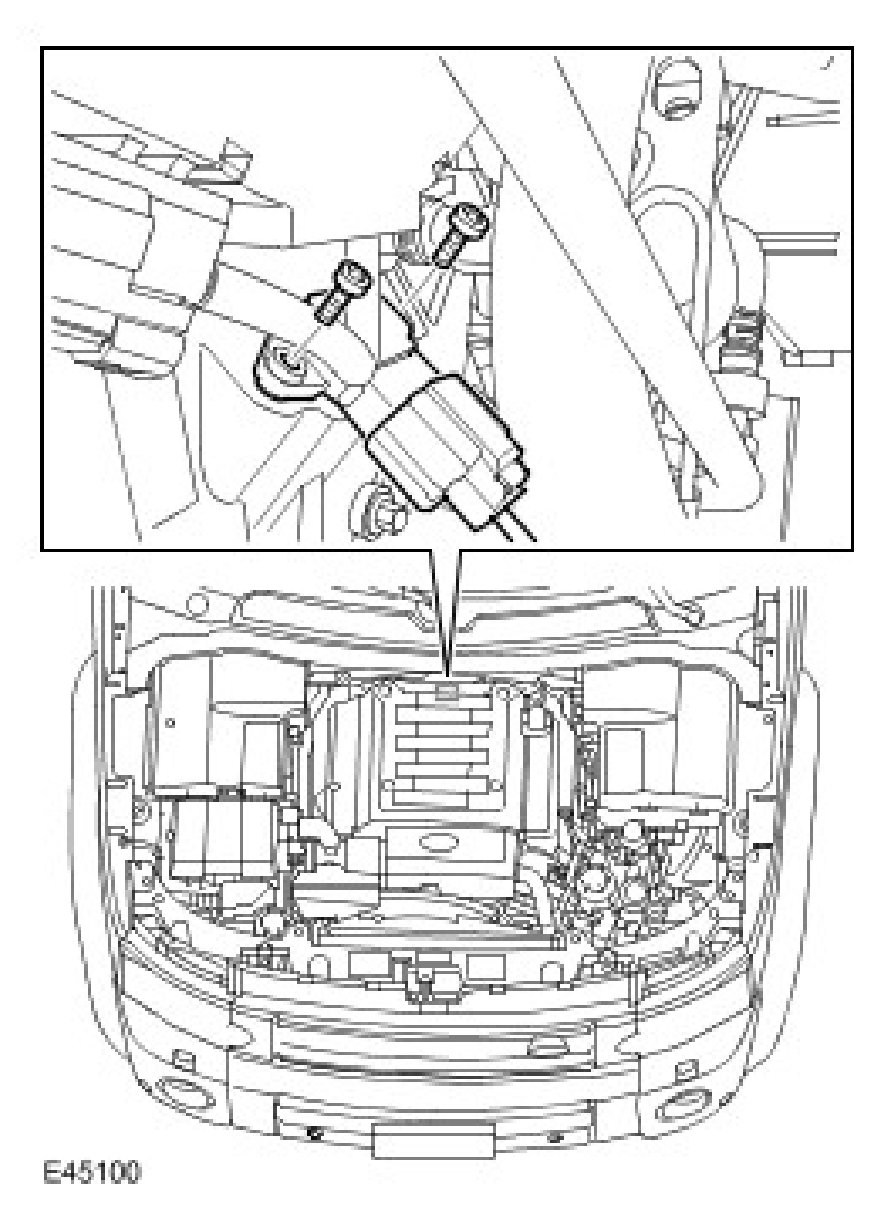

Remove the manifold absolute pressure (MAP) sensor.
^
Disconnect the electrical connector.
^
Remove the 2 Torx screws.
Installation 1.
To install, reverse the removal procedure.
^
Clean the component mating faces.
