Procedures

Accessory Drive Component Bracket Alignment

NOTE:
This procedure is to be used where an accessory drive belt alignment or accessory drive component bracket alignment is required.
1 Drain the cooling system.
For additional information, refer to Cooling System Draining, Filling and Bleeding Service and Repair
2 Remove the LH engine mount.
For additional information, refer to Engine Mount LH Engine Mount LH
3 Raise and support the transmission to gain access to the engine mount bracket adjuster.




4 Release the bracket.

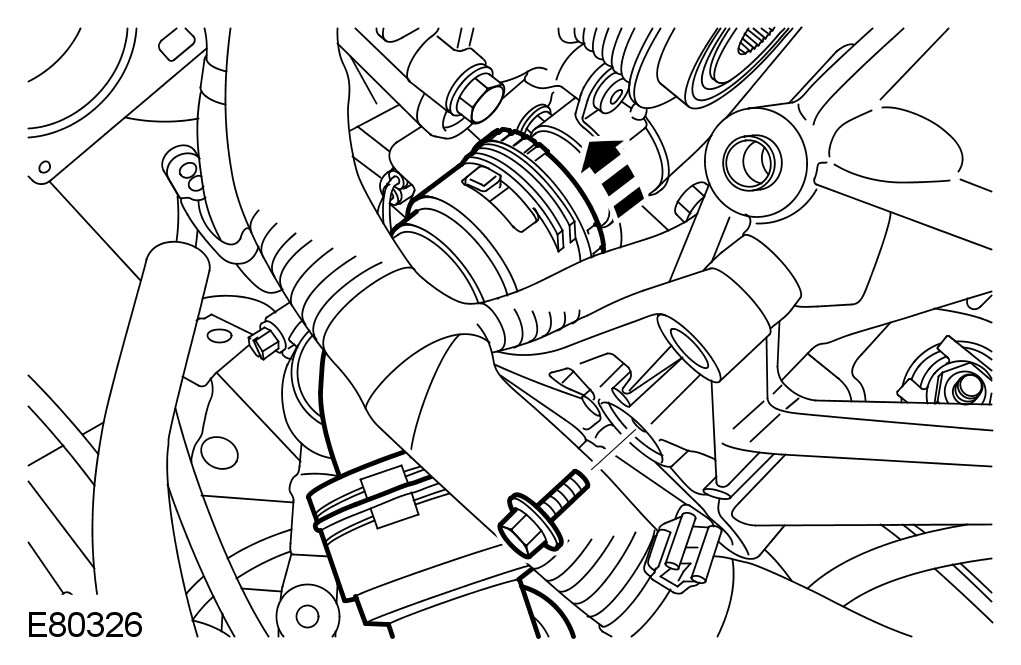

5 Disconnect the coolant hose, to enable removal of the
bolt.

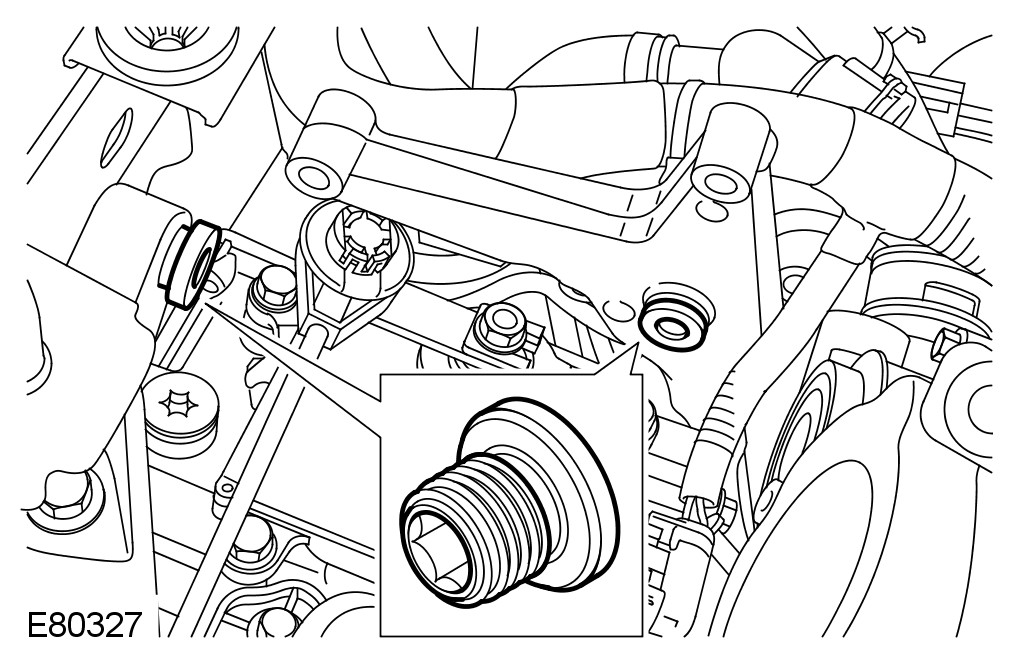

6 Back-off both adjusters.

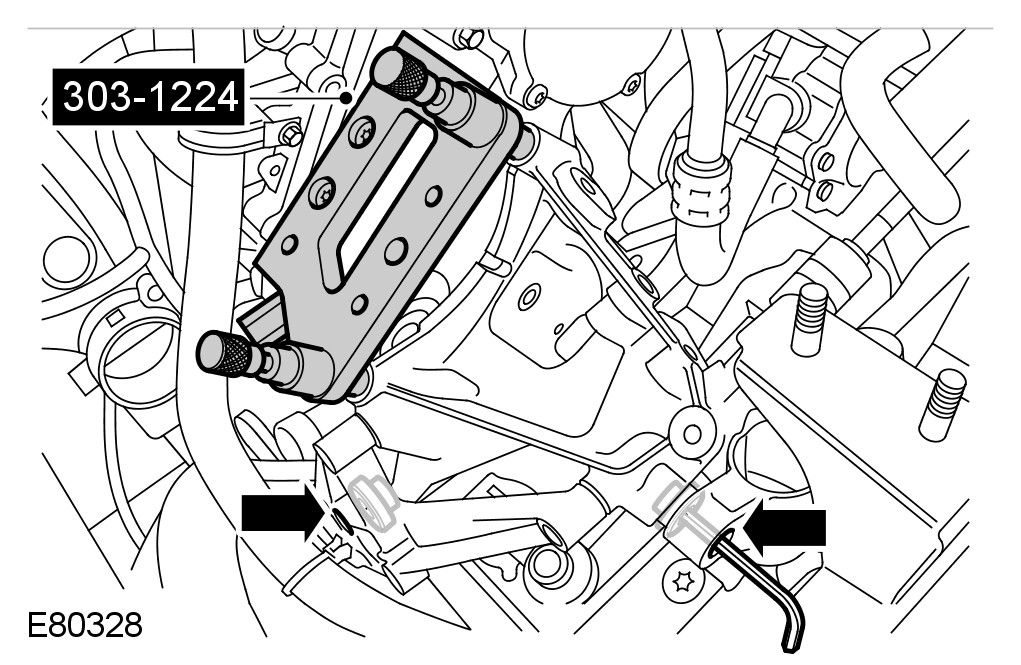

7 Check the alignment of the bracket using the special tool.

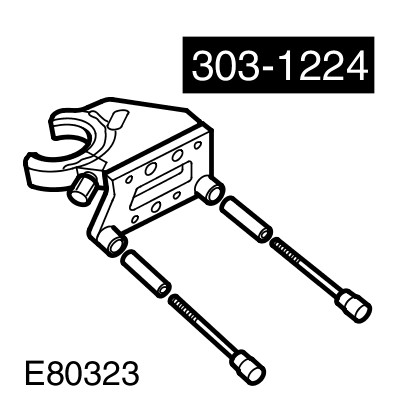

Special Service Tool




Aligner, A/C Bracket, 303-1224

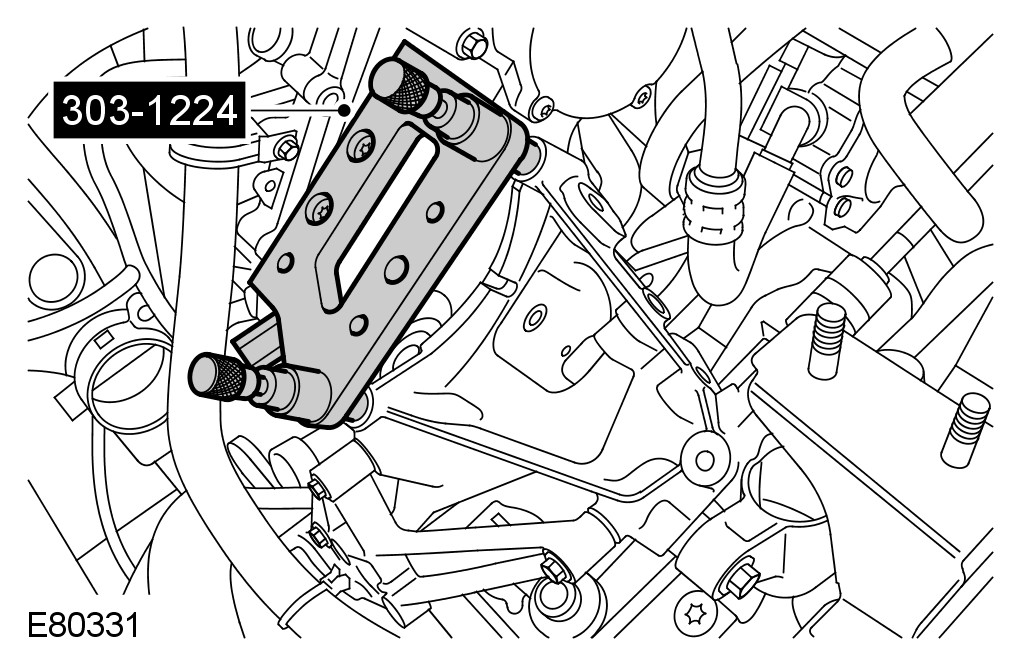

8 Set both adjusters as required.

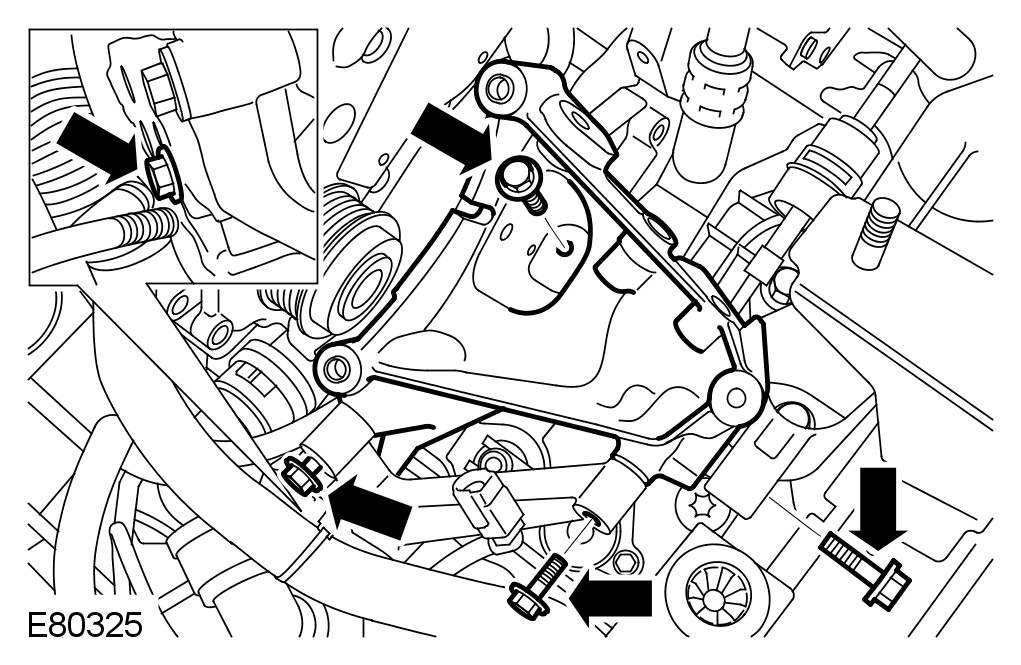

9 Install the A/C compressor mounting bracket.
M10: 45 Nm
M8: 25 Nm

10 Connect and secure the coolant hose.

11 Install the LH engine
mount.
For additional information, refer to Engine Mount LH Engine Mount LH

12 Refill the cooling system.
For additional information, refer to Cooling System Draining, Filling and Bleeding Service and Repair

13 Remove the special tool.
