Engine Oil: Service and Repair
Engine Oil Draining and Filling
NOTE:
Removal steps in this procedure may contain installation details.
WARNING: Make sure to support the vehicle with axle stands.
1 Raise and support the vehicle.
2 Remove the oil filter.
For additional information, refer to Oil Filter Element Service and Repair
3 Remove the engine undershield.
For additional information, refer to Engine Undershield Engine Undershield

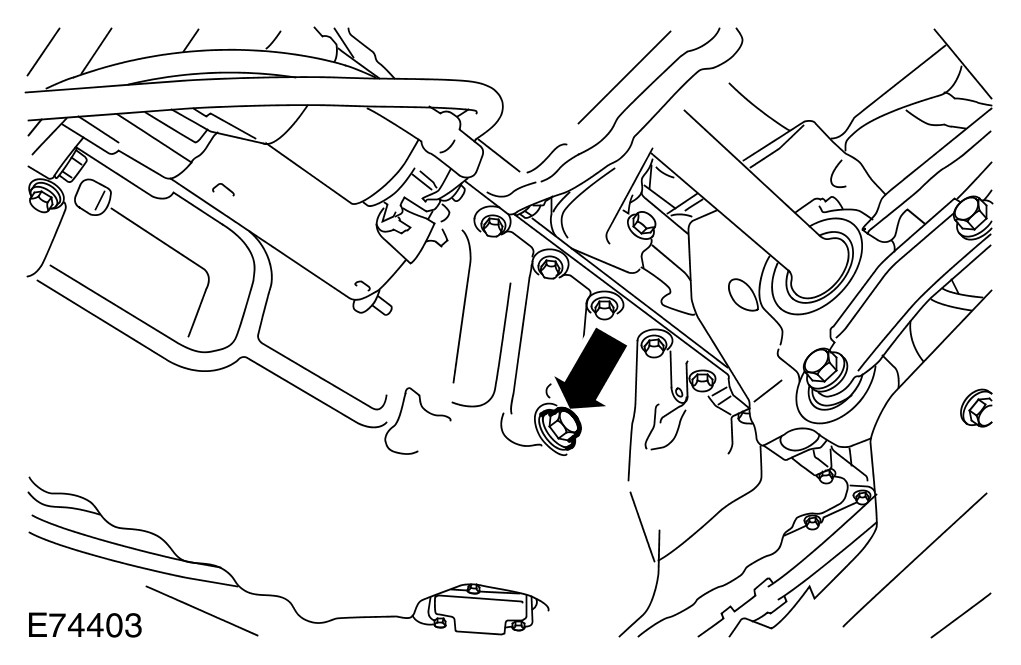

WARNING: Avoid skin contact with the specified material.
CAUTION: Hot fluid.
CAUTION: Be prepared to collect escaping fluids.
Torque to: 38 Nm
Remove and discard the sealing washer.
CAUTION: Make sure that the component is clean, free of foreign material and lubricant.
CAUTION: Make sure that new sealing washers are installed.
4 To install, reverse the removal procedure.
5 Check and top-up the engine oil.
