Leak Detection Pump: Service and Repair

Fuel Tank Leakage Monitoring Pump

Removal
1 Remove the spare wheel and tire.
2
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.




3 Remove the evaporative emissions canister.
- Remove the 2 bolts.
- Disconnect the 3 lines.
- Disconnect the electrical connector.




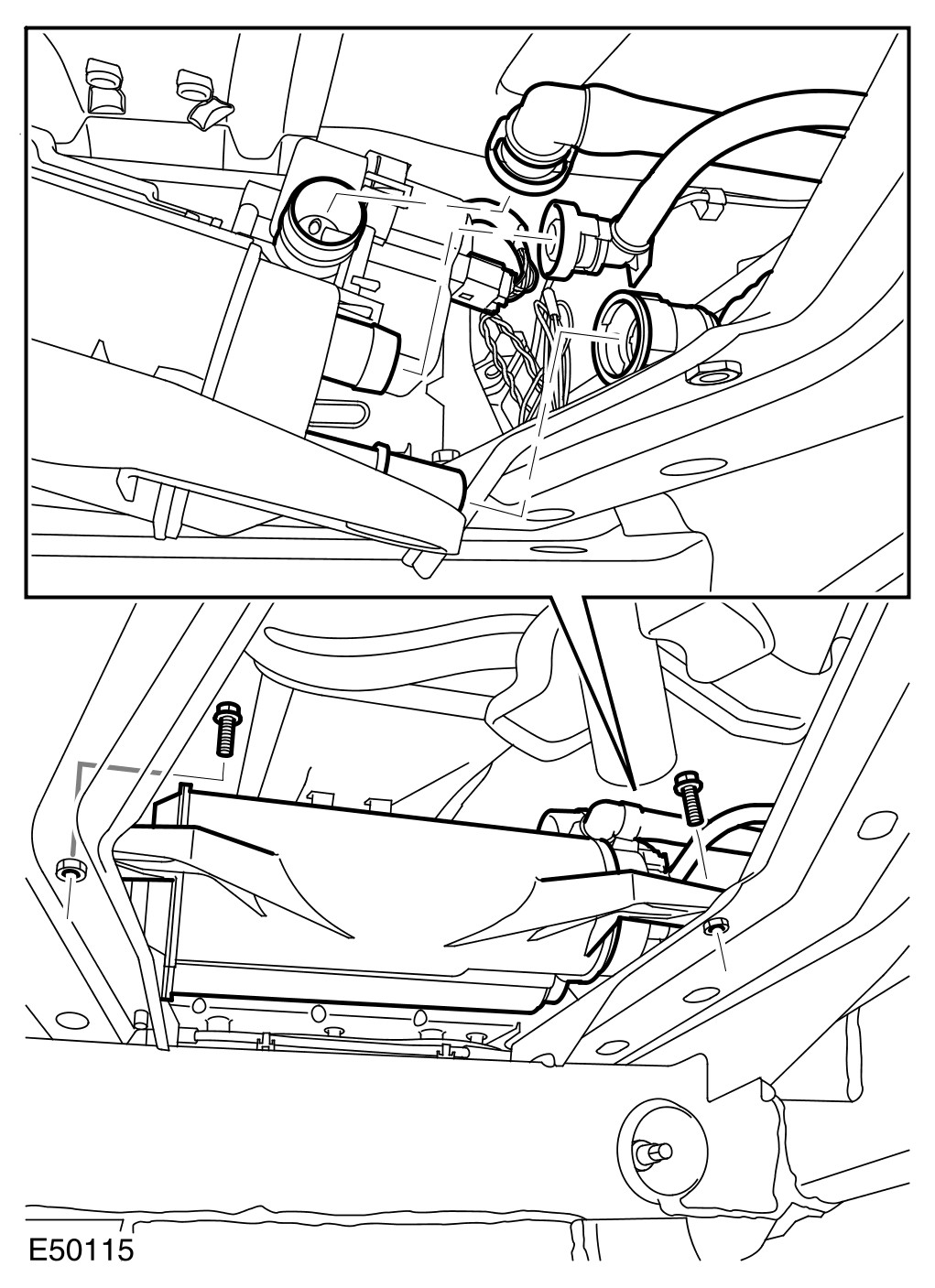

4 Remove the fuel tank leakage detection module.

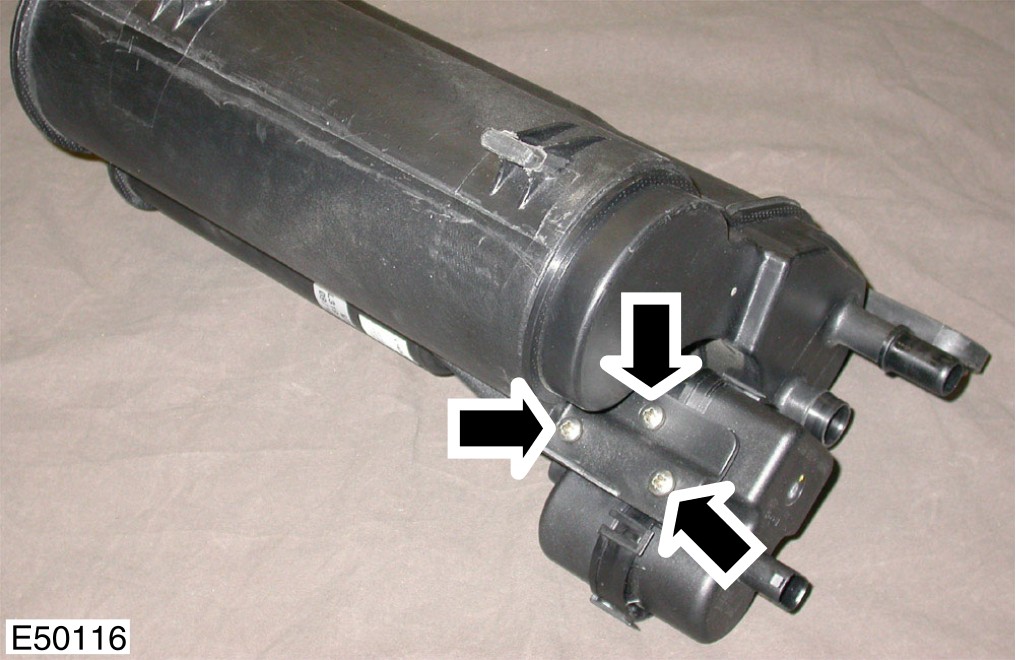

- Remove the 3 screws.

Installation
1 Install the fuel tank leakage detection module.
- Install the screws.
2 Install the evaporative emissions canister.
- Connect the electrical connector.
- Connect the lines.
- Tighten the bolts to 23 Nm (17 lb.ft).
3 Install the spare wheel and tire.
