Camshaft Position Sensor: Service and Repair






Camshaft Position (CMP) Sensor

Removal
1 Disconnect the battery ground cable. For additional information, refer to Specifications Service and Repair
2 Remove the engine cover. For additional information, refer to Engine Cover - 4.0L Service and Repair

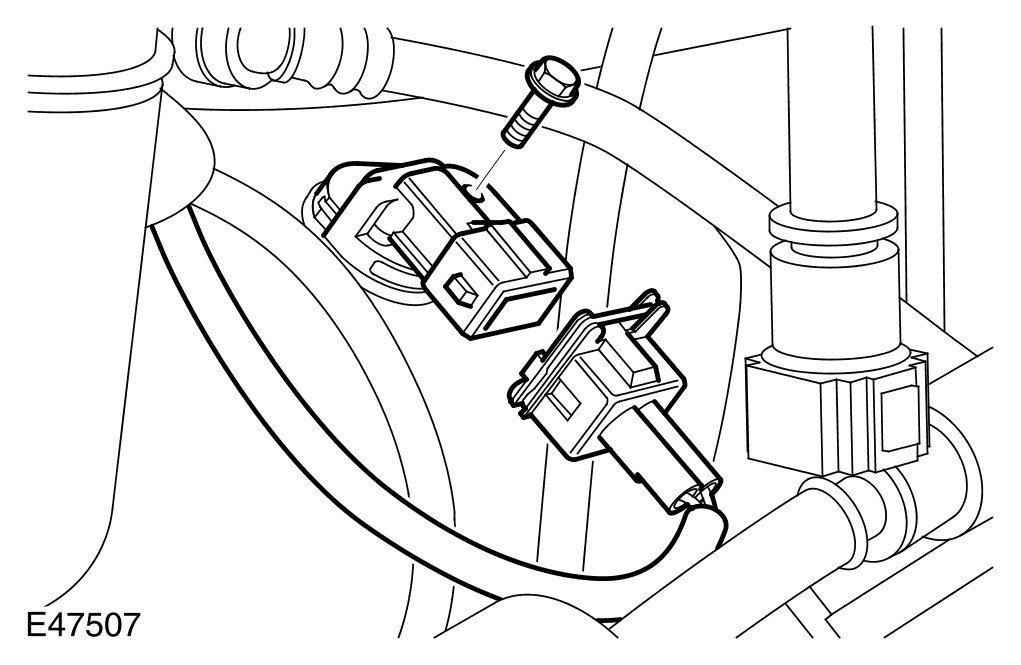

3 Remove the CMP sensor.
- Disconnect the electrical connector.
- Remove the bolt.

Installation
1 To install, reverse the removal procedure.
- Clean the component mating faces.
Lubricate a new O-ring seal with clean engine oil.
- Tighten the bolt to 6 Nm (4 lb.ft)
