Ignition Coil: Service and Repair






Ignition Coil

Removal

NOTE:
Note: Ignition coils 2 ,3, 5 & 6 have harness retaining clips that need to be detached before removal.
1 Disconnect the battery ground cable. For additional information, refer to Specifications Service and Repair
2 Remove the engine cover. For additional information, refer to Engine Cover - 4.0L Service and Repair
3 Disconnect the ignition lead from the coil.

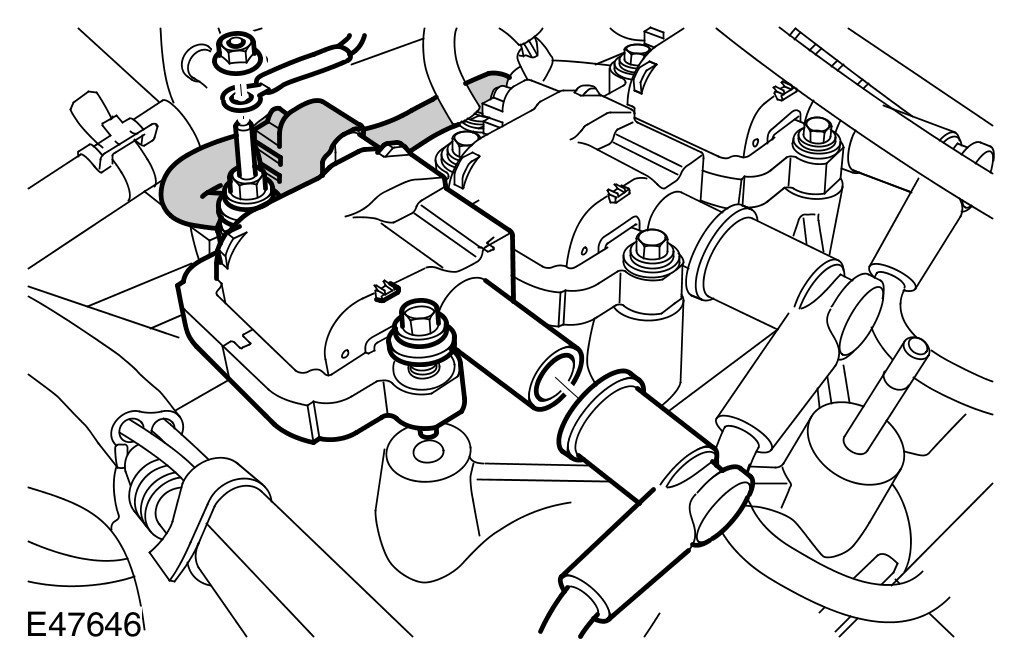

4 Remove the ignition coil.
- Disconnect the ignition coil electrical connector.
- Remove the nut.
- Remove the ground cable.
- Fully loosen the stud.
- Fully loosen the bolt.

Installation
1 To install, reverse the removal procedure.
- Tighten the bolt to 6 Nm (4 lb.ft).
- Tighten the stud to 6 Nm (4 lb.ft).
- Install the ground cable.
- Tighten the nut to 6 Nm (4 lb.ft).
- Connect the ignition coil electrical connector.
- Connect the ignition lead to the coil.
