System Specifications

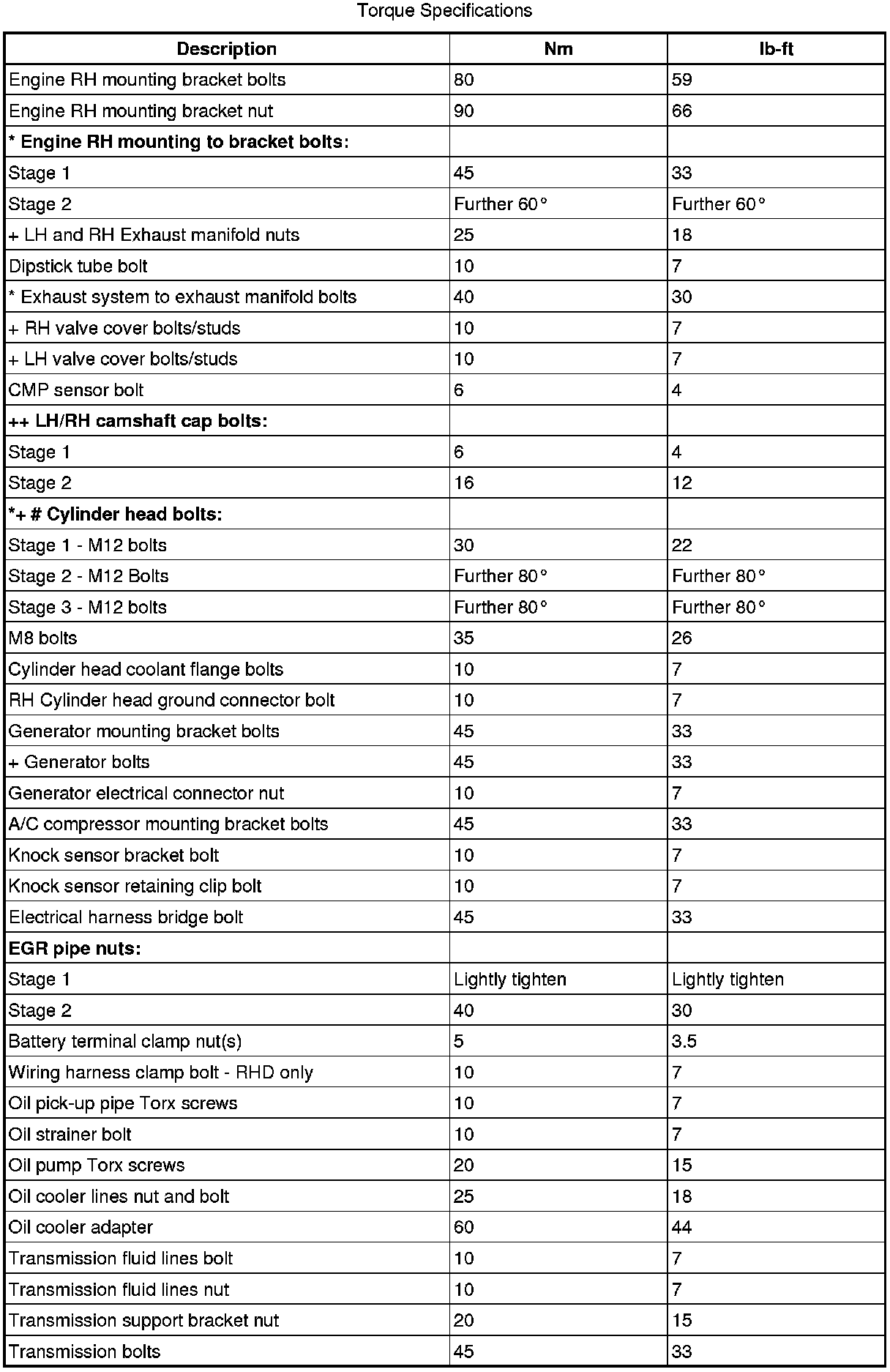

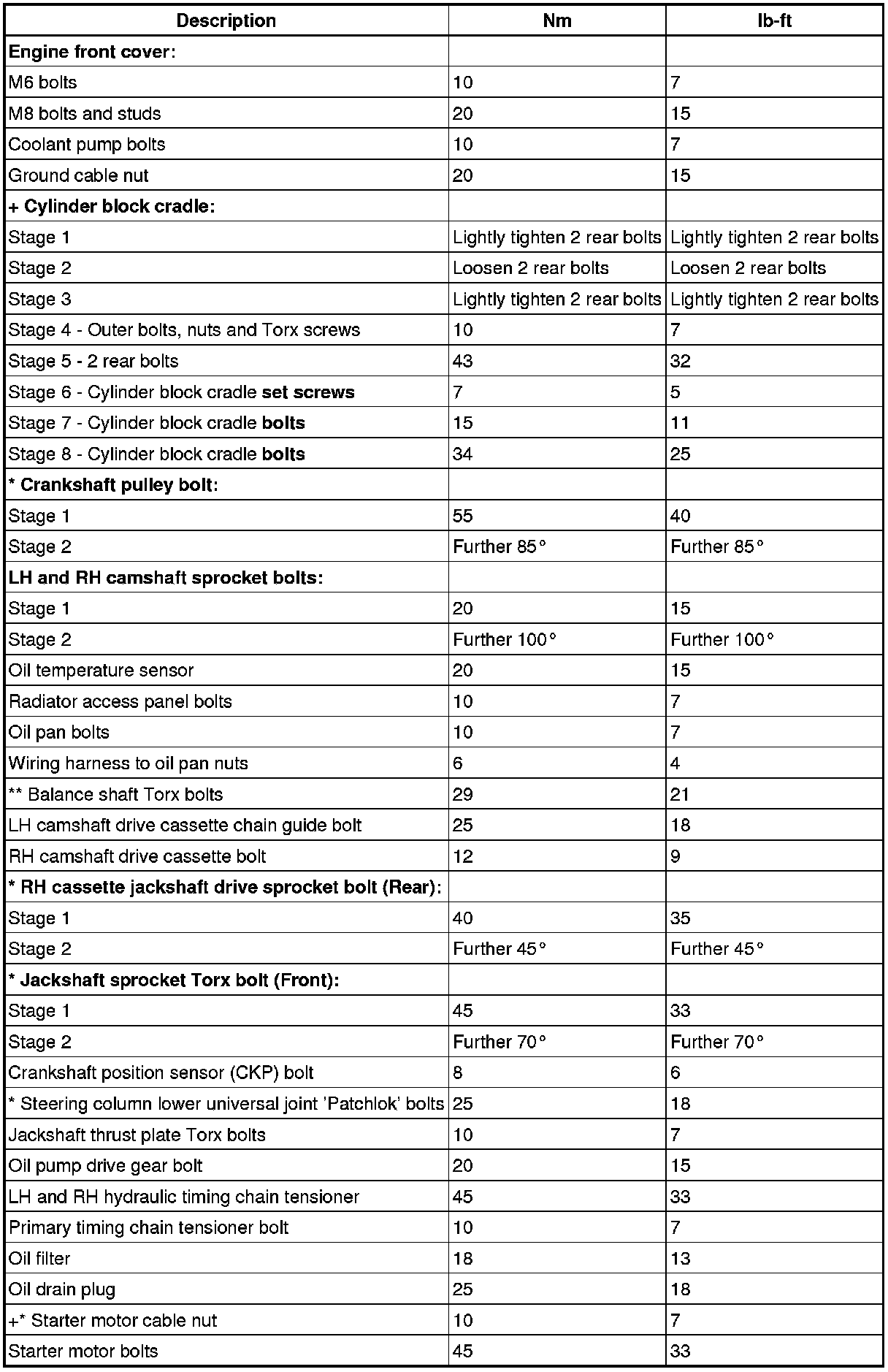

Specifications

* New nuts/bolt(s) must be fitted
** New Torx bolts must be fitted
+ Bolts/Torx bolts/studs must be tightened in sequence
++ Bolts must be tightened in a diagonal sequence commencing with the 2 centre bearing caps
# Lubricate threads of bolts with engine oil prior to fitting
+* Damage to internal components will result if this torque is exceeded
