Alternator: Service and Repair






Generator

Removal
1 Disconnect the battery ground cable. For additional information, refer to Specifications Service and Repair
2 Remove the accessory drive belt. For additional information, refer to Accessory Drive Belt Service and Repair

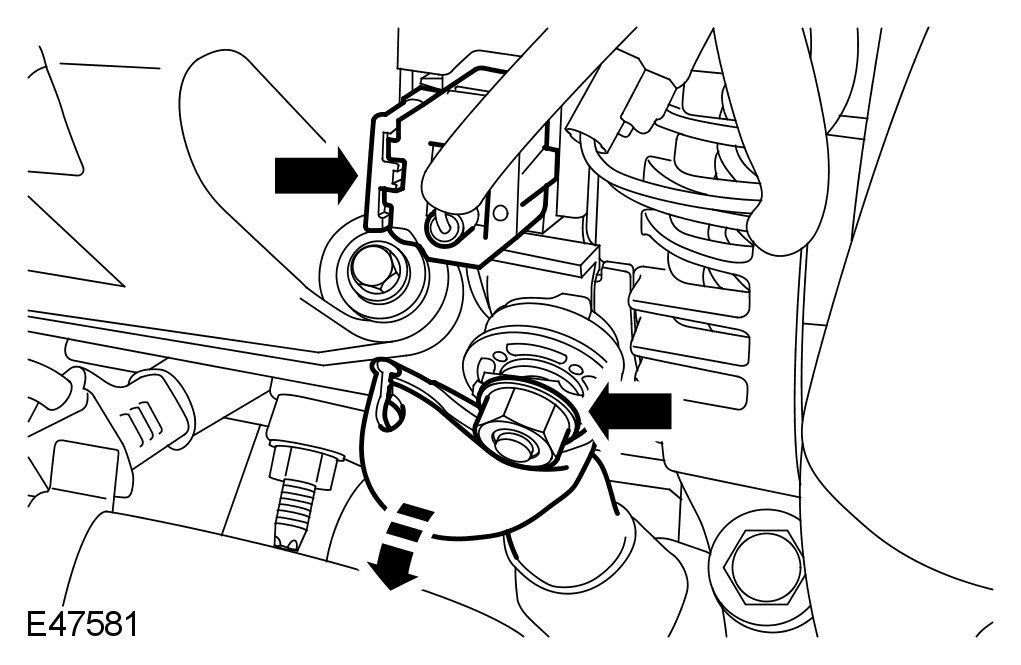

3 Disconnect the generator electrical connectors.
- Release the gaiter, remove the nut and disconnect the cable.
- Disconnect the electrical connector.

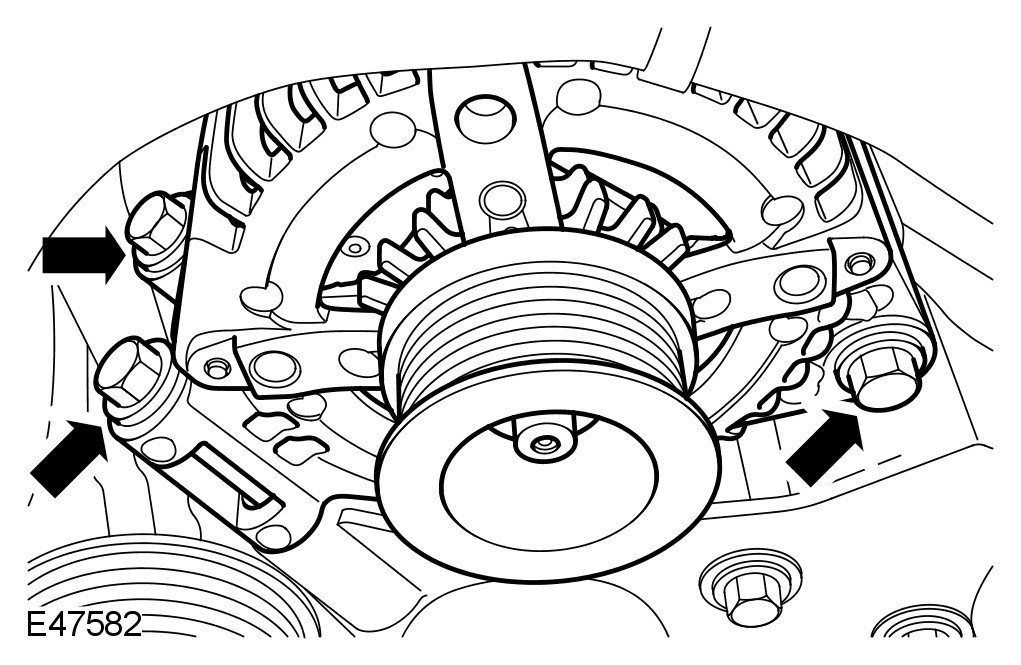

4 Remove the generator.
- Remove the 3 bolts.

Installation





1

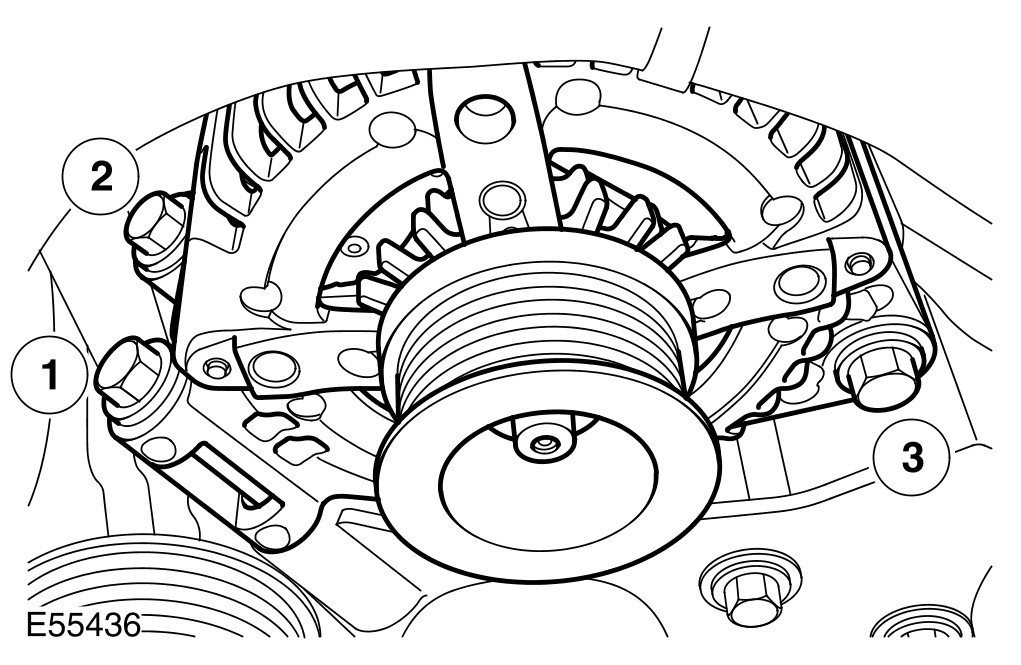

CAUTION: Tighten the bolts in the sequence shown.
Install the generator.
- Clean the component mating faces.
- Tighten the bolts to 45 Nm (33 lb.ft).
2 Connect the generator electrical connectors.
- Tighten the nut to 10 Nm (7 lb.ft).
- Connect and secure the electrical connector.
3 Install the accessory drive belt. For additional information, refer to Accessory Drive Belt Service and Repair
4 Connect the battery ground cable. For additional information, refer to Specifications Service and Repair
