Rear Cross-Member: Service and Repair






Transmission Support Crossmember

Removal

NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.

NOTE:
Removal steps in this procedure may contain installation details.
1
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

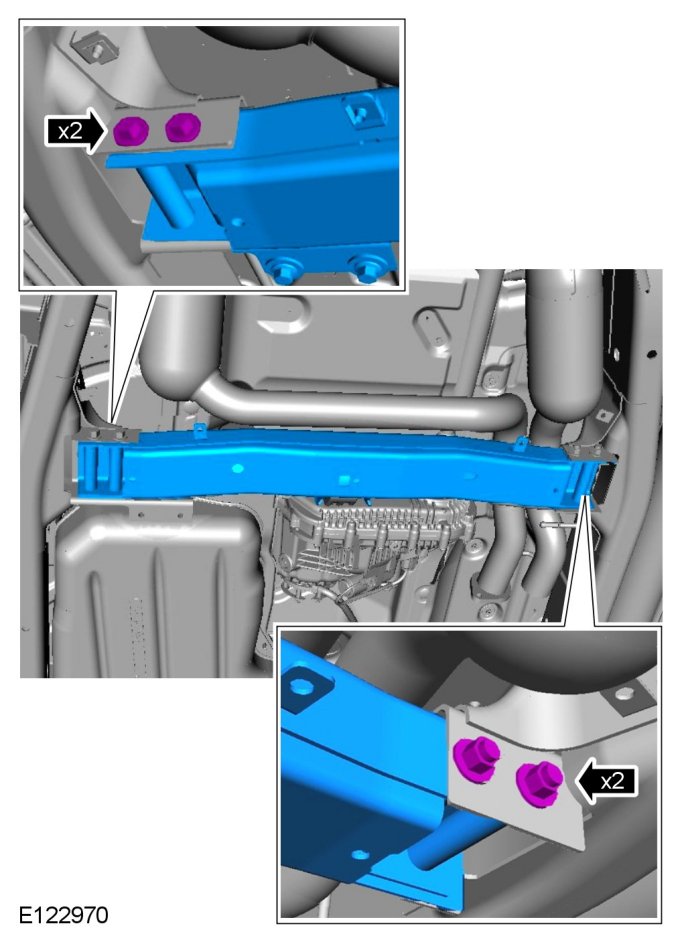

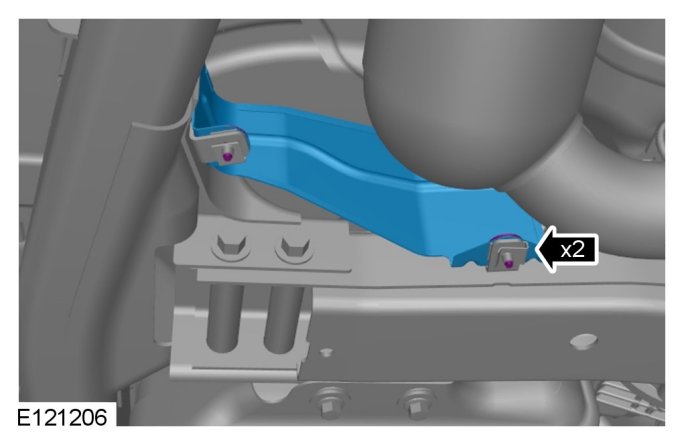

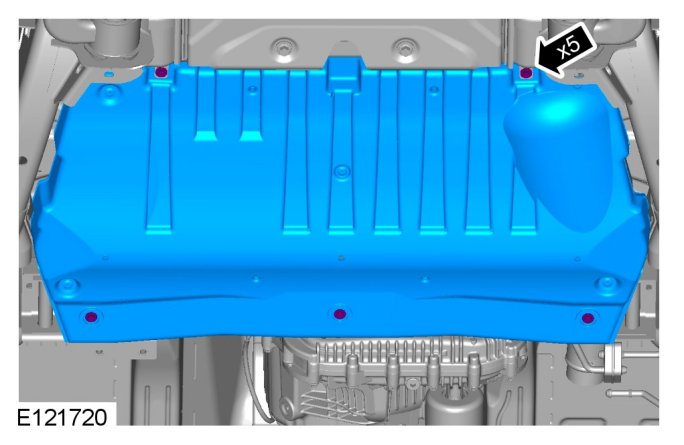

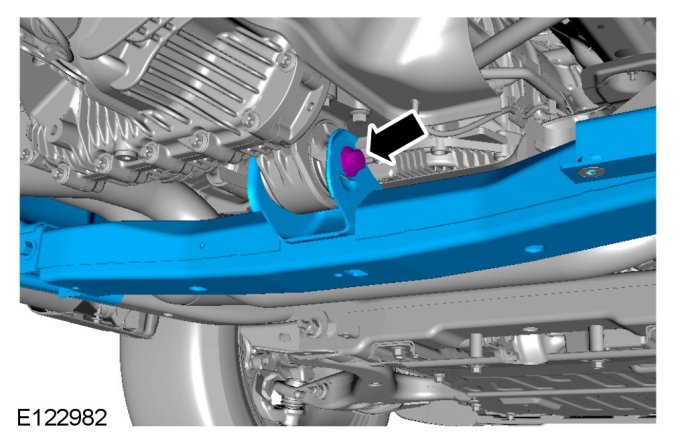

Raise and support the vehicle.




2




3




4




5

Installation





1 TORQUE: 115 Nm




2 TORQUE: 175 Nm




3 TORQUE: 10 Nm




4 TORQUE: 10 Nm
5 Lower the vehicle.
