Power Seat Control Module: Service and Repair





Driver Seat Module (DSM)

Removal

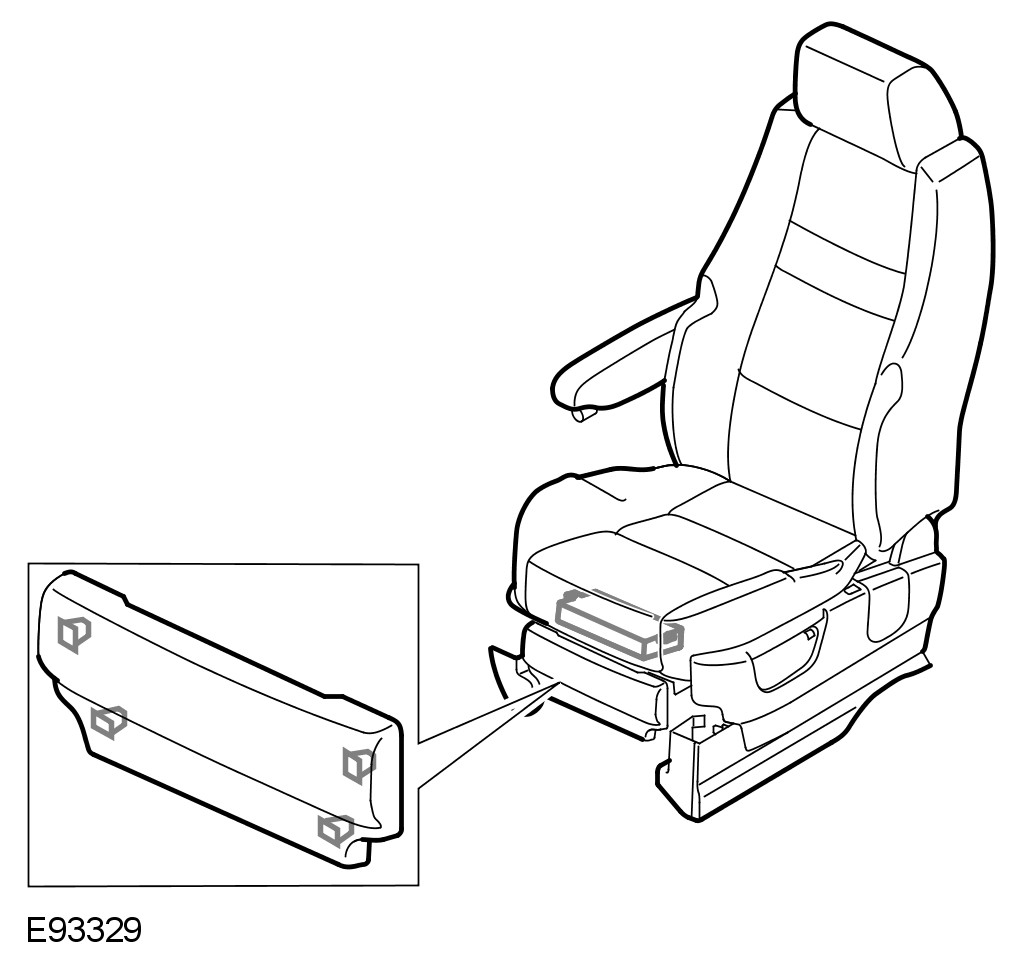

1 Remove the front seat cushion front access cover.
- Release the 4 clips.




2
CAUTION: Note of the routing of the wiring harnesses.
NOTE:
Raise the seat base for access.

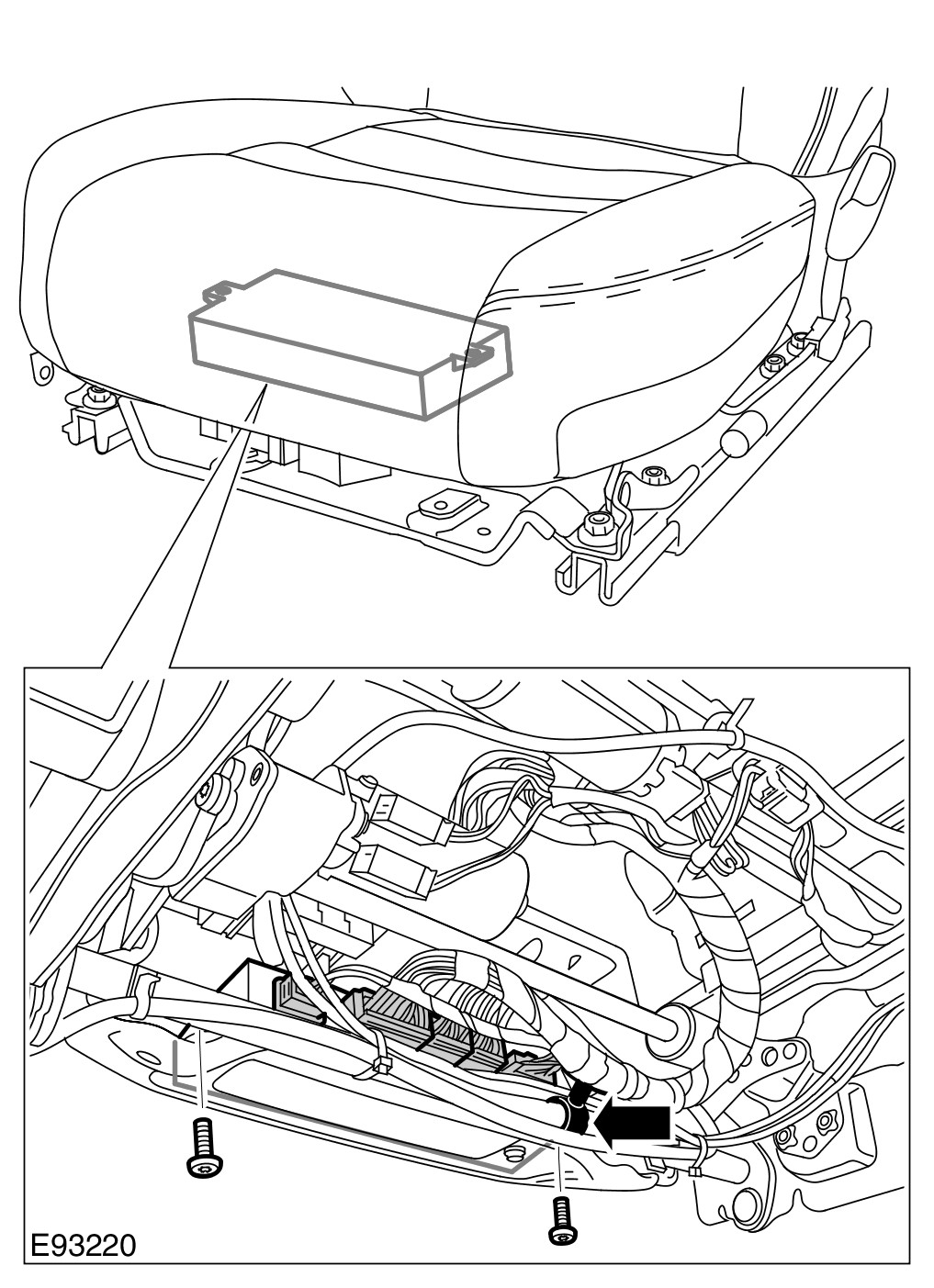

Remove the driver seat module.
- Remove the 2 Torx screws.
- Release the harness clip.
- Disconnect the 5 electrical connectors.

Installation
1
CAUTION: Make sure that the wiring harnesses are correctly routed.
Install the driver seat module.
- Connect the electrical connectors.
- Attach the wiring harness clip.
- Install and tighten the Torx screws.
2 Install the access cover.
- Secure in the 4 clips.
3 If a new module has been installed, carry out initialization.
- Using each adjustment switch in turn, move the seat fully in all directions.
