Passenger Compartment Fuse Box

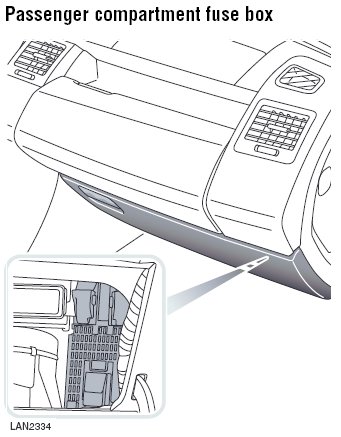

Passenger Compartment Fuse Box The passenger compartment fuse box is fitted behind the glove box. To access the fuses, open the glove box and then pinch the top of the support stays, and lower the glove box into the footwell.
A label on the rear of the glove box shows the circuits protected, the fuse values and their locations.

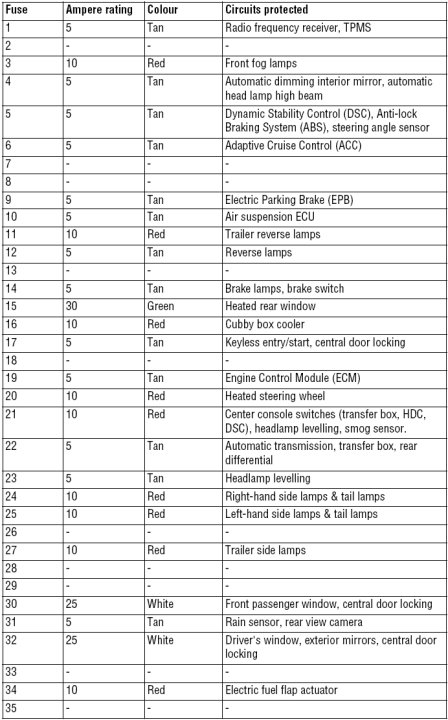

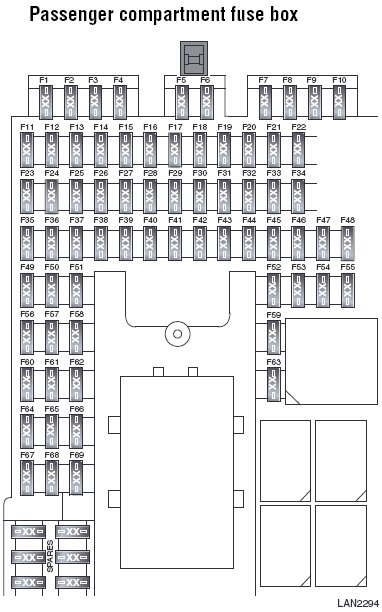

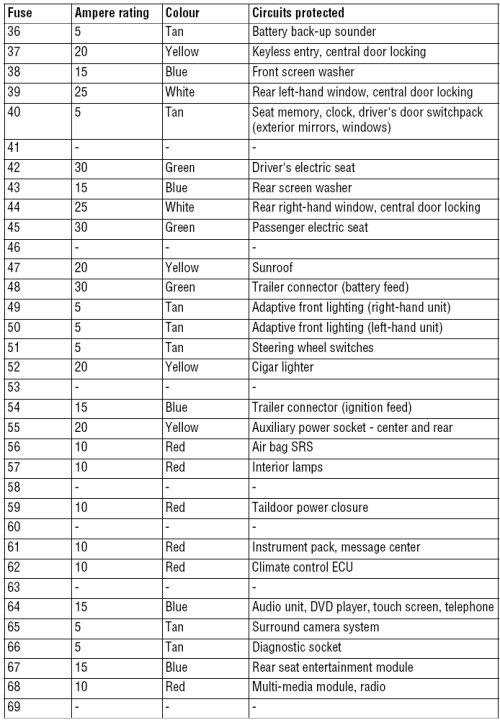

Fuse LayoutFuse Details
