Front Suspension

Specifications

Note: The first color indicates the fitted position of the spring on the vehicle i.e. front. The secondary color identifies the thickness of the isolator which is fitted to a particular spring to ensure that the vehicle ride height is maintained within specified limits. Replacement springs will be supplied with the appropriate isolator fitted.

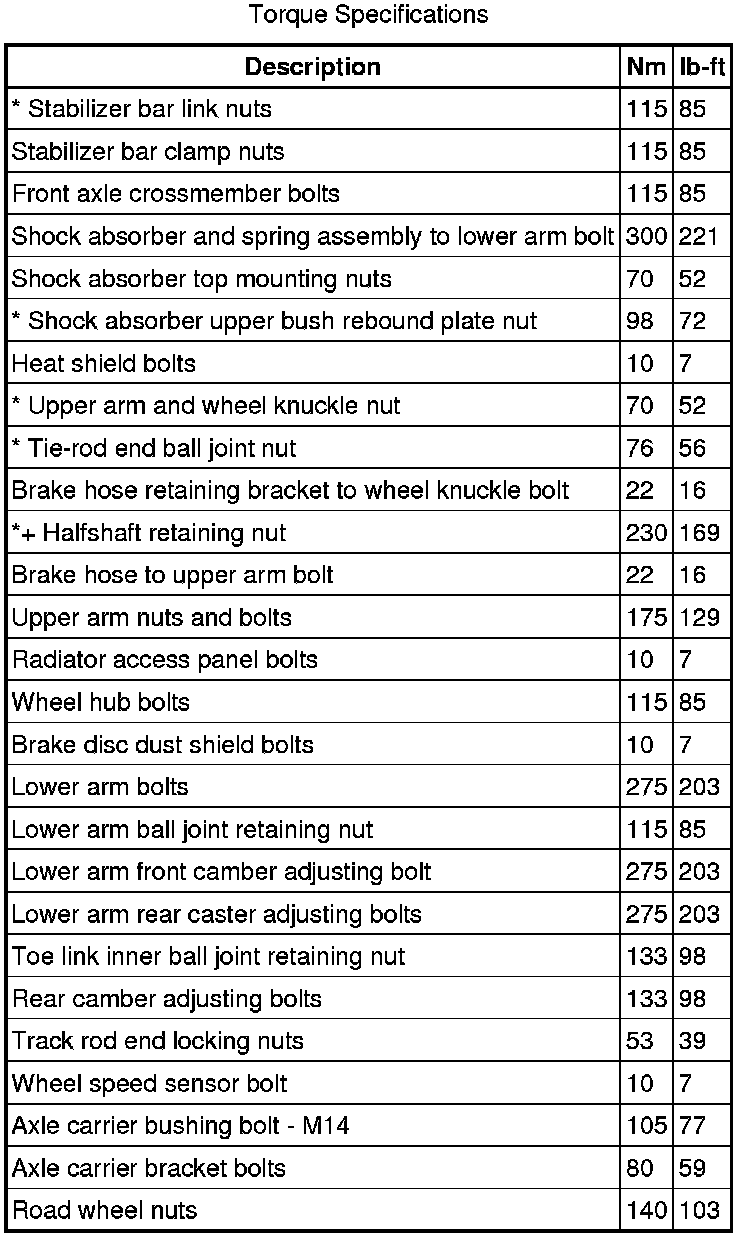

* New nut/bolts must be fitted
+ Stake nut on completion
