Auxiliary Climate Control Assembly





Auxiliary Climate Control Assembly

Removal
1 Remove the rear passenger entertainment control panel assembly. For additional information, refer to Rear Passenger Entertainment Control Panel




2
NOTE:
Floor console shown removed for clarity.

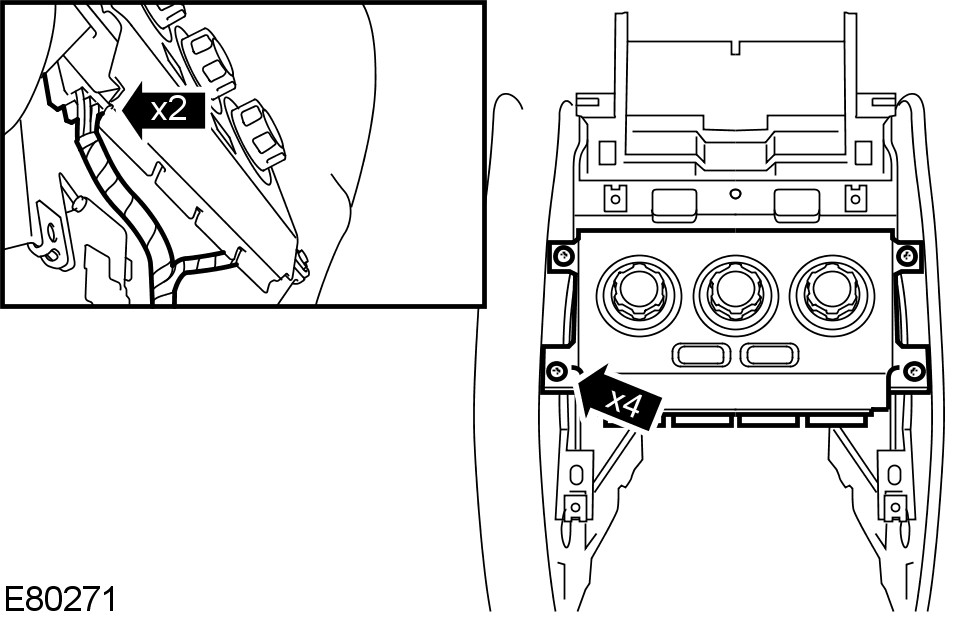

Remove the rear auxiliary climate control assembly.
- Remove the 4 screws.
- Disconnect the 2 electrical connectors.

Installation
1 Install the rear auxiliary climate control assembly.
- Connect the 2 electrical connectors.
- Install the 4 screws.
2 Install the rear passenger entertainment control panel assembly. For additional information, refer to Rear Passenger Entertainment Control Panel
