Symptom Related Diagnostic Procedures

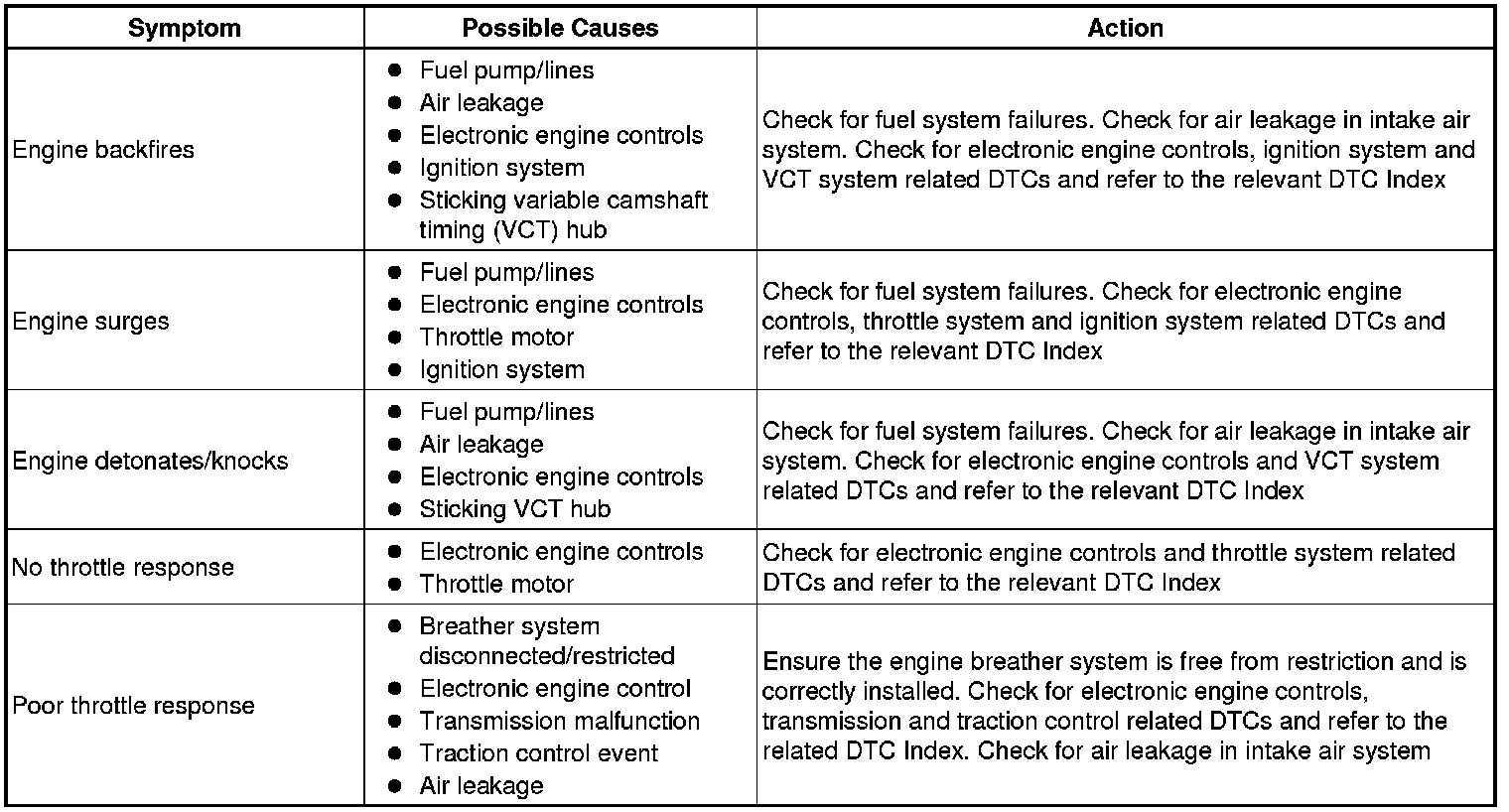

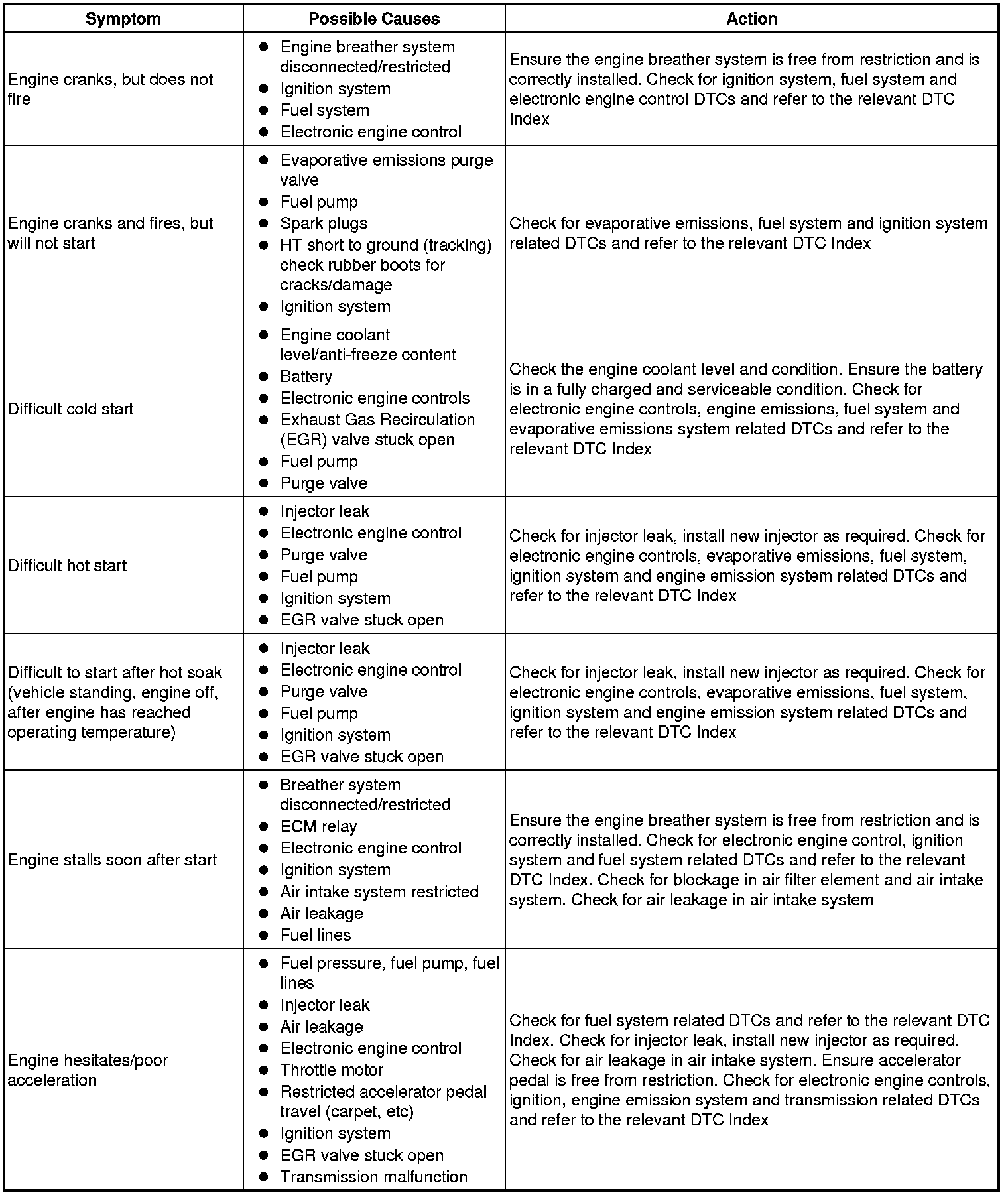

Symptom Chart

DTC Index
For a list of Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to A L L Diagnostic Trouble Codes ( DTC ) A L L Diagnostic Trouble Codes ( DTC ). For additional information, refer to Diagnostic Trouble Code (DTC) Index - 5.0L, DTC: Module Name: Engine Control Module.
