Differential Temperature Sensor/Switch: Service and Repair

Rear Axle Oil Temperature Sensor

Removal
1
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
2 Drain the differential lubricant. For additional information, refer to Differential Draining and Filling Rear Drive Axle/Differential




3 Disconnect the electrical connector.

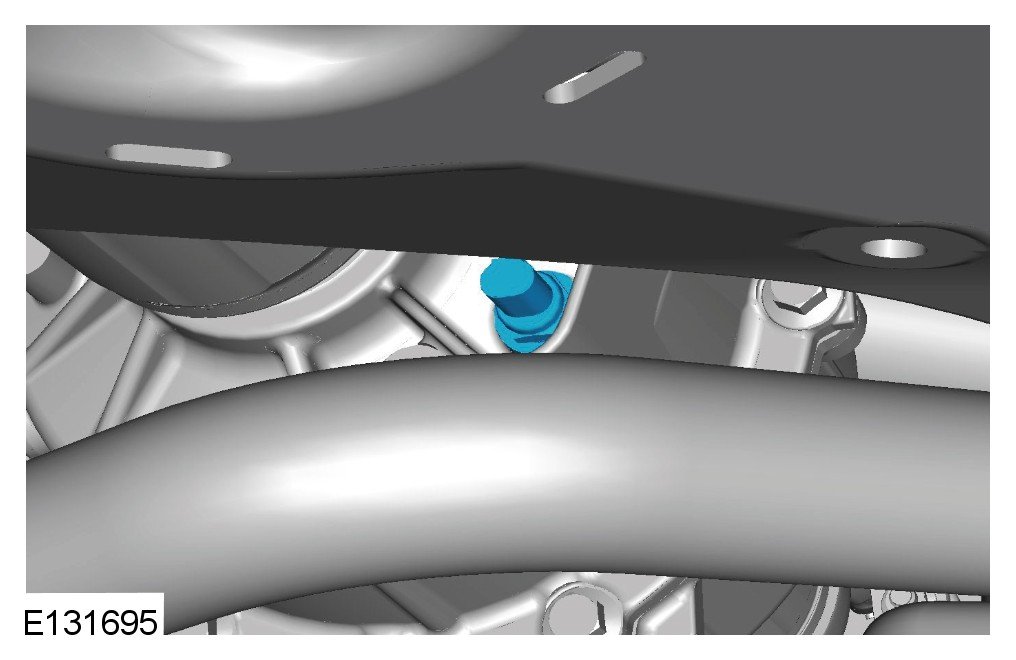

4 Remove the oil temperature sensor.

Installation
1 Clean the component mating faces.
2 Install the oil temperature sensor.
- Tighten to 22 Nm (16 lb.ft).
3 Connect the electrical connector.
4 Fill the differential with the correct amount of lubricant. For additional information, refer to Differential Draining and Filling Rear Drive Axle/Differential
