Gear Sensor/Switch: Service and Repair





High/Low Range Sensor

Removal
1
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.

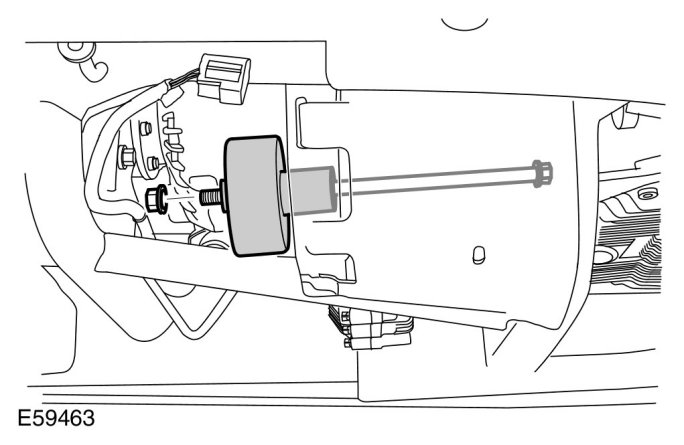

2 Remove the transmission support insulator nut, bolt and damper.
- Support the transmission.




3
CAUTION: To avoid damage to the joints or gaiters, do not allow the transmission to hang on the driveshafts.
CAUTION: Discard the bolts.

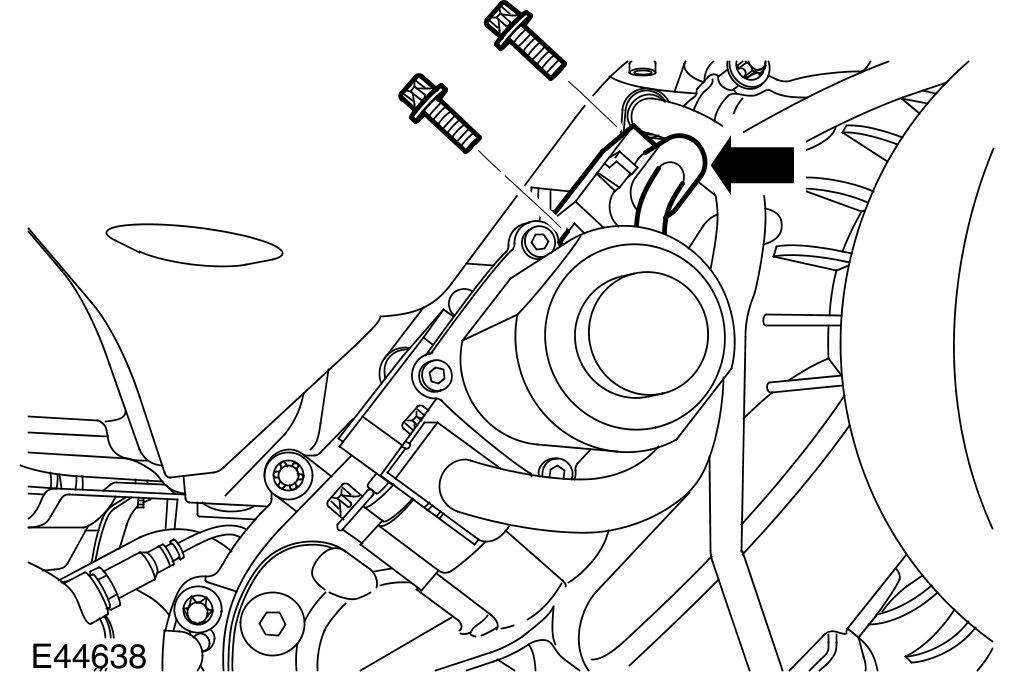

Remove the high/low range sensor.
- Lower the transmission.
- Disconnect the electrical connector.
- Remove the 2 Torx bolts.

Installation
1
CAUTION: Make sure that new bolts are installed.
Install the high/low range sensor.
- Clean the components.
- Tighten the Torx bolts to 6 Nm (4 lb.ft).
- Connect the electrical connector.
2 Install the transmission support insulator nut, bolt and damper.
- Tighten the bolt to 115 Nm (85 lb.ft).
3 Calibrate a new high/low range sensor using the diagnostic tool.
