Rain Sensor: Service and Repair





Rain Sensor

Removal
1 Remove the interior rear view mirror. For additional information, refer to Interior Rear View Mirror Interior Rear View Mirror

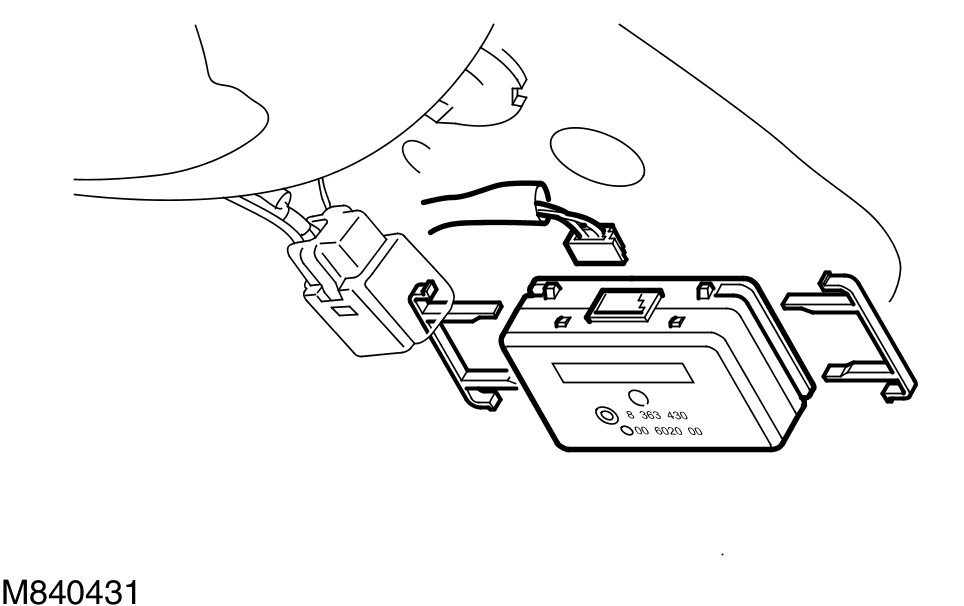

2 Remove the rain sensor.
- Release the 2 clips.

Installation
1 Install the rain sensor.
- Secure with the clips.
2 Install the interior rear view mirror. For additional information, refer to Interior Rear View Mirror Interior Rear View Mirror
3 Using the Land Rover approved diagnostic equipment, calibrate the new rain sensor.
