Tire Pressure Monitoring System Module

Tire Pressure Monitoring System Module

Removal

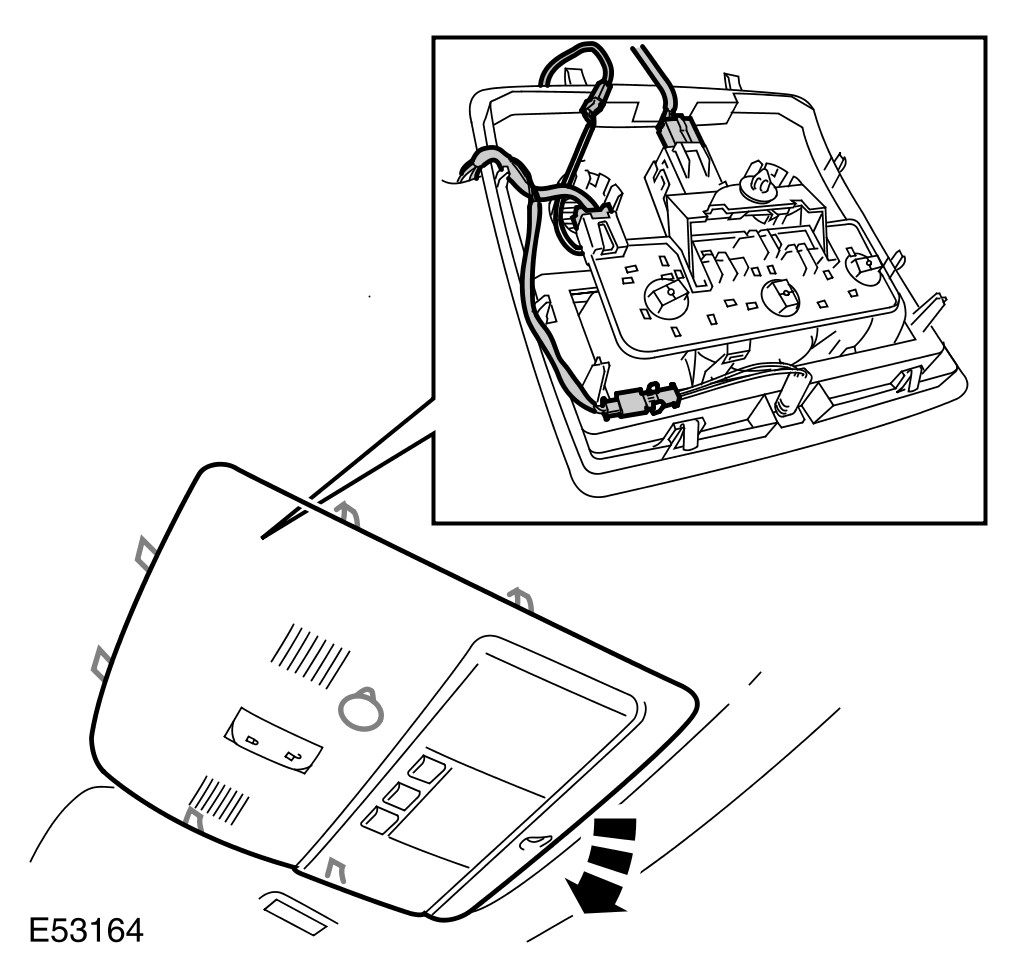

1 Remove the overhead console.

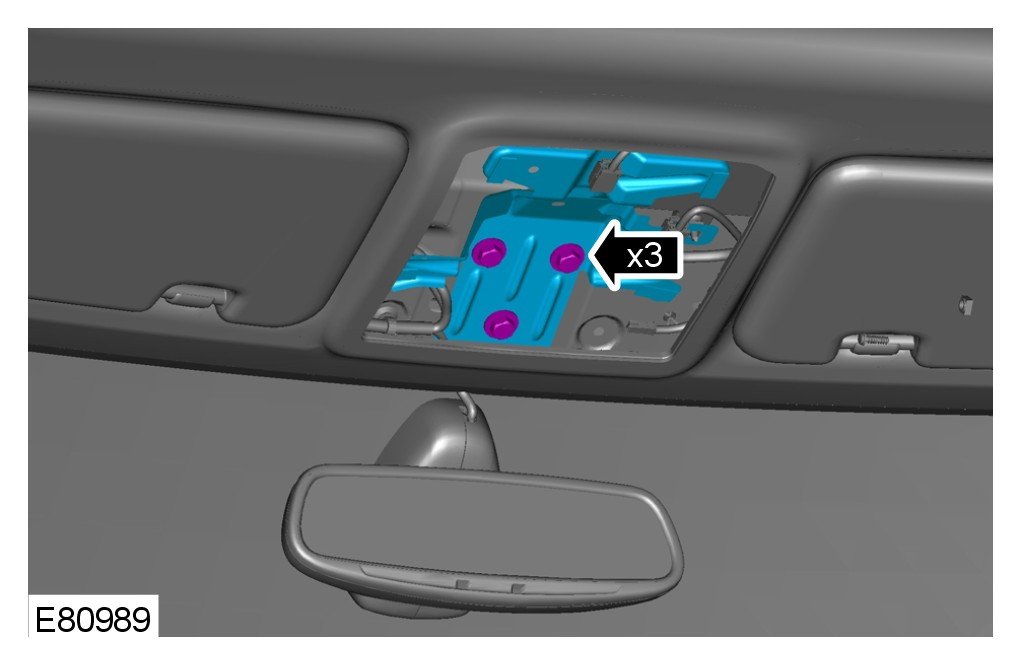

2 Remove the tire pressure monitoring module and bracket assembly.

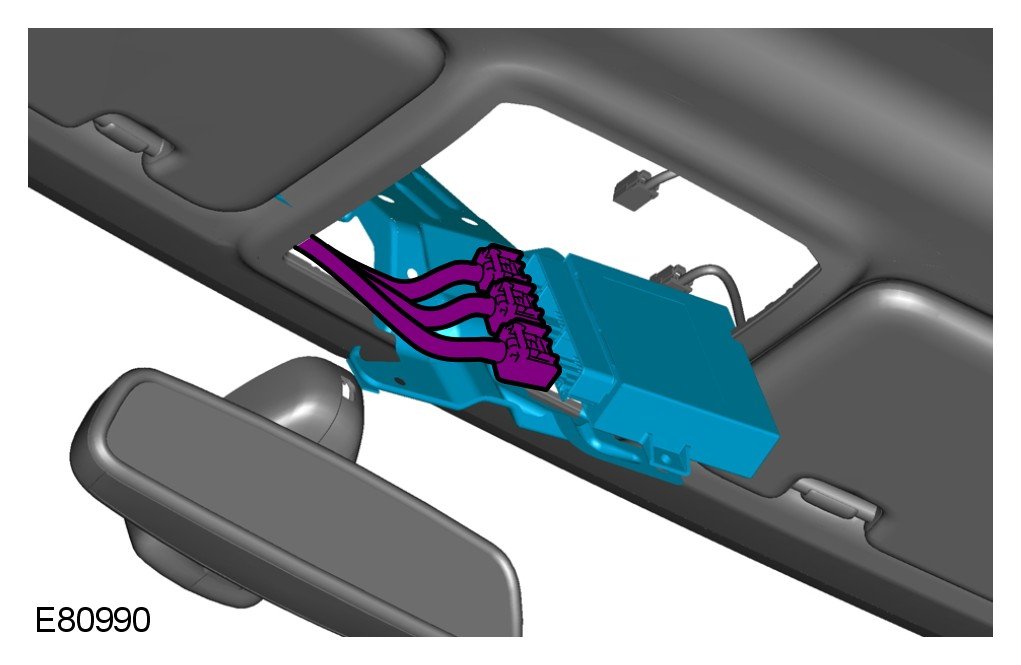

3 Disconnect the electrical connectors.




4
NOTE:
Do not disassemble further if the component is removed for access only.

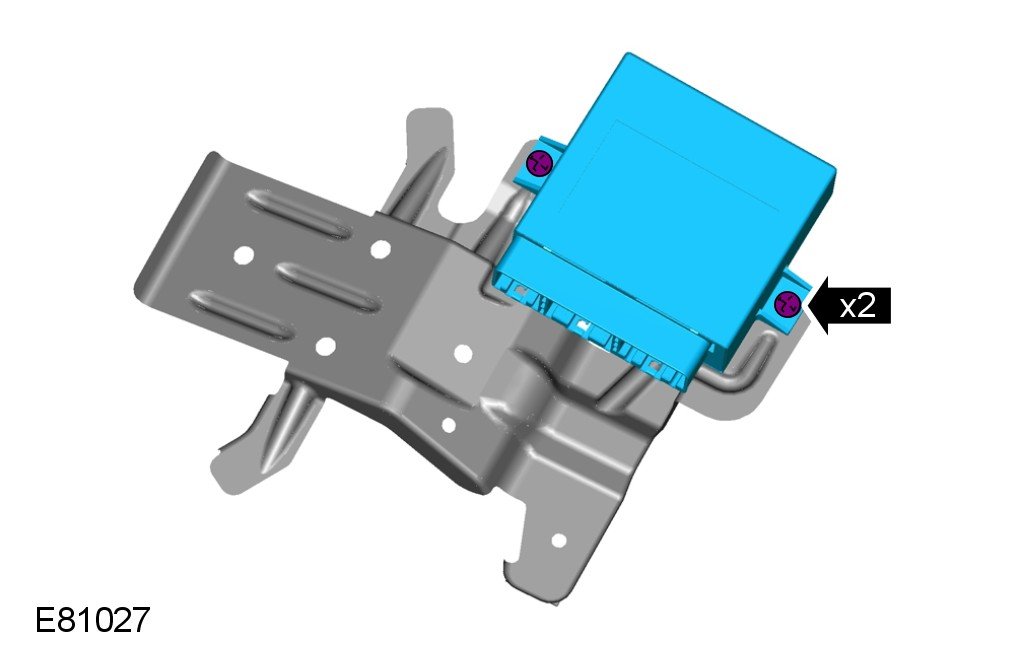

Remove the tire pressure monitoring module.

Installation
1 Install the tire pressure monitoring module.
2 Install the tire pressure monitoring module and bracket assembly.
- Install and tighten the bolts to 25 Nm (18 lb.ft).
3 Install the overhead console.
