Ignition Switch: Service and Repair





Ignition Switch

Removal
1 Fully extend the steering column for access.




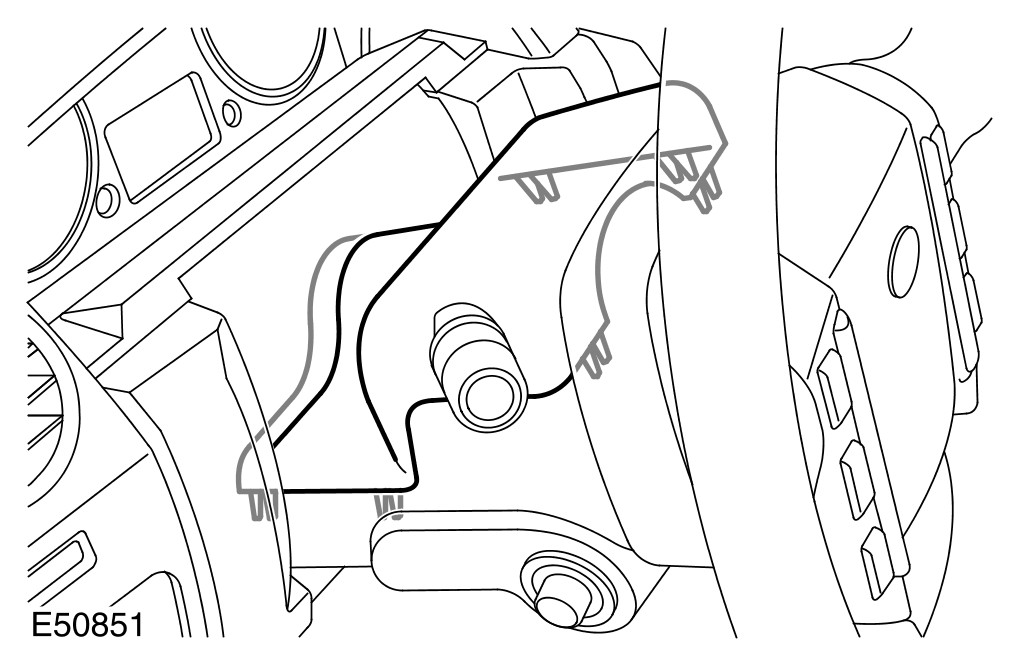

2 Remove the steering column upper shroud.
- Release the 6 clips.




3 Remove the steering column lower shroud.
- Remove the 3 Torx screws.
- Disconnect the electrical connector.




4
CAUTION: The ignition key must be removed prior to the removal of the ignition switch.

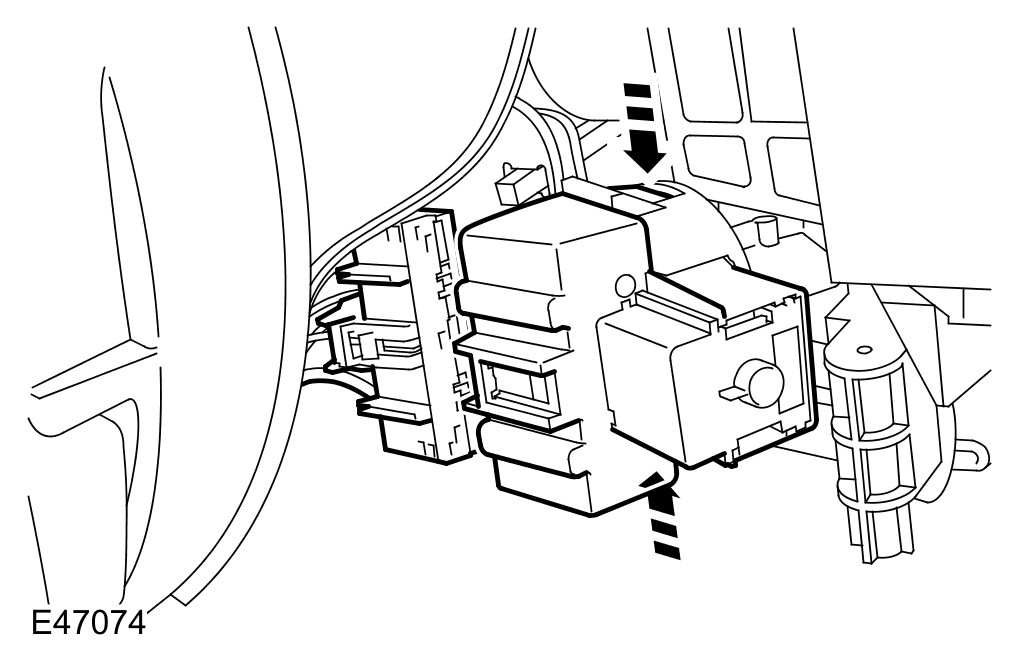

Remove the ignition switch.
- Disconnect the electrical connector.
- Depress the 2 clips.

Installation
1 Install the ignition switch.
- Secure with the clips.
- Connect the electrical connector.
2 Install the steering column shrouds.
- Connect the electrical connector.
- Tighten the Torx screws.
- Secure the clips.
