Window Track: Adjustments

Door glass channel setting procedure
1 Remove the door trim panel as necessary. For additional information, refer to Front Door Trim Panel Service and Repair
For additional information, refer to Rear Door Trim Panel Rear Door Trim Panel





2
NOTE:
Do not remove the door window glass channel.

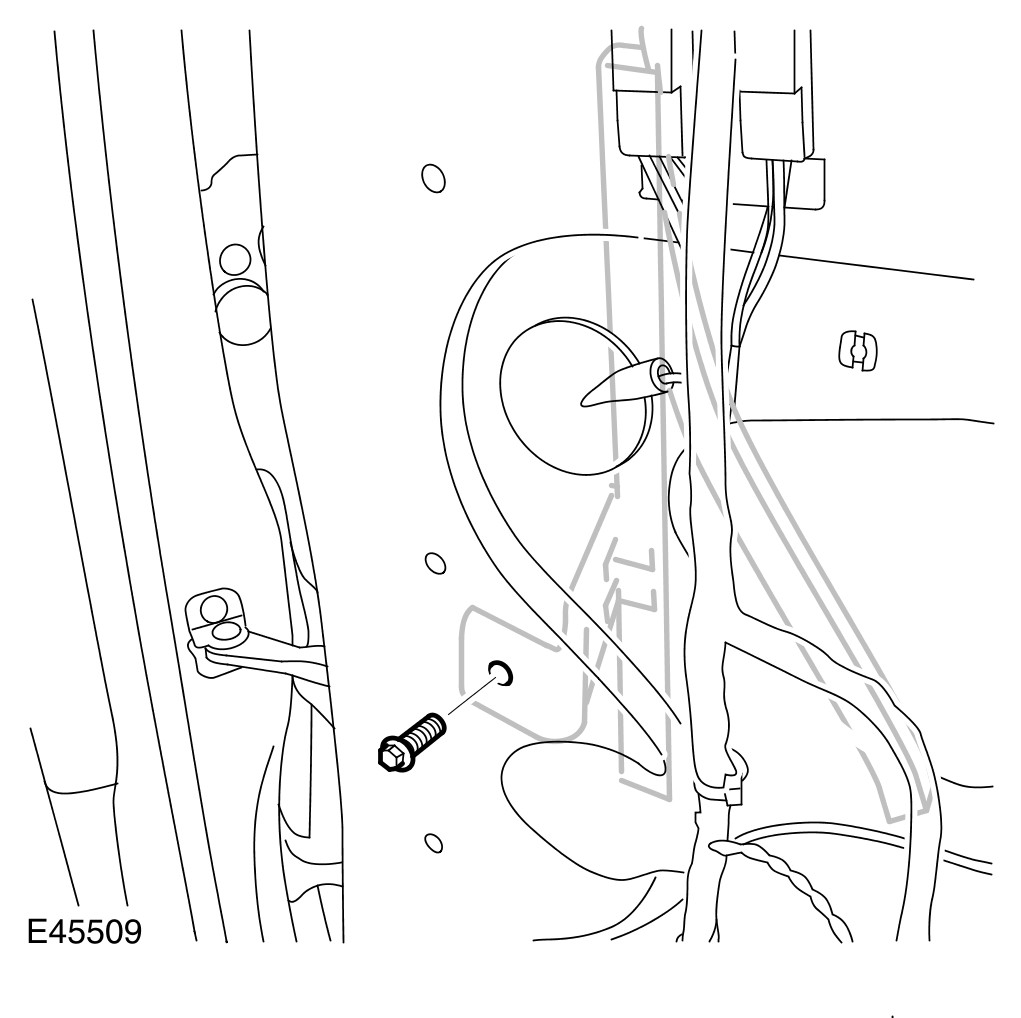

Release the door window glass channel retaining bolt.
3 Push the door window glass to the seal of the door glass channel and door window regulator motor to make sure correct installation in to the door window glass.
4 Lower the door window glass.
5 Tighten the door window glass channel retaining bolt.
6 Check the system for normal operation.
