Seat Track: Service and Repair
Front Seat Track
Removal
NOTE:
The front seat track motor is supplied as part of the front seat lower frame assembly.
1 Remove the front seat. For additional information, refer to Front Seat Removal and Replacement

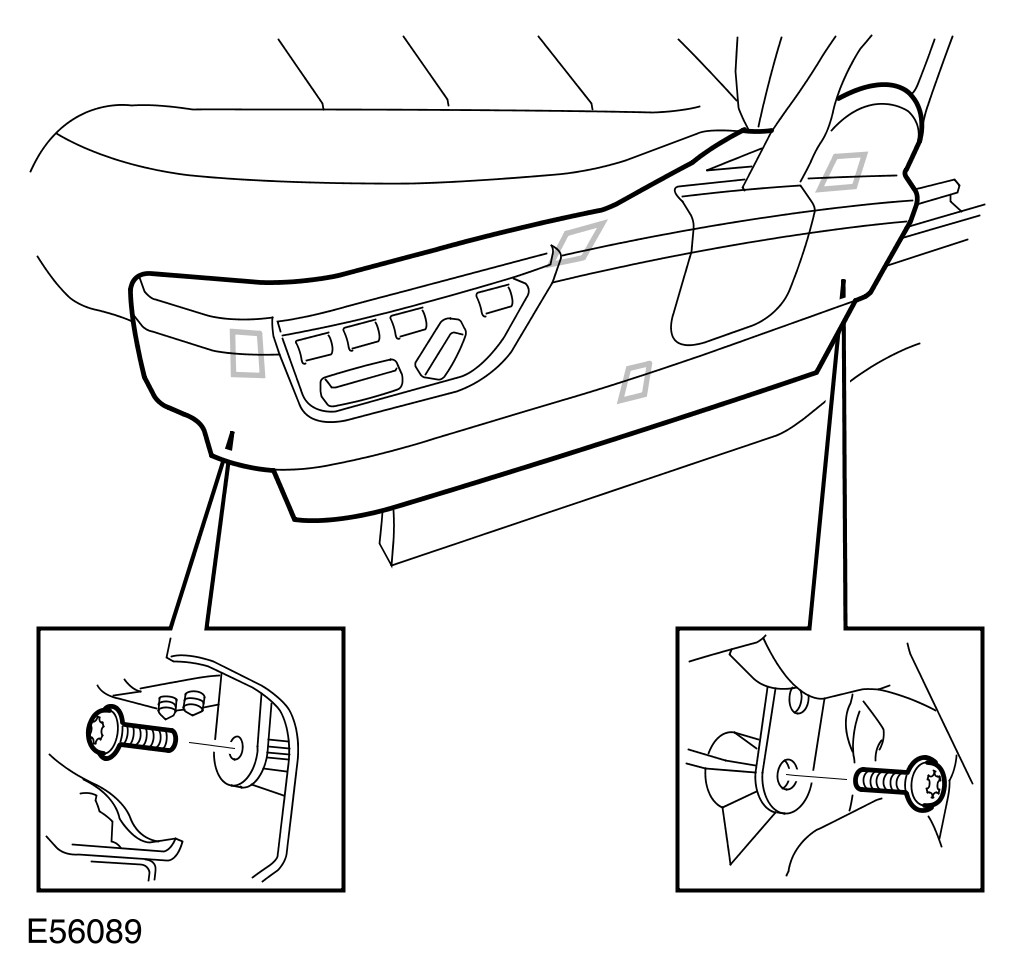

2
3 Release the seat control switch.
4
5 TORQUE: 25 Nm
6 TORQUE: 25 Nm

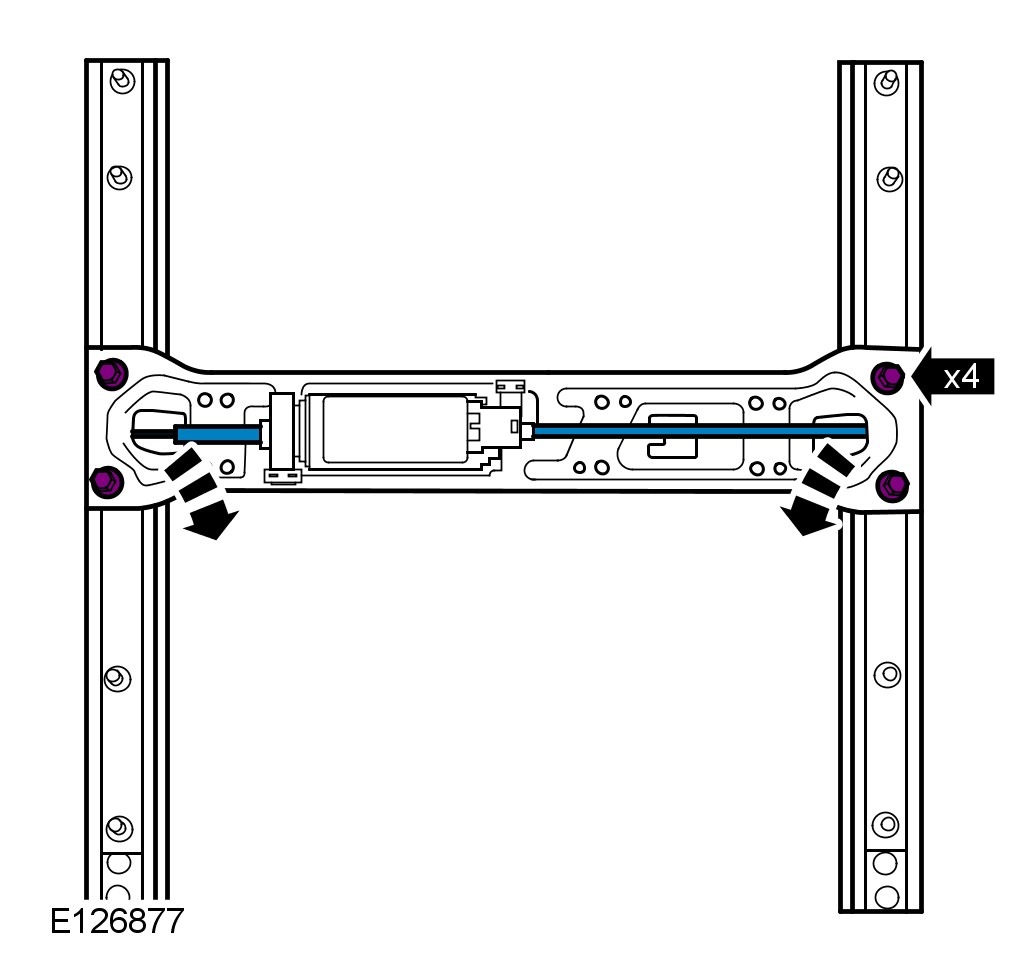

7 TORQUE: 10 Nm
8
NOTE:
Do not disassemble further if the component is removed for access only.
Installation
1
2 To install, reverse the removal procedure.
