Headlamp: Adjustments

Headlamp Adjustment

NOTE:
The headlamp setting is 1.2 % below horizontal and parallel.

NOTE:
NAS vehicles have vertical adjustment only.
1 Align the headlamp beam setting equipment to one headlamp.
2 Switch the headlamps on and to dipped beam.





NOTE:
NAS vehicles have vertical adjustment only.

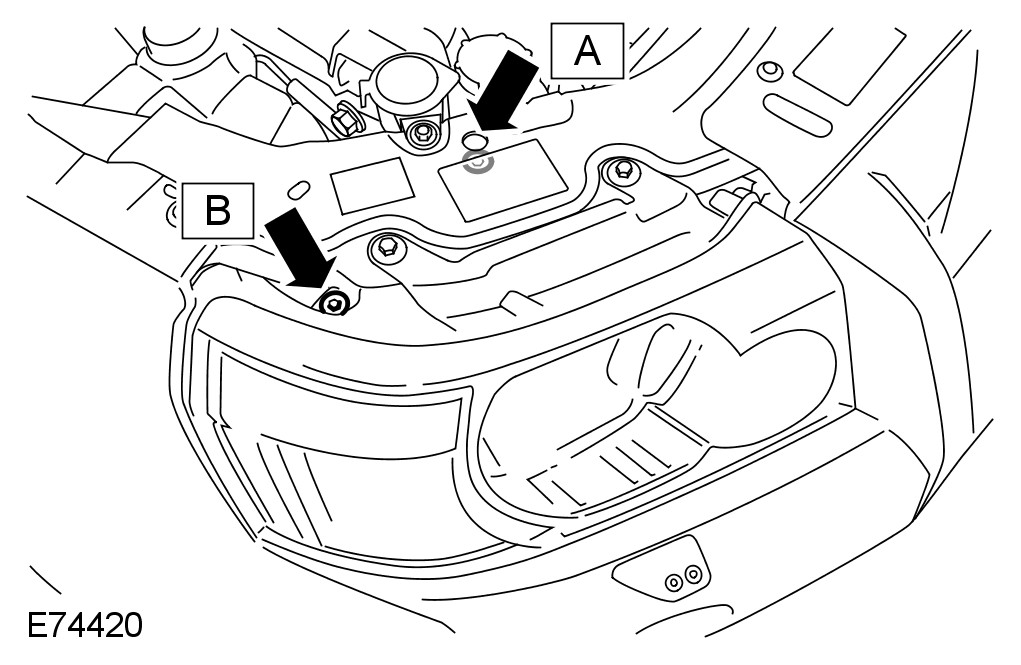

Adjust the headlamps with an Allen Key.
Rotate the adjusters A and B by an equal amount for vertical alignment.
Rotate the adjuster 'B' for horizontal alignment.
To adjust the second headlamp, repeat the above procedure.
