Interior - Rear View Mirror Mounting Boss Installation

No: LTB00089

Issue: 2

Date: 09 MAR 2009

ISSUE '2' CHANGES ARE HIGHLIGHTED WITH GRAY BACKGROUND

SECTION: 501

Interior Rear View Mirror Mounting Boss - Installation Procedure

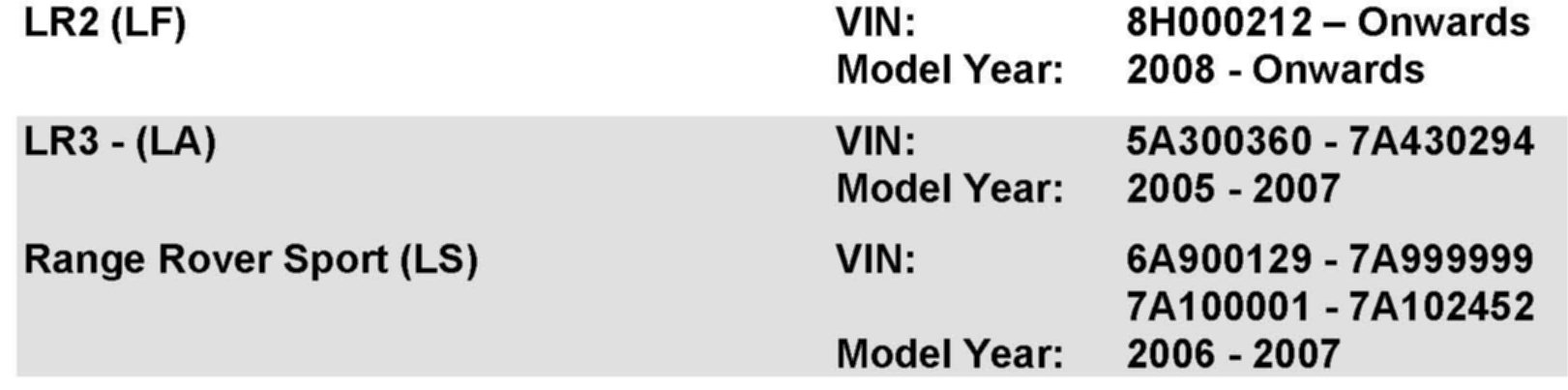

AFFECTED VEHICLE RANGE

CONDITION SUMMARY:

INSTALLING INTERIOR REAR VIEW MIRROR MOUNTING BOSS TO WINDSHIELD

Situation:

In the event a retailer needs to install the interior rear view mirror mounting boss to the windshield, the following Repair Procedure should be followed.

Action:

By following the Repair Procedure below carefully it is possible to attach the mounting boss to the windshield.

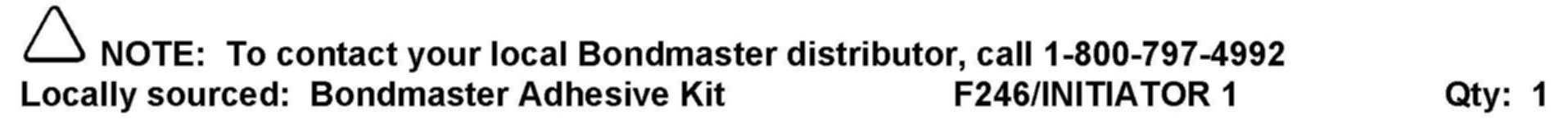

PARTS

TOOLS:

No special tools required.

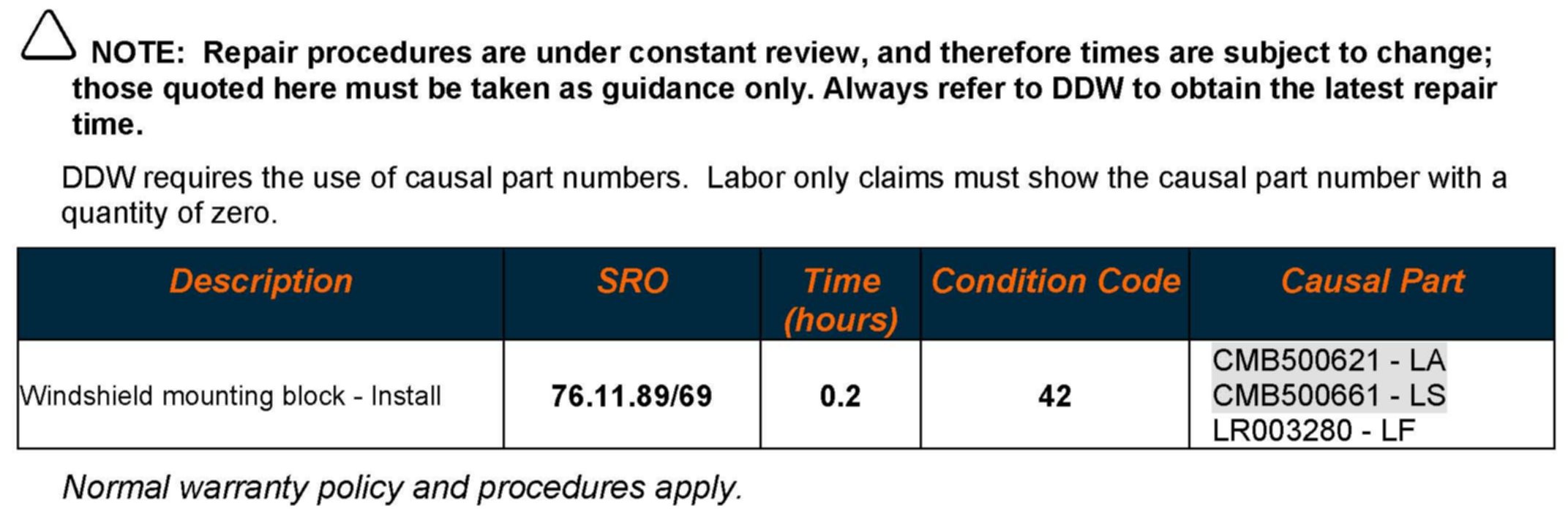

WARRANTY

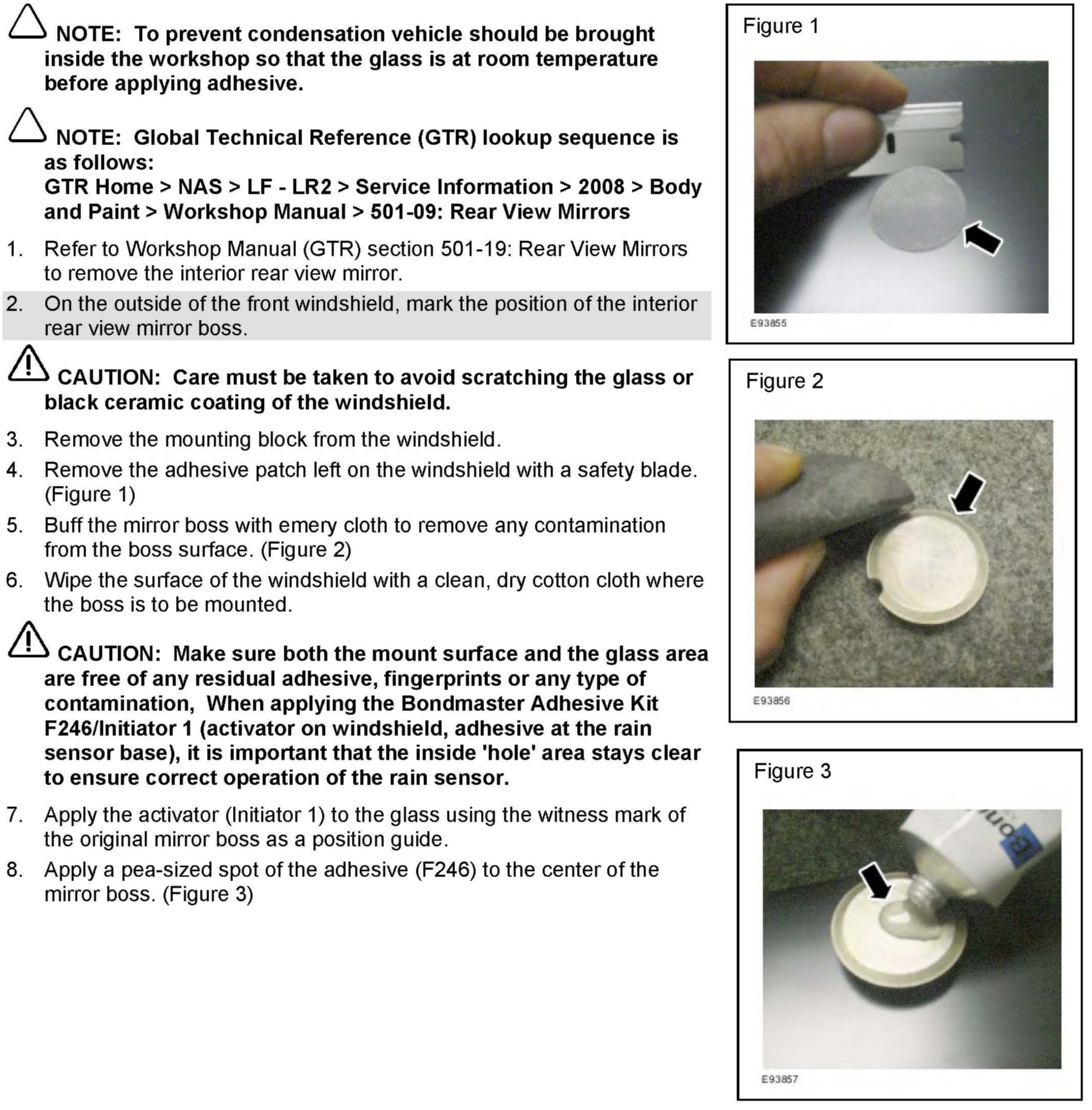

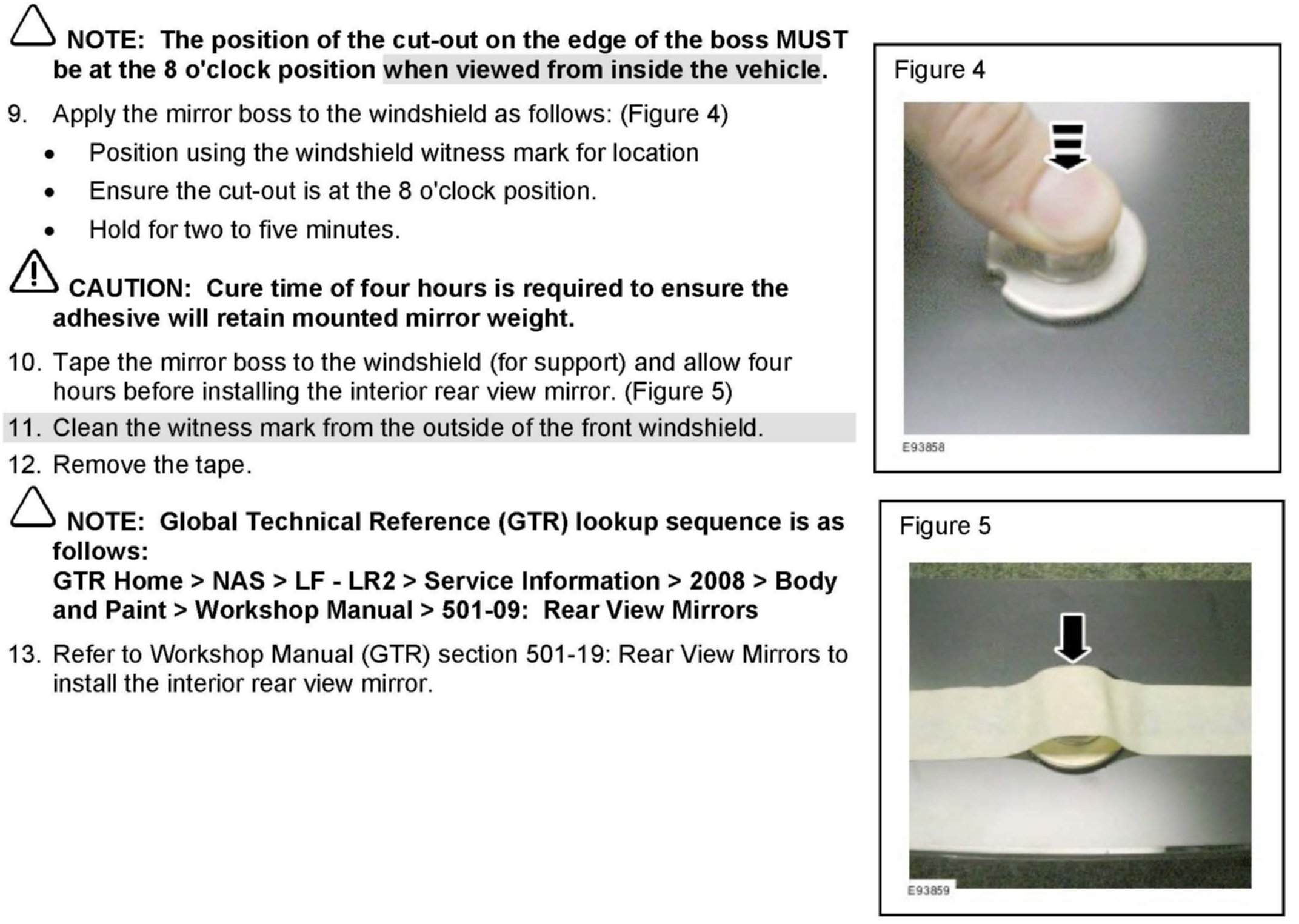

REPAIR PROCEDURE
