Driver Side Register Trim Panel





Driver Side Register Trim Panel

Removal

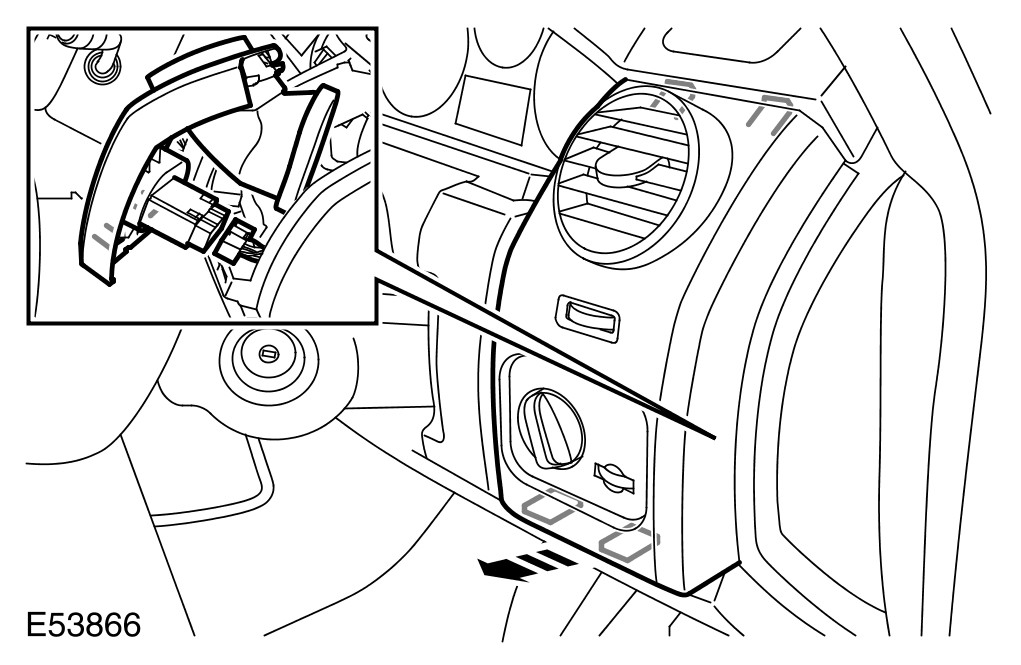

1 Remove the driver side register trim panel.
- Release the 2 clips.
- Disconnect the electrical connector.




2
NOTE:
Do not disassemble further if the component is removed for access only.

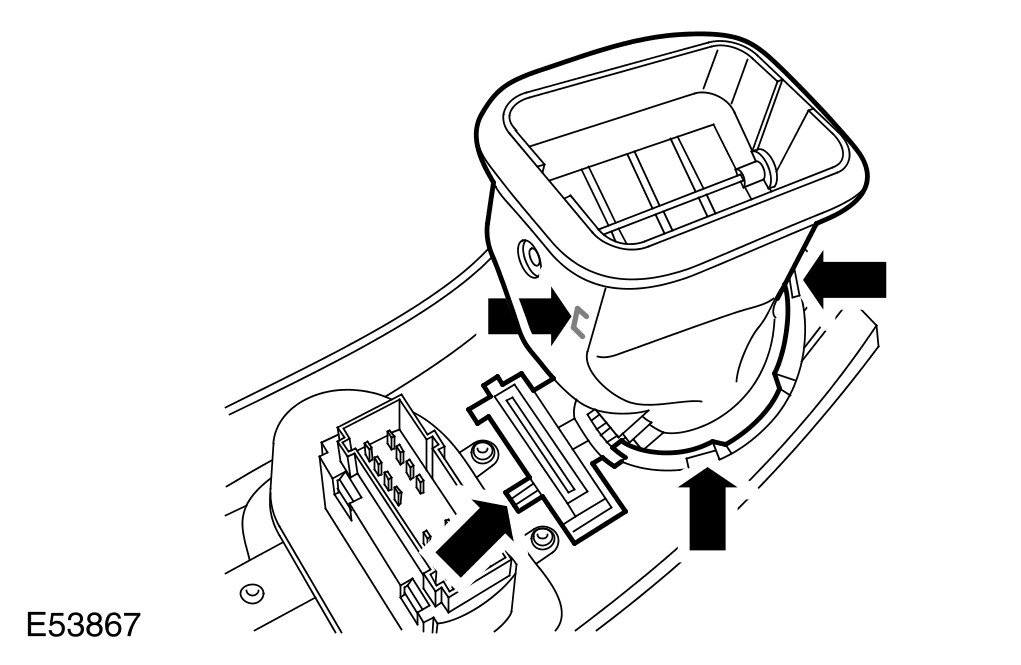

Remove the register.
- Release the 4 clips.

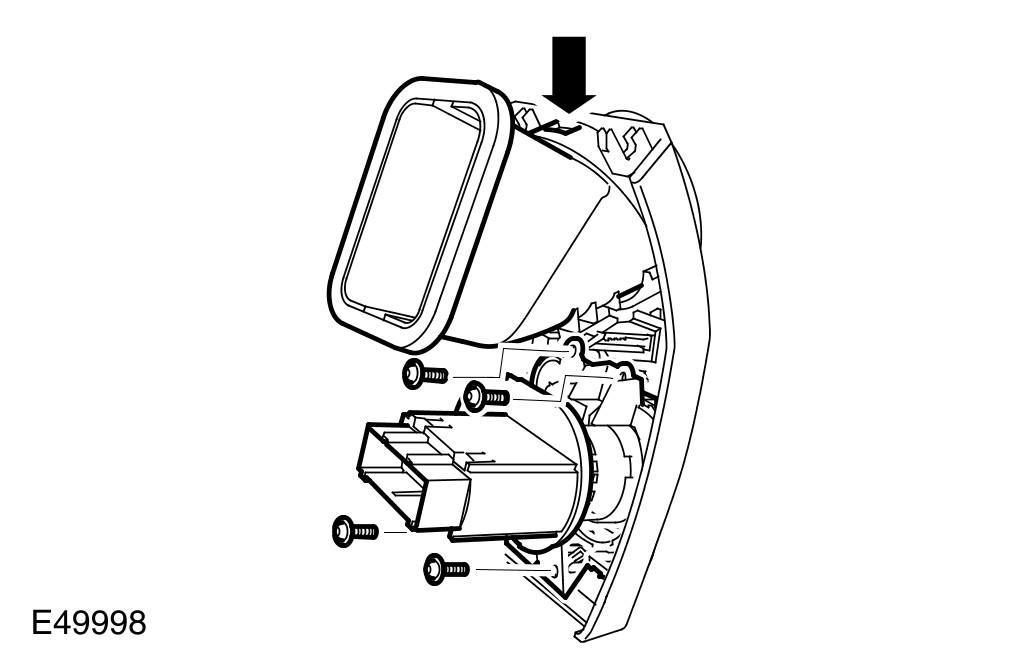

3 Remove the headlamp switch.
- Remove the 4 Torx screws.

Installation
1 Install the headlamp switch.
- Tighten the Torx screws.
2 Install the register.
- Secure with the clips.
3 Install the driver side register trim panel.
- Connect the electrical connector.
- Secure with the clips.
