Transmission Mount: Service and Repair





Transmission Support Insulator

Removal
1
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
2 Remove the transmission crossmember. For additional information, refer to Transmission Support Crossmember - 5.0L Transmission Support Crossmember
For additional information, refer to Transmission Support Crossmember - 3.0L Diesel

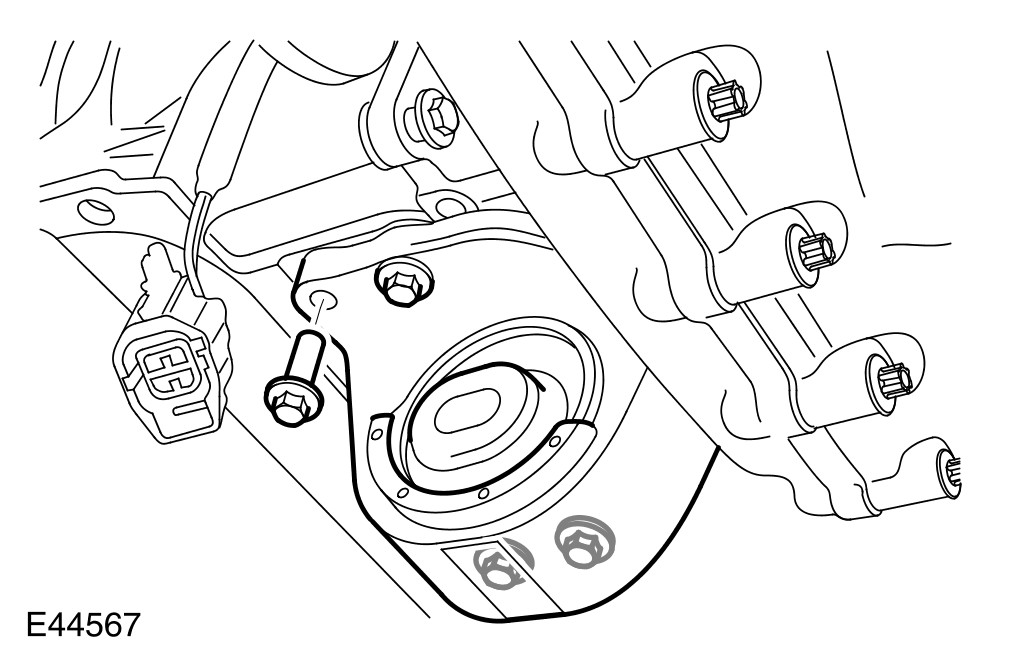

3 Remove the transmission support insulator.
- Remove the 4 bolts.

Installation
1 To install, reverse the removal procedure.
- Clean the component mating faces.
- Tighten the bolts to 60 Nm (44 lb.ft).
