Front Wheel Speed Sensor





Front Wheel Speed Sensor

Removal

NOTE:
Removal steps in this procedure may contain installation details.
1 Disconnect the battery ground cable. For additional information, refer to Specifications Battery and Charging System
2
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
3 Remove the front wheel and tire.
- TORQUE: 140 Nm




4
CAUTION: Before disconnecting or removing the components, ensure the area around the joint faces and connections are clean and dry. Plug open connections to prevent contamination.

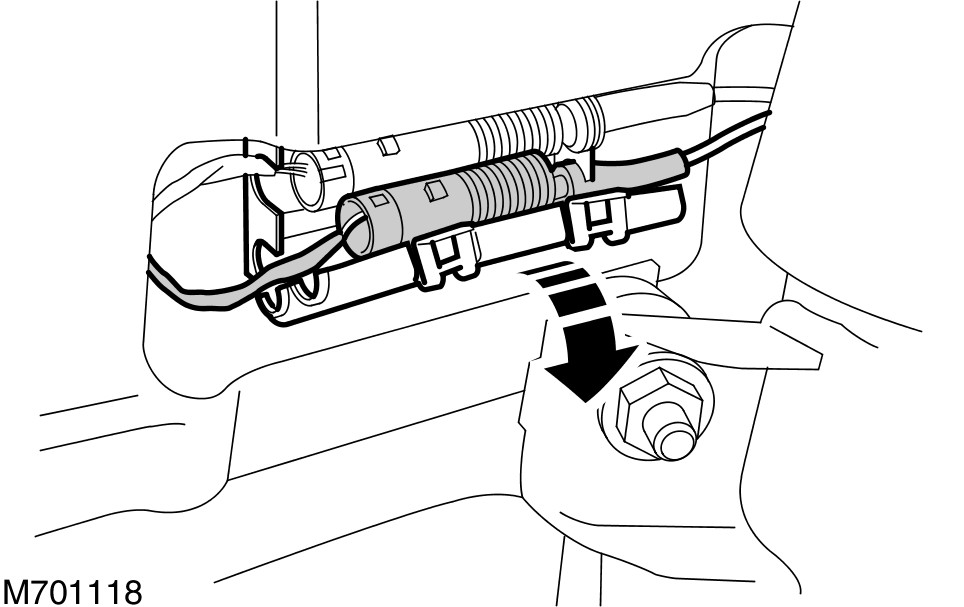

Disconnect the wheel speed sensor electrical connector.




5




6
CAUTION: Make sure that the component is clean, free of foreign material and lubricant.
CAUTION: Make sure that the mating faces are clean and free of foreign material.
CAUTION: Make sure that the sensor tip is clean and free of foreign material.

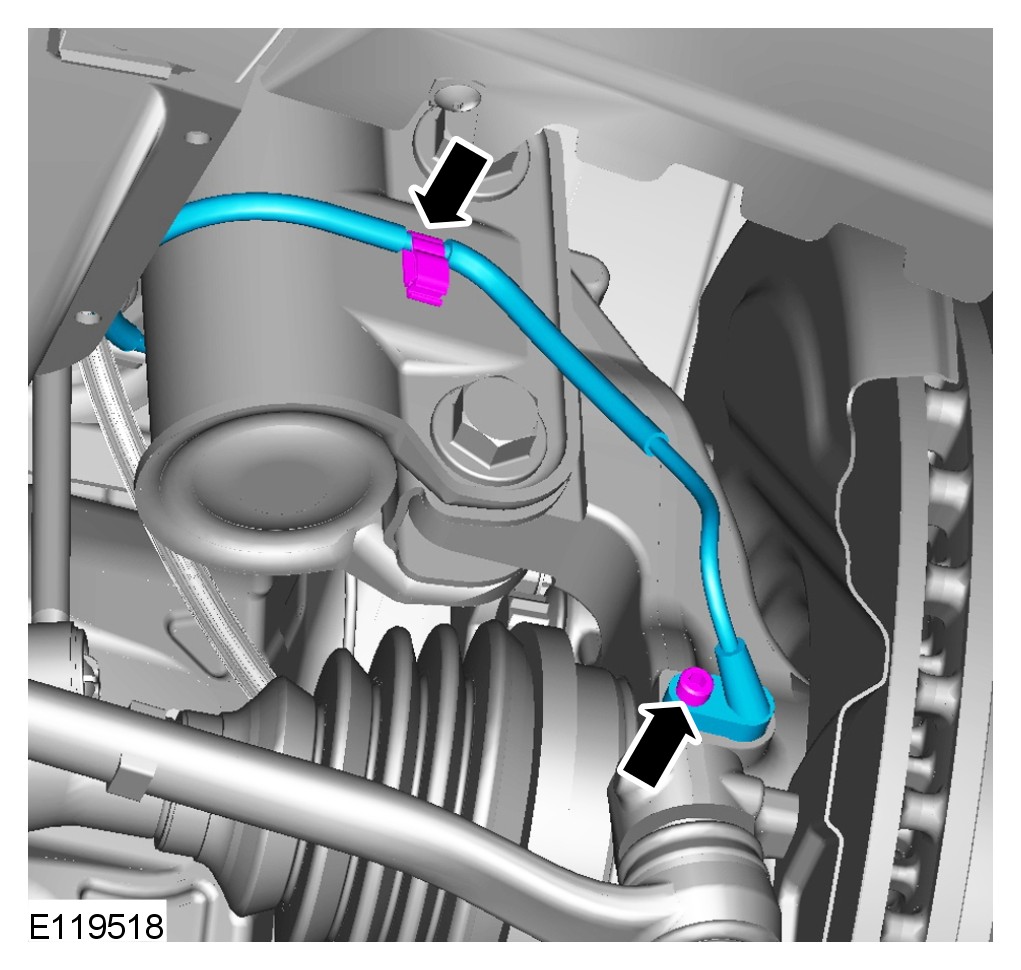

Remove the front wheel speed sensor.
- TORQUE: 8 Nm

Installation
1 To install, reverse the removal procedure.
- Using the approved Land Rover diagnostic system, clear the fault codes from the ABS ECU.
