Driver Side Register Trim Panel





Driver Side Register Trim Panel

Removal





1 Remove the instrument panel end trim panel.
- Release sufficient door aperture seal for access.
- Carefully release the 4 clips.
2 Remove the driver's side register. For additional information, refer to Driver Side Register Driver Side Register




3 Remove the driver side register trim panel.
- Remove the 3 screws.
- Disconnect the headlamp switch electrical connector.




4
NOTE:
Do not disassemble further if the component is removed for access only.

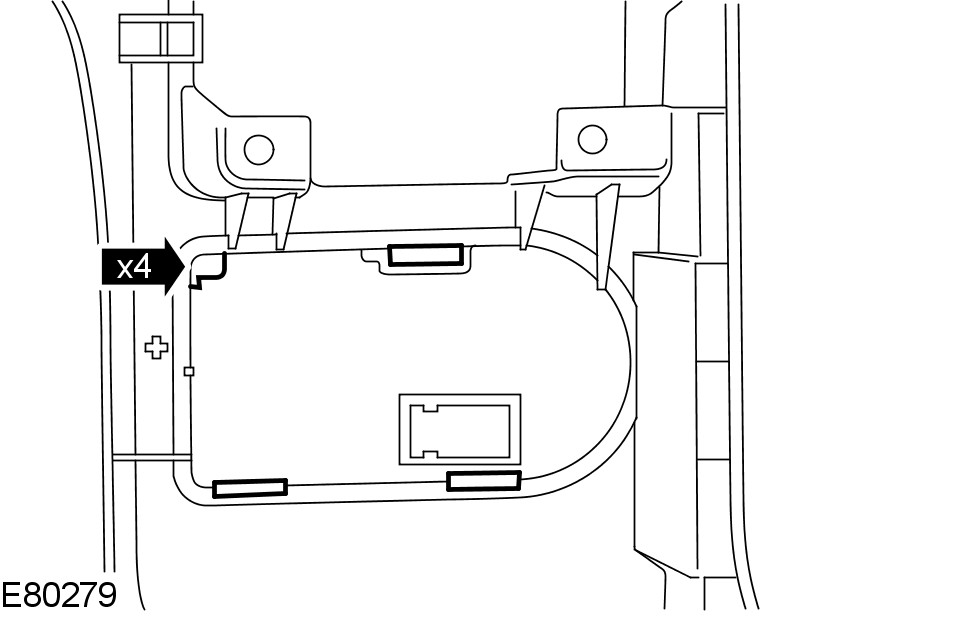

Remove the headlamp switch.
- Carefully release the 4 clips.

Installation
1 Install the headlamp switch.
2 Install the driver side register trim panel.
- Connect the headlamp switch electrical connector.
- Install the 3 screws.
3 Install the driver's side register. For additional information, refer to Driver Side Register Driver Side Register
4 Install the instrument panel end trim panel.
- Carefully align and secure the clips.
- Install the aperture seal.
