Instrument Panel / Center Console

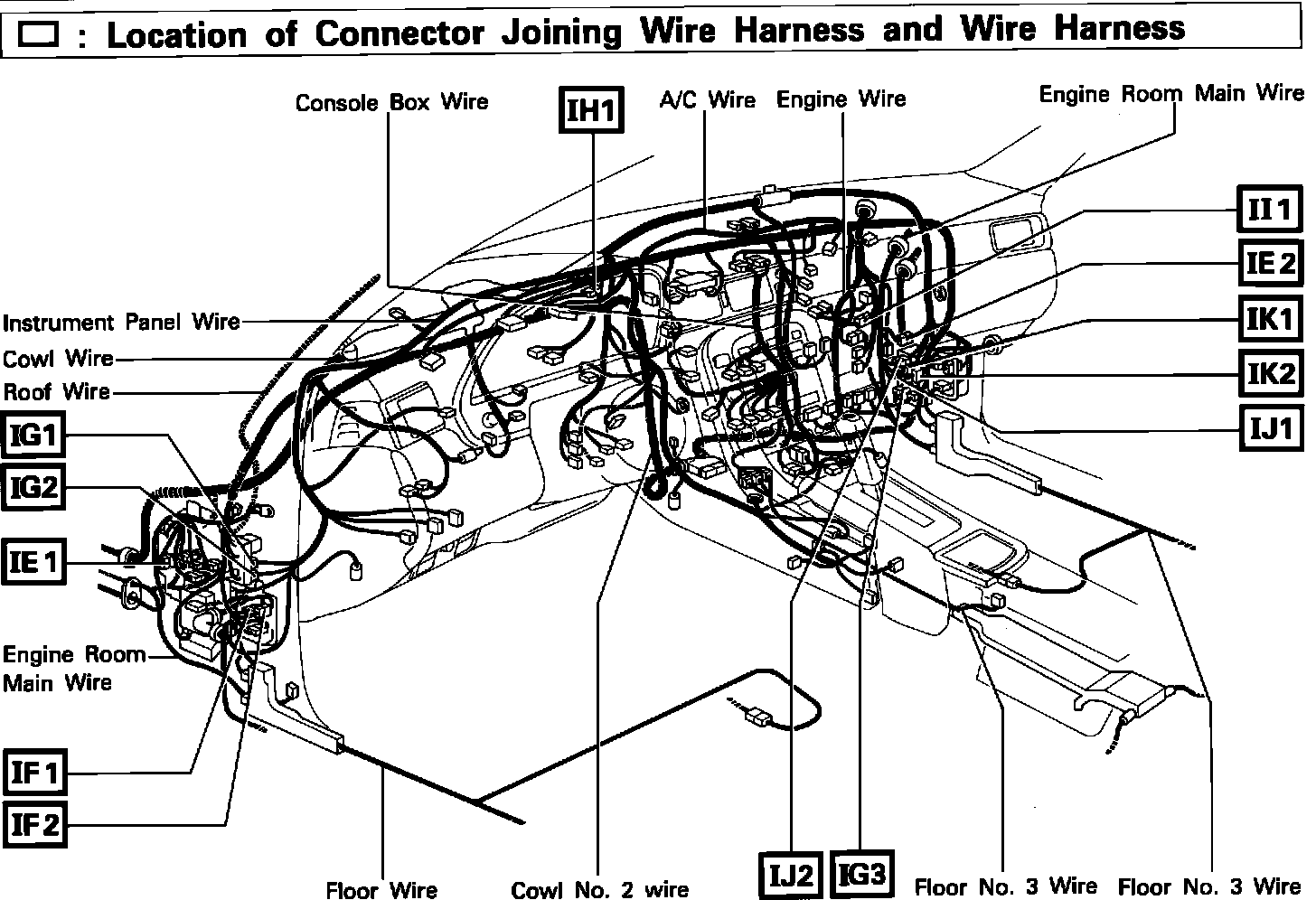

Location Of Connectors Joining Sub-Harness And Main Harness, Location Of Ground Points:

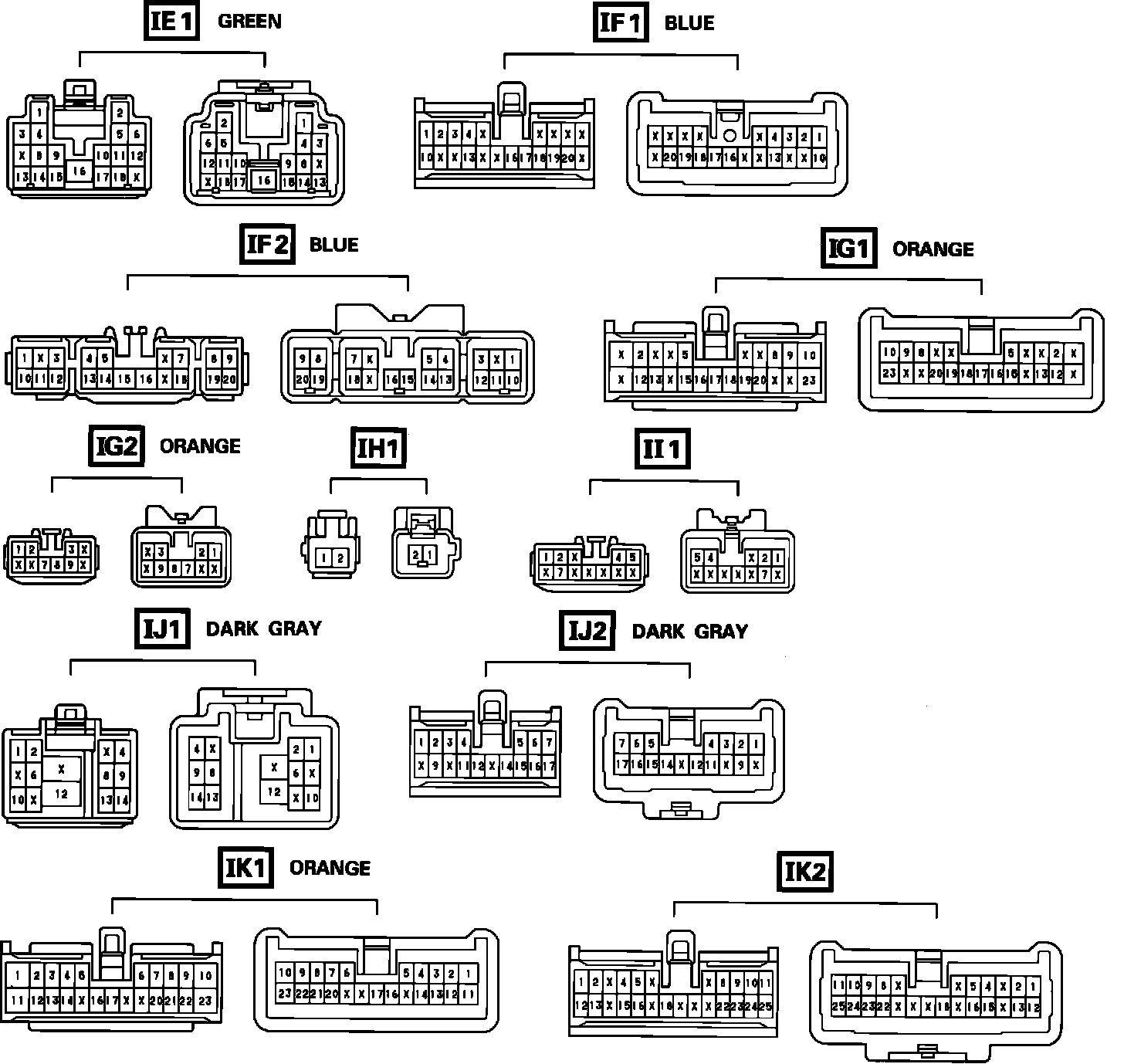

Wire Haness Connector ID:



Location Of Connector Joining Sub-harness And Wire Harness, Location Of Splice Points:

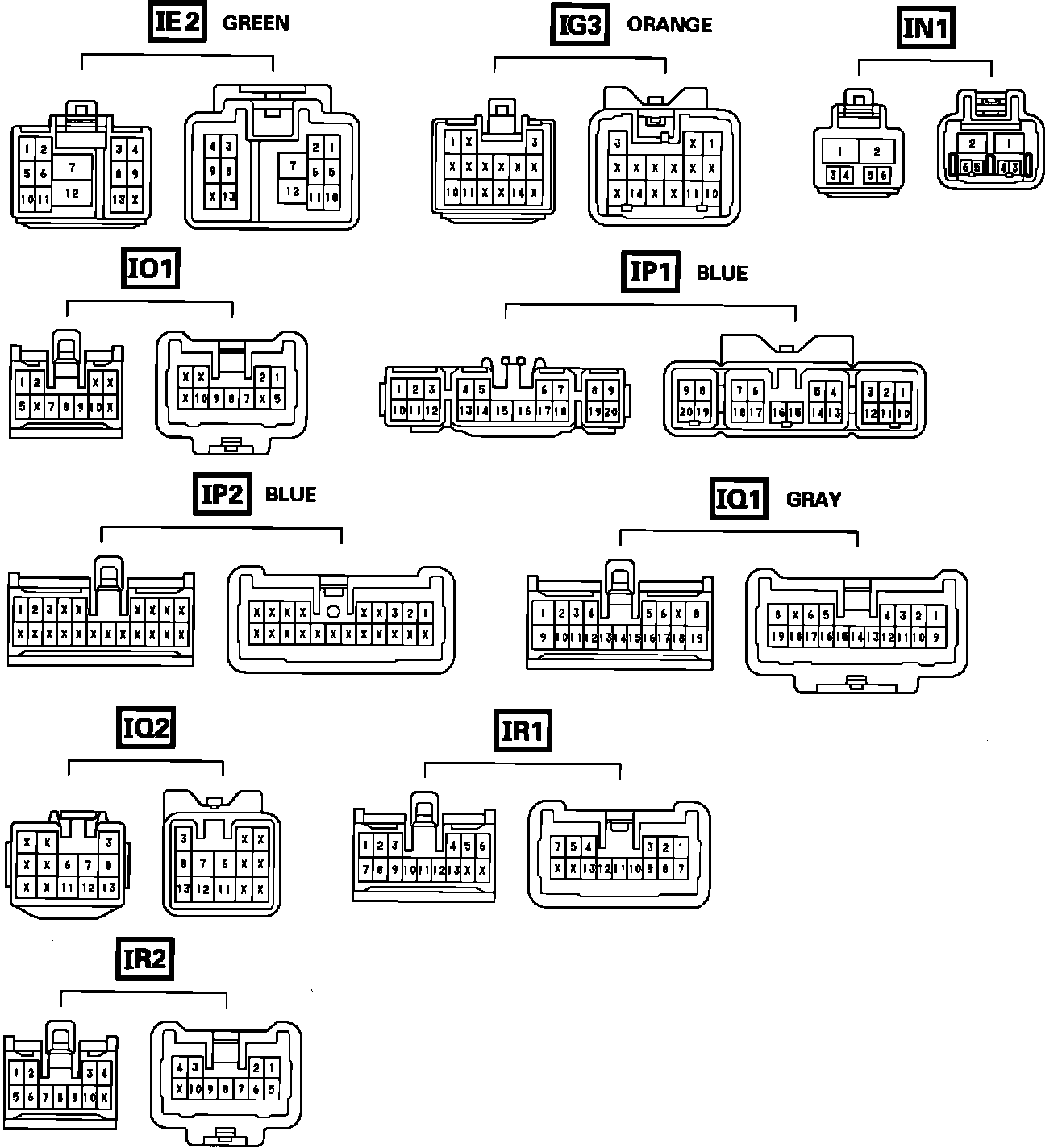

Harness Connector ID:
