Engine Compartment

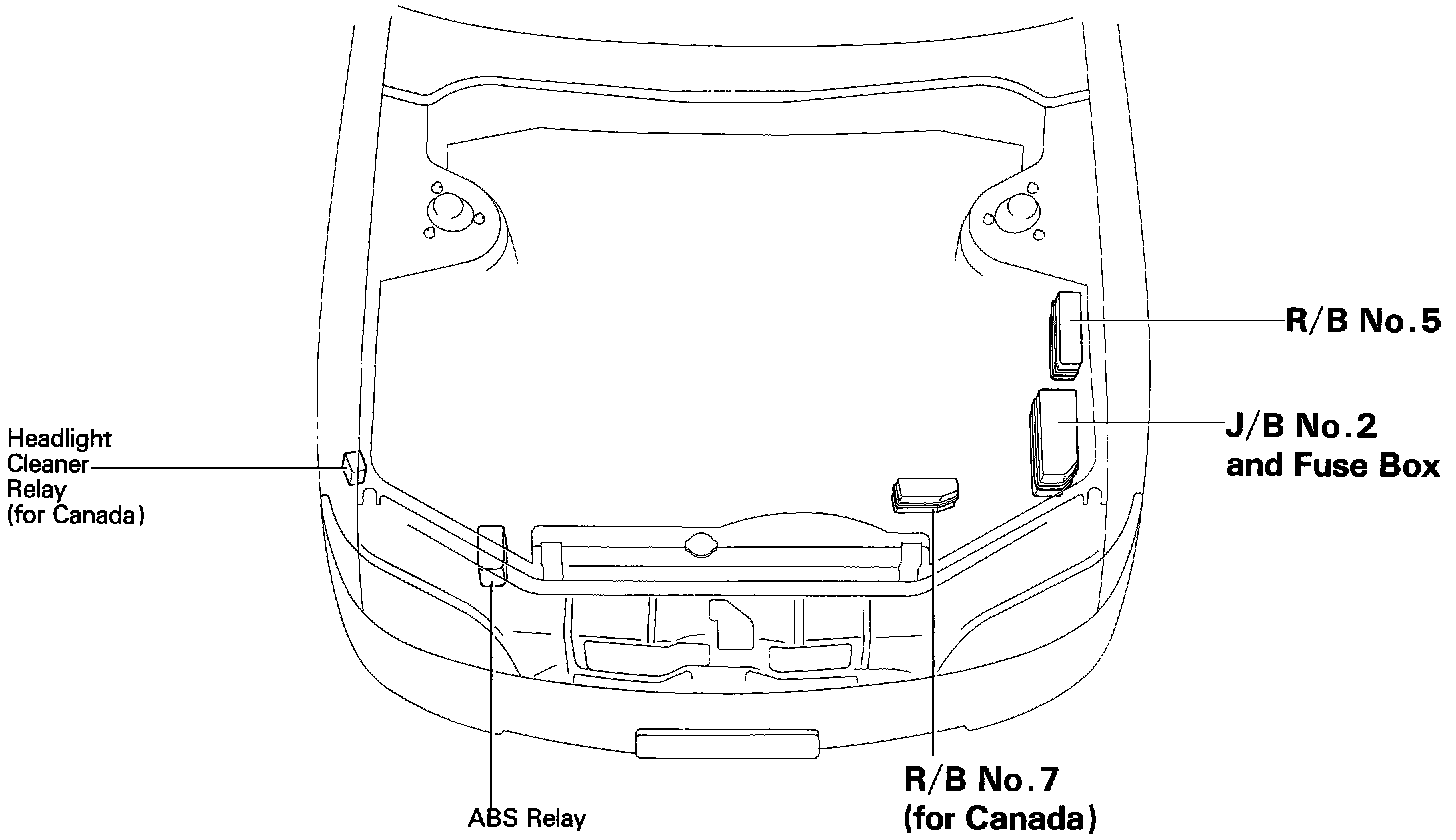

Locations-Engine Compartment (Fig 18):






ABS Relay

Headlight Cleaner Relay (for Canada)

J/B No.2 and Fuse Box

R/B No.5
R/B No. 7 (for Canada)
