Instrument Panel / Center Console

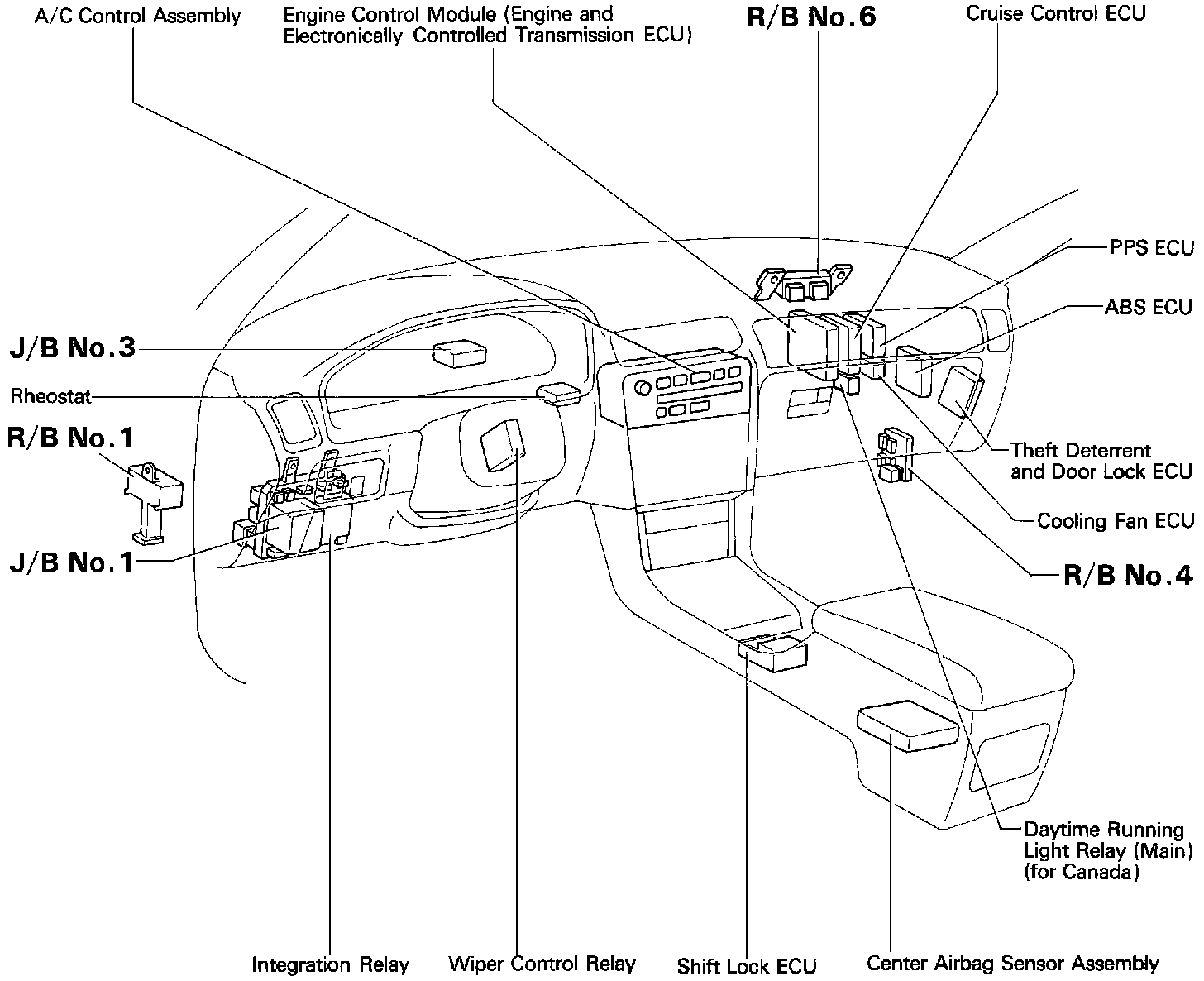

Locations-Instrument Panel (Fig 19):

A/C Control Assembly
ABS ECU

Center Airbag Sensor Assembly
Cooling Fan ECU
Cruise Control ECU

Daytime Running Light Relay (Main) (For Canada)

Engine Control Module (Engine and Electronically Controlled Transmission ECU)

Integration Relay

J/B No.1
J/B No.3

PPS ECU

Rheostat

R/B No.1
R/B No.4
R/B No.6

Shift Lock ECU

Theft Deterrent and Door Lock ECU

Wiper Control Relay
