Seats

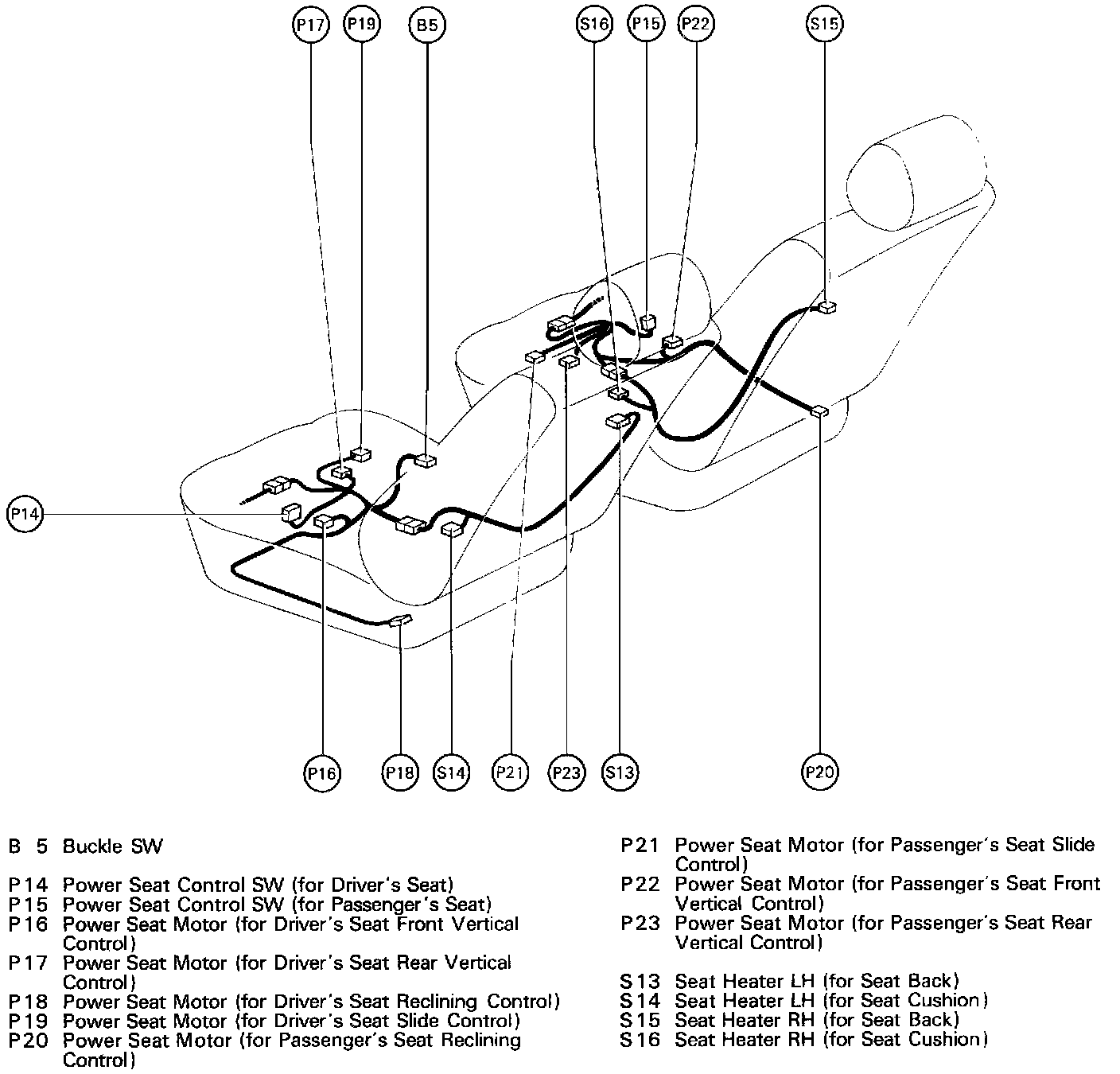

Position Of Parts In Seat (Fig 33):






B 5 Buckle SW

P14 Power Seat Control SW (for Driver's Seat)
P15 Power Seat Control SW (for Passenger's Seat)
P16 Power Seat Motor (for Driver's Seat Front Vertical Control)
P17 Power Seat Motor (for Driver's Seat Rear Vertical Control)
P18 Power Seat Motor (for Driver's Seat Reclining Control)
P19 Power Seat Motor (for Driver's Seat Slide Control)
P2O Power Seat Motor (for Passenger's Seat Reclining Control)
P21 Power Seat Motor (for Passenger's Seat Slide Control)
P22 Power Seat Motor (for Passenger's Seat Front Vertical Control)
P23 Power Seat Motor (for Passenger's Seat Rear Vertical Control)

S13 Seat Heater LH (for Seat Back)
S14 Seat Heater LH (for Seat Cushion)
S15 Seat Heater RH (for Seat Back)
S16 Seat Heater RH (for Seat Cushion)
