Cruise Control

V 3 Black:



J 7 Blue:



S10 Blue:



J 4:



E 7-A Dark Gray:



E10-B Dark Gray:

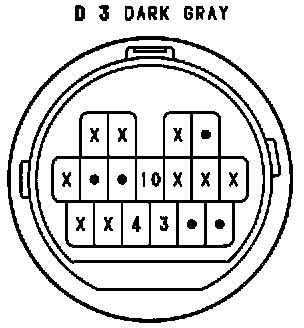

D 3 Dark Gray:



D23 Black:



D 1 Black:

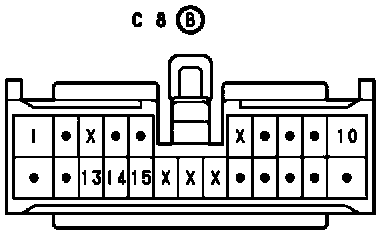

C 8-B:



C14 Gray:



C 7-A Blue:

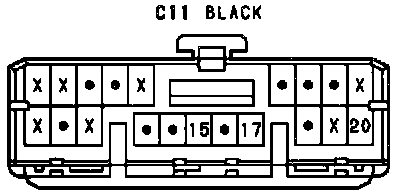

C11 Black:



C 2 Gray:
