Power Source (Current Flow Chart)

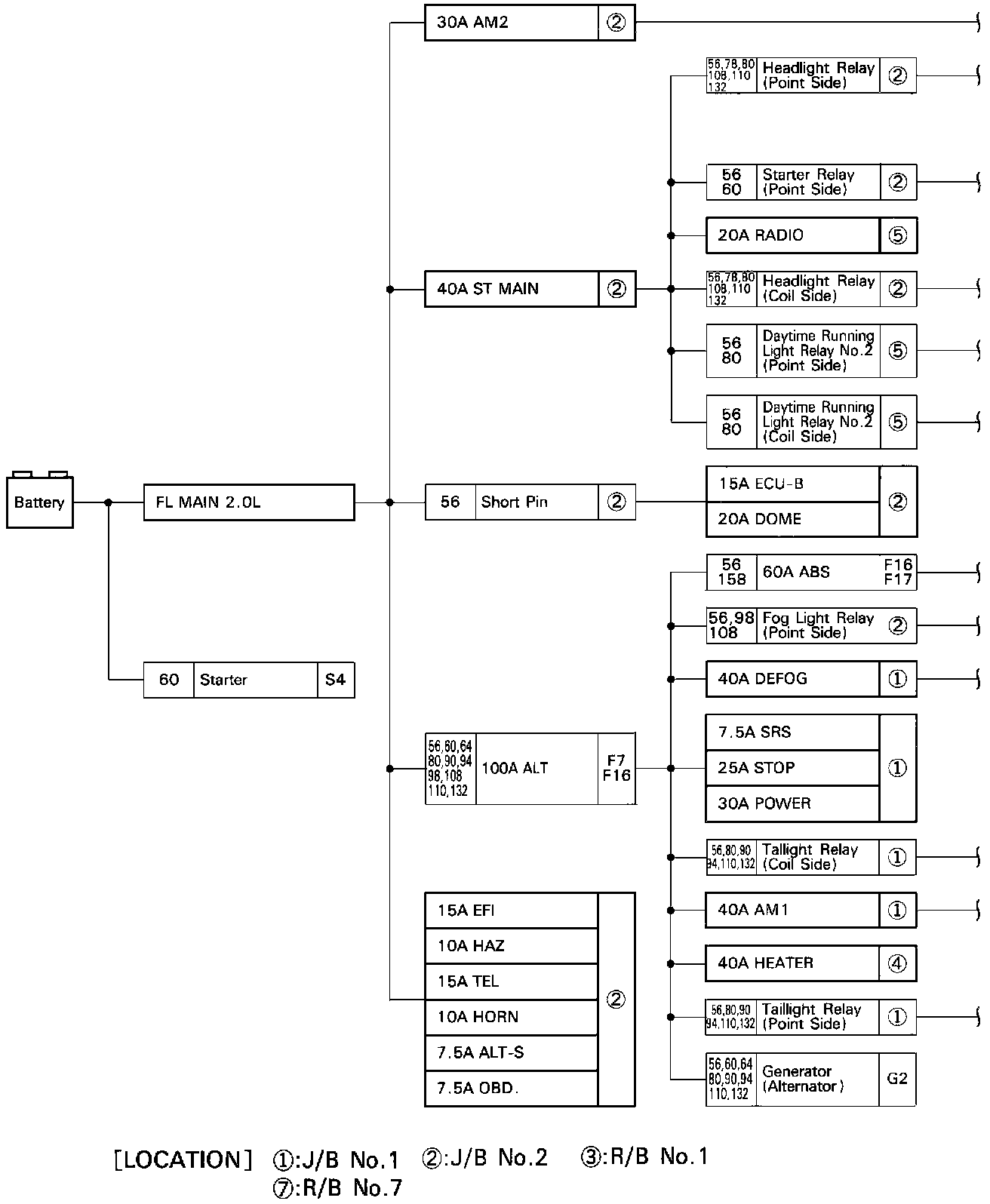

Power Source (Current Flow Chart) (Part 1 Of 2):

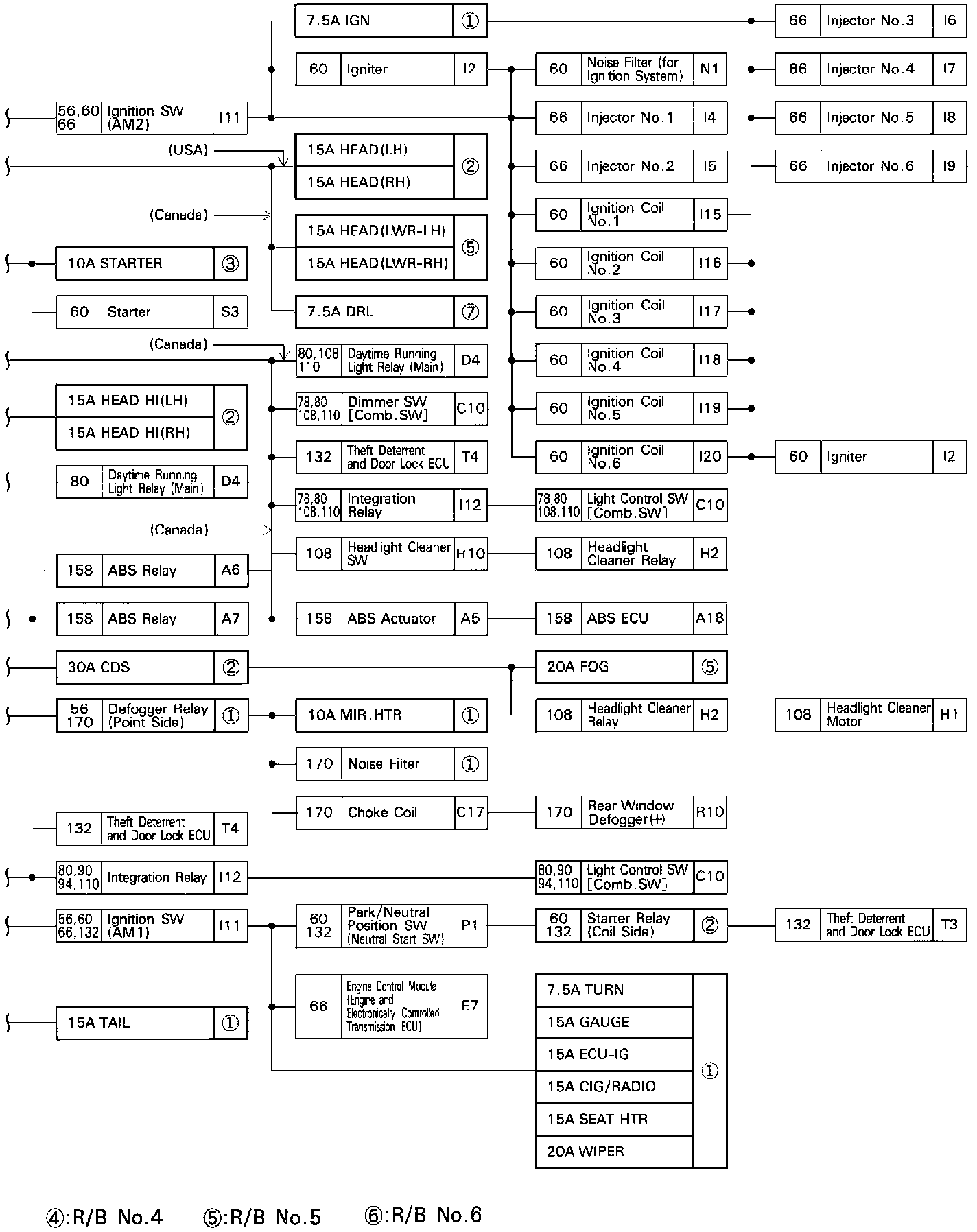

Power Source (Current Flow Chart) (Part 2 Of 2):

2 Introduction
56 Power source
60 Starting and Ignition
64 Charging
66 Engine Control
78 Headlight (for USA)
80 Headlight (for Canada)
90 Taillight
94 Illumination
98 Front Fog Light
108 Headlight Cleaner (for Canada)
110 Light Auto Turn Off
132 Theft Deterrent and Door Lock Control
158 Anti-Lock Brake System
170 Rear Window Defogger and Mirror Heater
