Crankshaft Position Sensor: Testing and Inspection

INSPECTION

NOTICE: Cold and Hot in the following sentences express the temperature of the sensor itself.
Cold is from -10°C (14°F) to 50°C (122°F) and
Hot is from 50°C (122°F) to 100°C (212°F).

INSPECT RESISTANCE

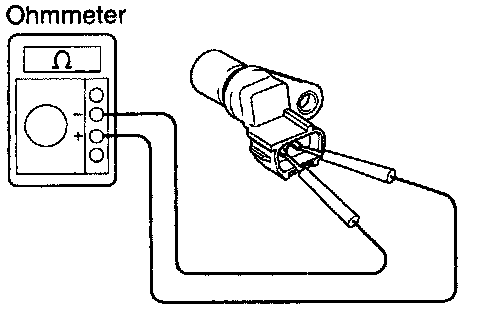

- Using an ohmmeter, measure the resistance between terminals.

Resistance:
Cold: 1.630 - 2,740 Ohms
Hot: 2,060 - 3.225 Ohms

- If the resistance is not as specified, replace the crankshaft position sensor.
