Throttle Position Sensor: Adjustments

ADJUSTMENT

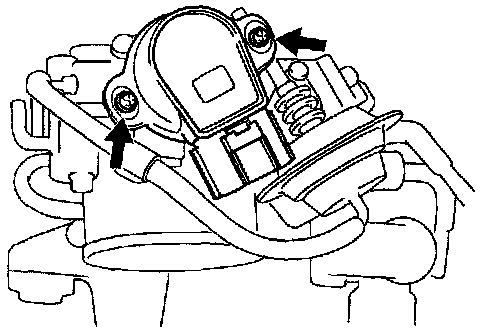

- Loosen the 2 set screws of the sensor.

- Apply vacuum to the throttle opener.

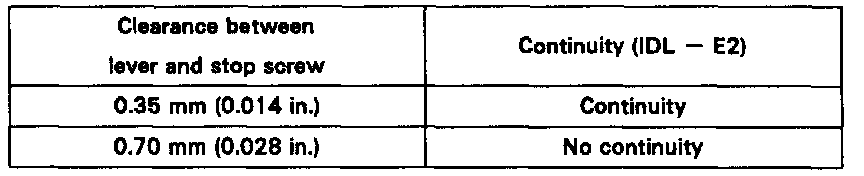

- Insert a 0.54 mm (0.021 in.) thickness gauge, between the throttle stop screw and stop lever.

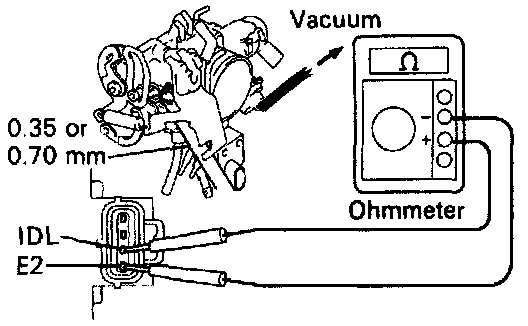

- Connect the test probe of an ohmmeter to the terminals IDL and E2 of the sensor.
- Gradually turn the sensor clockwise until the ohmmeter deflects. and secure it with the 2 set screws.

- Recheck the continuity between terminals IDL and E2.
