Ignition Coil: Service and Repair

REMOVAL

INSTALLATION HINT: Installation is in the reverse order of removal.

1. REMOVE V-BANK COVER

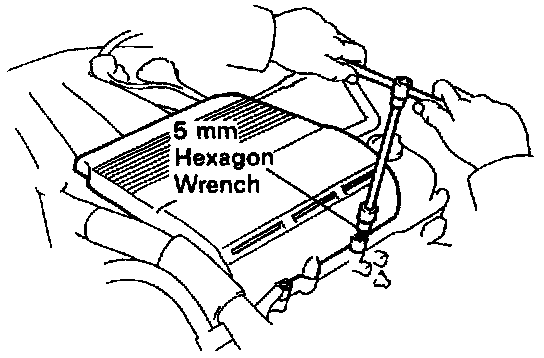

- Using a 5 mm hexagon wrench, remove the 2 cap nuts.
- Disconnect the 2 clips, remove the V-bank cover.

INSTALLATION HINT: For fixing the V-bank cover, push on the cover until a click is felt.




2. REMOVE IGNITION COILS
- Disconnect the 6 connectors from the RH and LH cylinder heads.
- Remove the 6 bolts and 6 ignition coils from the RH and LH cylinder heads.

Torque: 8 N.m (69 in lb)
