Oscilloscope Patterns and Waveforms

INSPECTION USING OSCILLOSCOPE

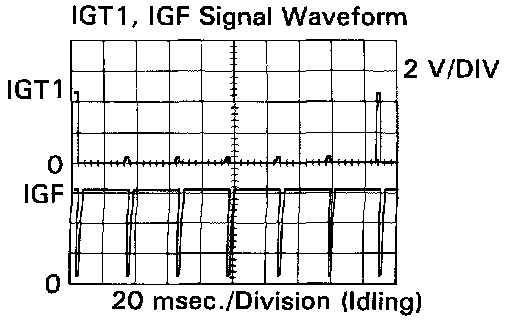

During cranking or idling, check waveform between terminal IGT1,IGF and E1 of ECM.

HINT: The IGT2, IGT3, IGT4, IGT5 and IGT6 signal waveforms are the same as the IGT1 signal waveform.
