Cruise Control

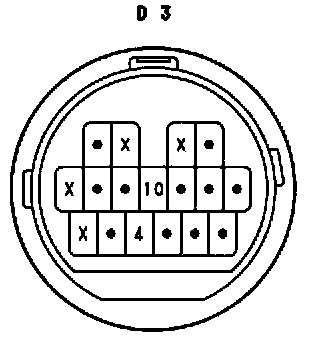

D 3:



V 1 Black:

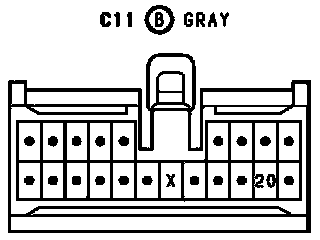

C11-B Gray:



S 9:



P 4 Gray:



N 3:



J11:



J 9 Gray:



J 8:



I11 Black:



E 8-B Dark Gray:



E 7-A Dark Gray:

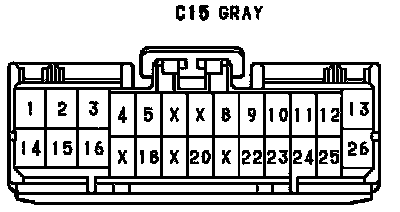

C15 Gray:

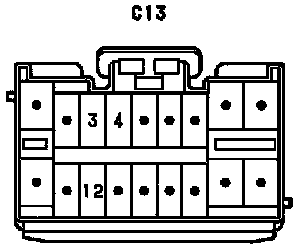

C13:

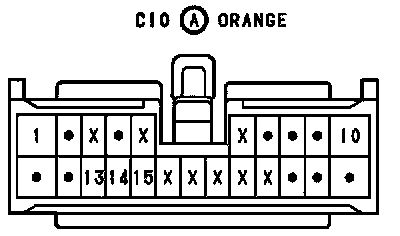

C10-A Orange:



C 2 Gray:
