On-Vehicle Inspection

VOLUME AIR FLOW (VAF) METER - ON-VEHICLE INSPECTION
1. INSPECT RESISTANCE OF VAF METER.
- Disconnect the VAF meter connector.

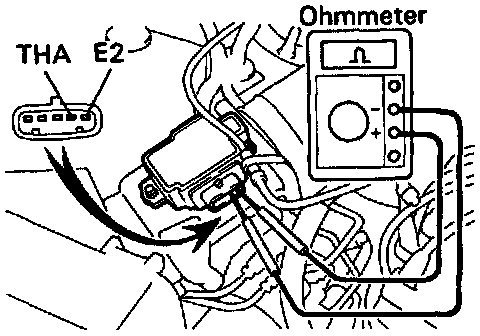

- Using an ohmmeter, measure the resistance between terminals THA and E2.

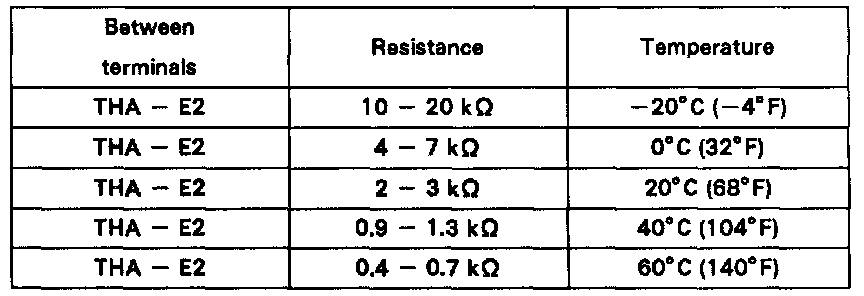

- If the resistance is not as specified, replace the VAF meter.
- Reconnect the VAF meter connector.

2. INSPECT VAF METER.
- Check that the honeycomb is neither deformed nor damaged.
- If necessary, replace the VAF meter.
