Inspection Using Oscilloscope




INSPECTION USING OSCILLOSCOPE
Reference

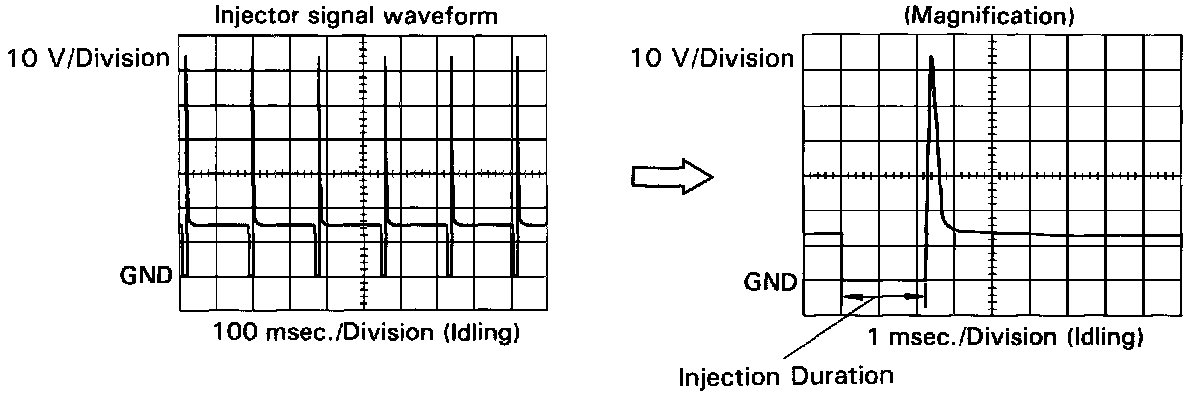

With the engine idling measure waveform between terminals #10 - 60 and E01 of Engine Control Module (ECM).

HINT: The correct waveforms are as shown.
