Diagnostic Procedure

HINT:
- If diagnostic trouble code 41 is displayed, check throttle position sensor circuit. If diagnostic trouble code 47 is displayed, check sub-throttle position sensor circuit.
- If diagnostic trouble codes "22" (engine coolant temperature sensor circuit), "24" (intake air temperature sensor circuit) and "41" (throttle position sensor circuit) are output simultaneously, E2 (sensor ground) may be open.

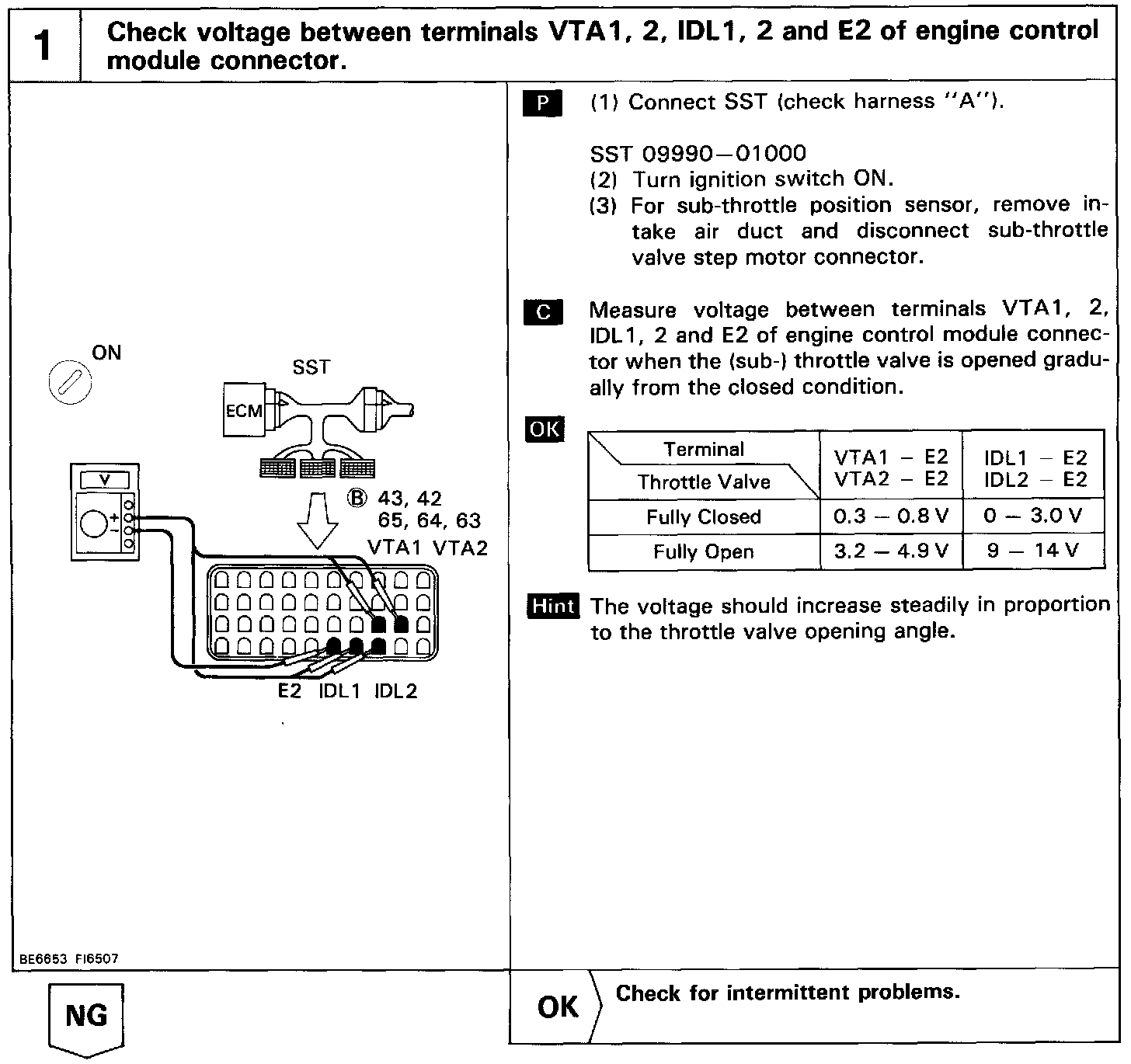

DIAGNOSTIC PROCEDURE
