Bank 1, 2 Sensor 1
INSPECT HEATER RESISTANCE OF HEATED OXYGEN SENSORS -
Disconnect the
oxygen sensor connectors.
-

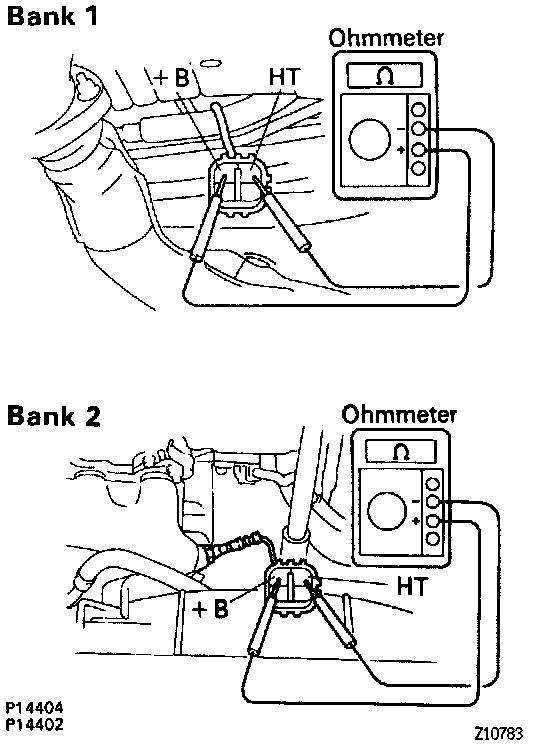

Using an ohmmeter, measure the resistance between the terminals +B and HT.
Resistance: At 20°C (68°F): 11 - 160 -
If the resistance is not as specified, replace the sensor.
Torque: 44 N-m (440 kgf.cm, 31 ft.lb.) -
Reconnect the
oxygen sensor connectors.
