Ignition System: Testing and Inspection

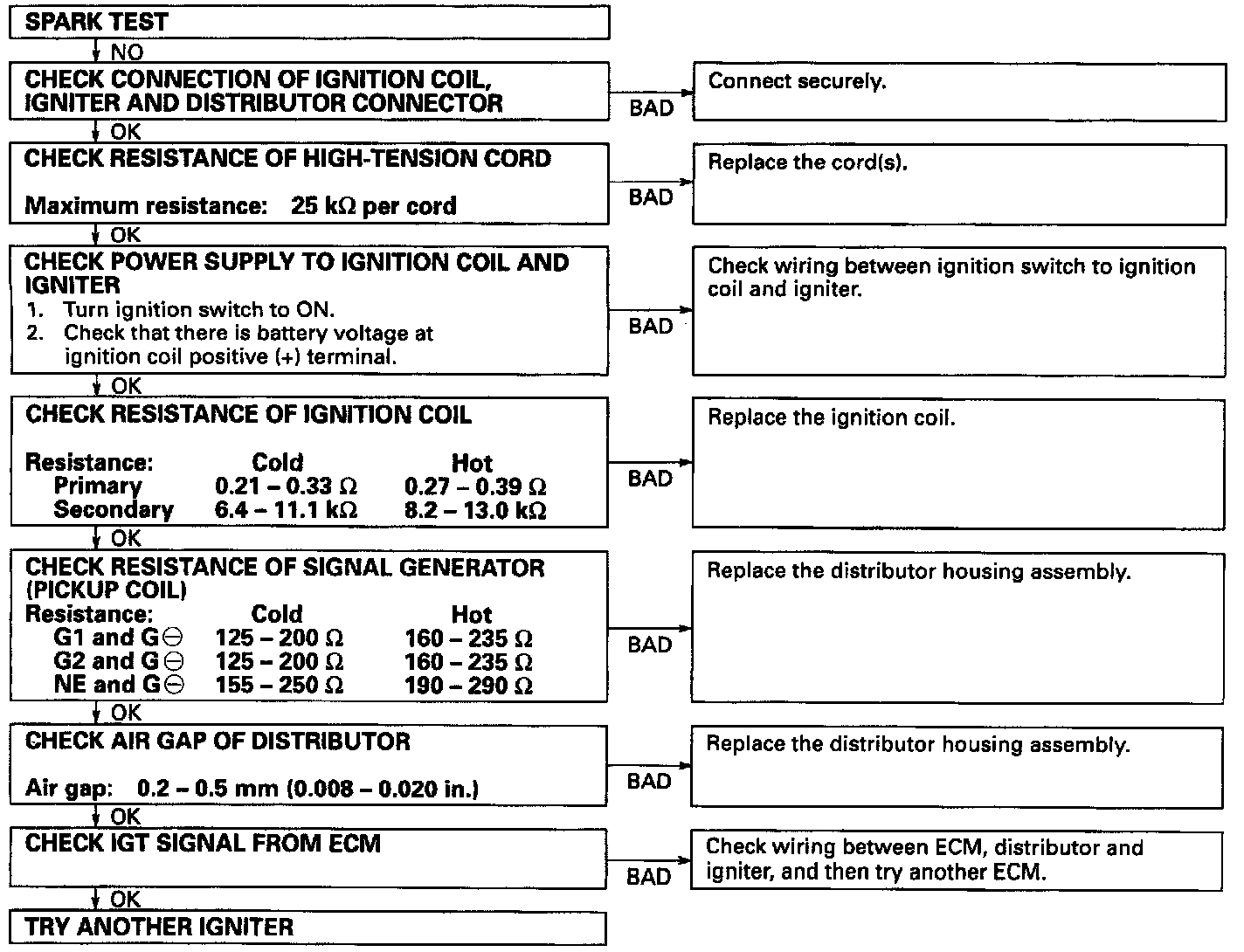

CHECK THAT SPARK OCCURS -
Disconnect the high-tension cord (from the
ignition coil) from the distributor cap.
-
Hold the end Approx. 12.5 mm (0.50 in.) from the body ground.
-
See if spark occurs while engine is being cranked.
NOTICE: To prevent excess fuel being injected from the injectors during this test, do not crank the engine for more than 5 - 10 seconds at a time.
