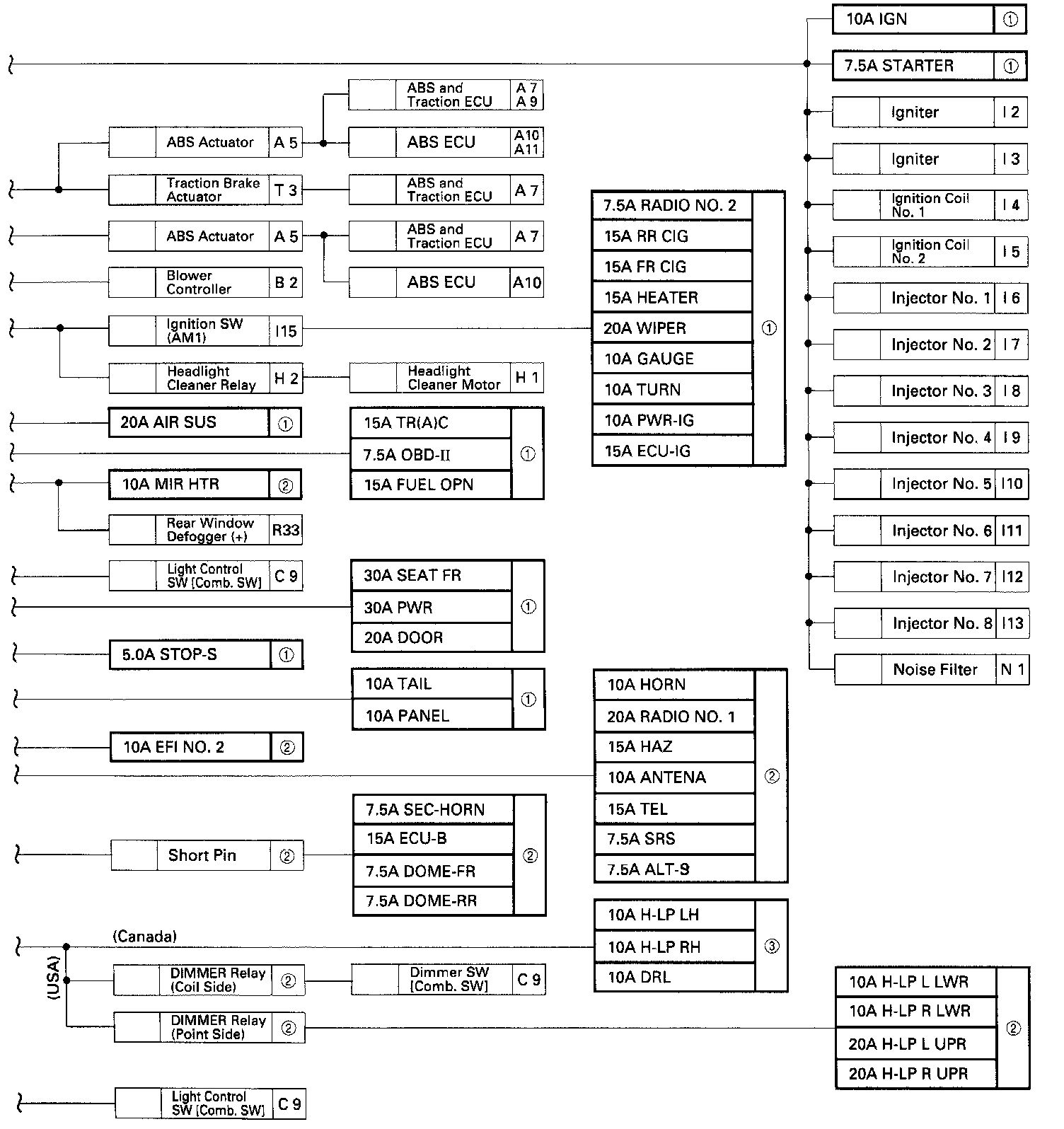

Power and Ground Distribution: Description and Operation

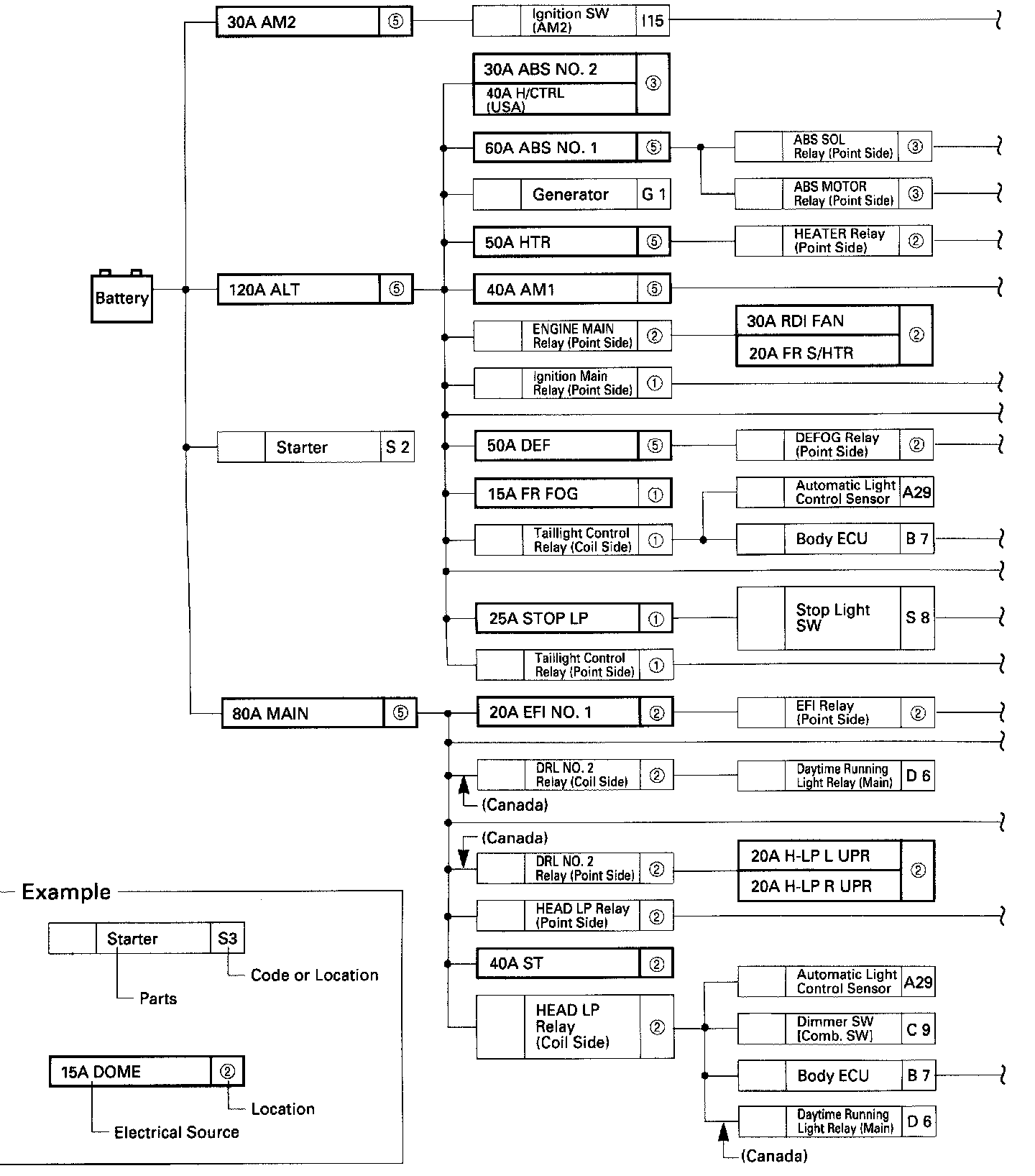

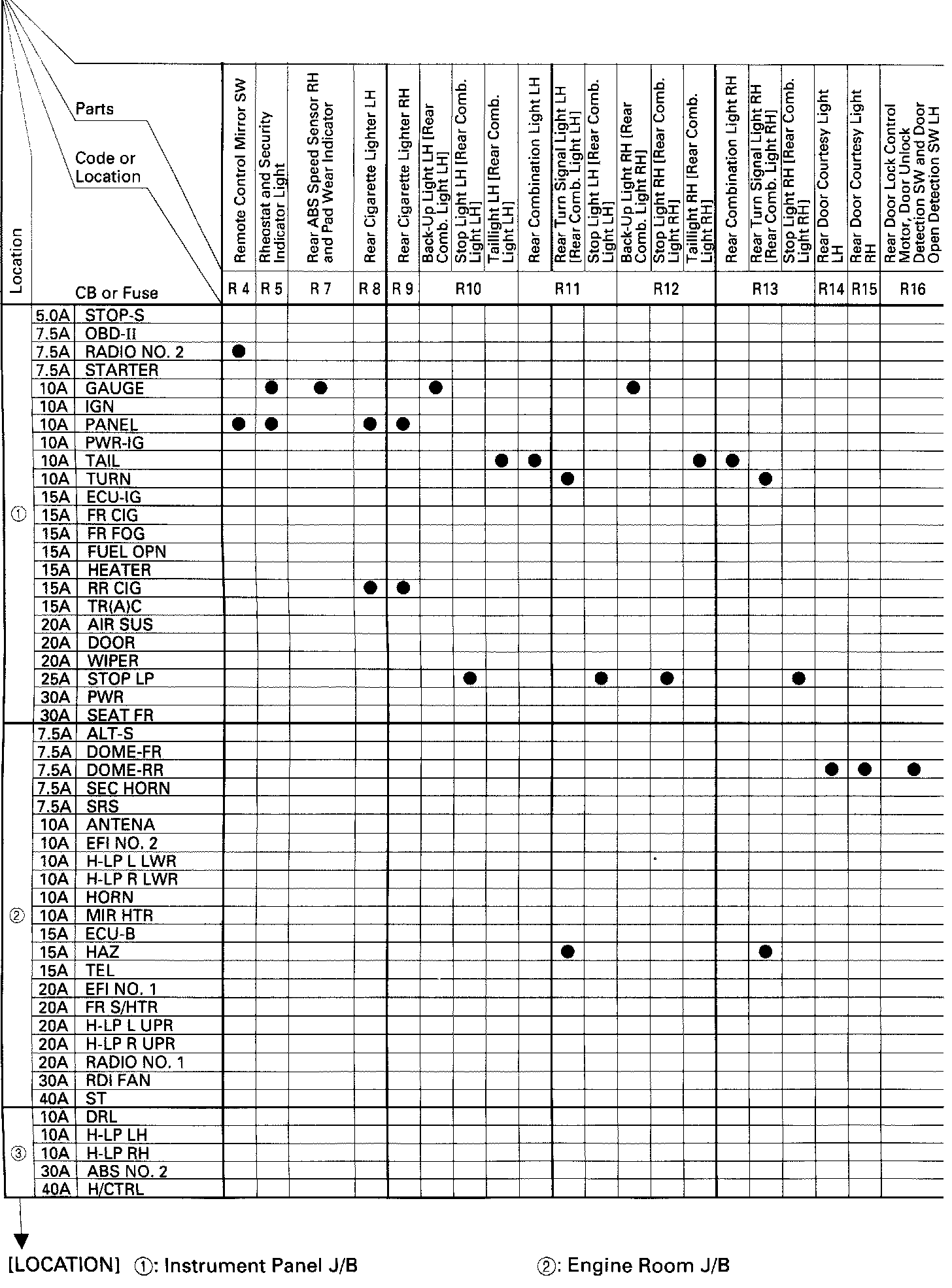

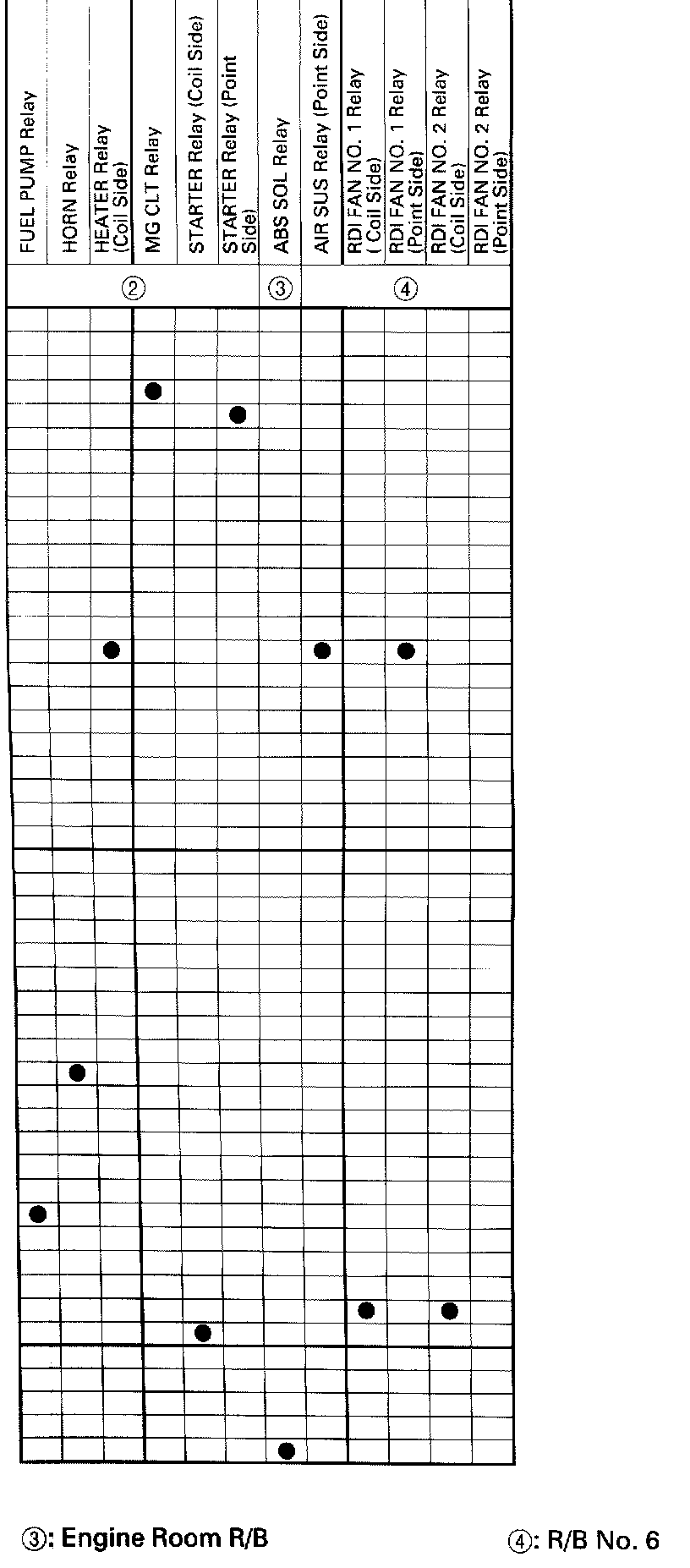

The chart below shows the route by which current flows from the battery to each electrical source (Fusible Link, Circuit Breaker, etc.) and other parts.

LOCATION
(1): Instrument Panel J/B
(2): Engine Room J/B
(3): Fusible Link Block
AM1 HIGH CURRENT AM2 MEDIUM CURRENT

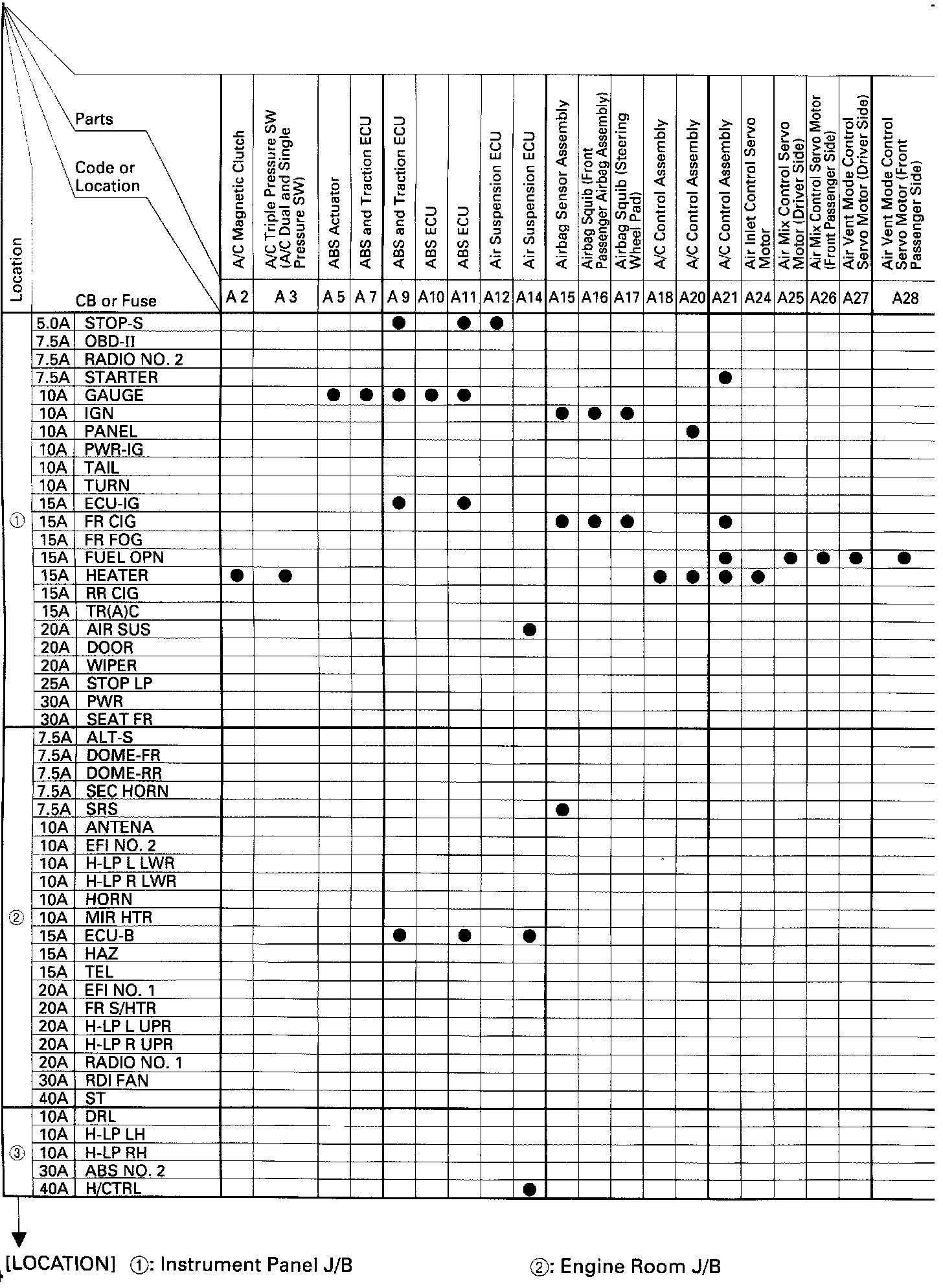

CODE OR LOCATION: A2 to A28

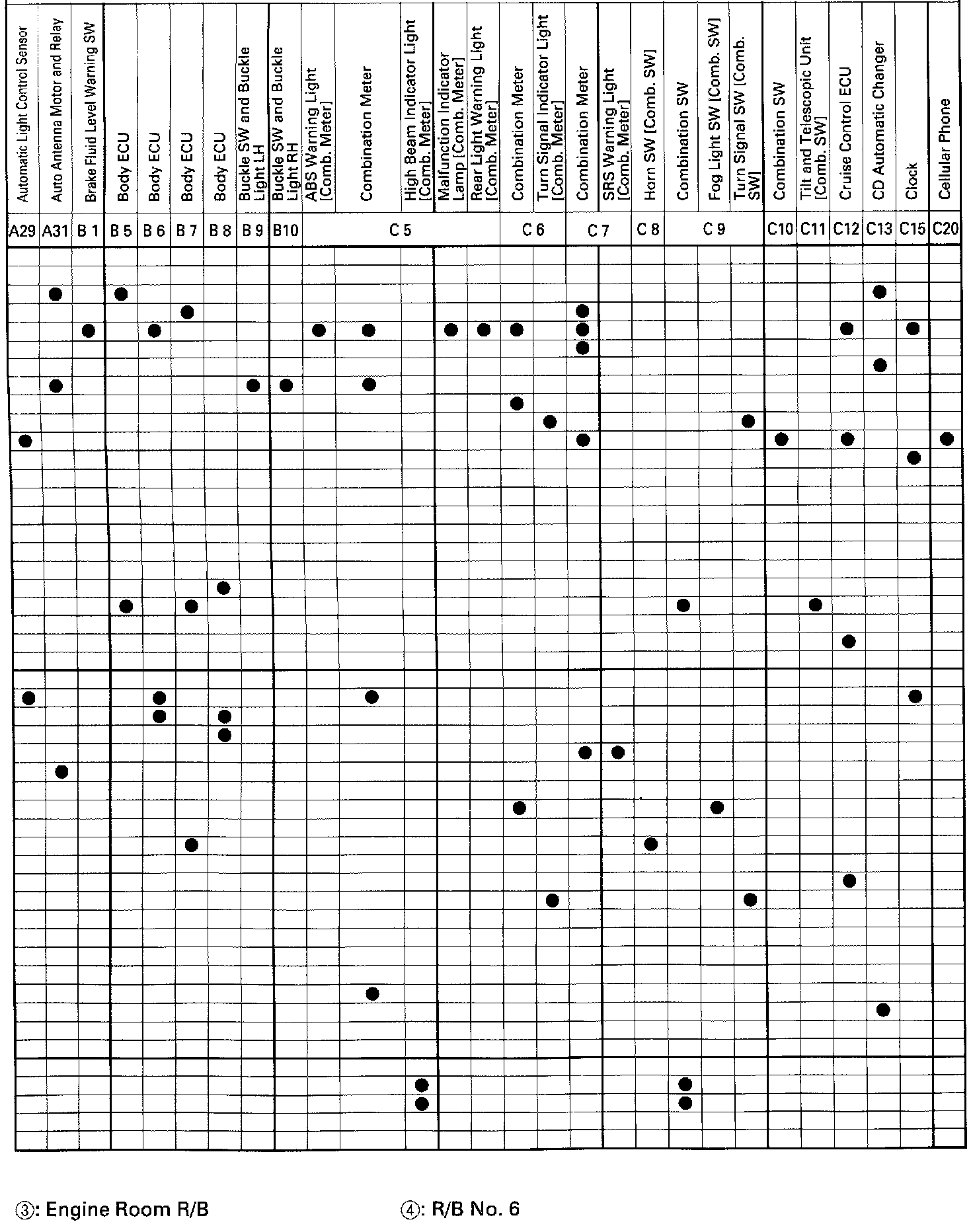

CODE OR LOCATION: A29 to C20

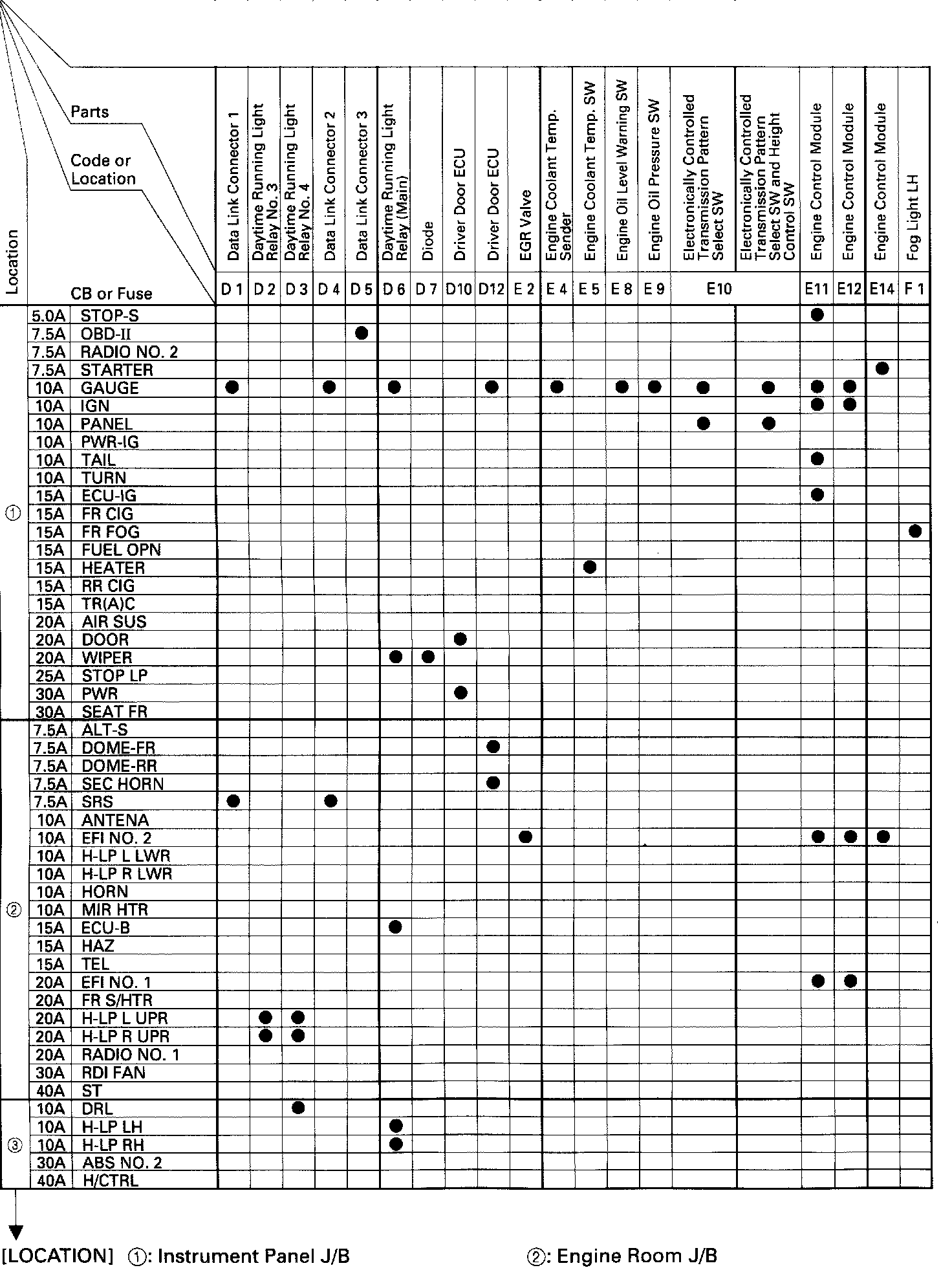

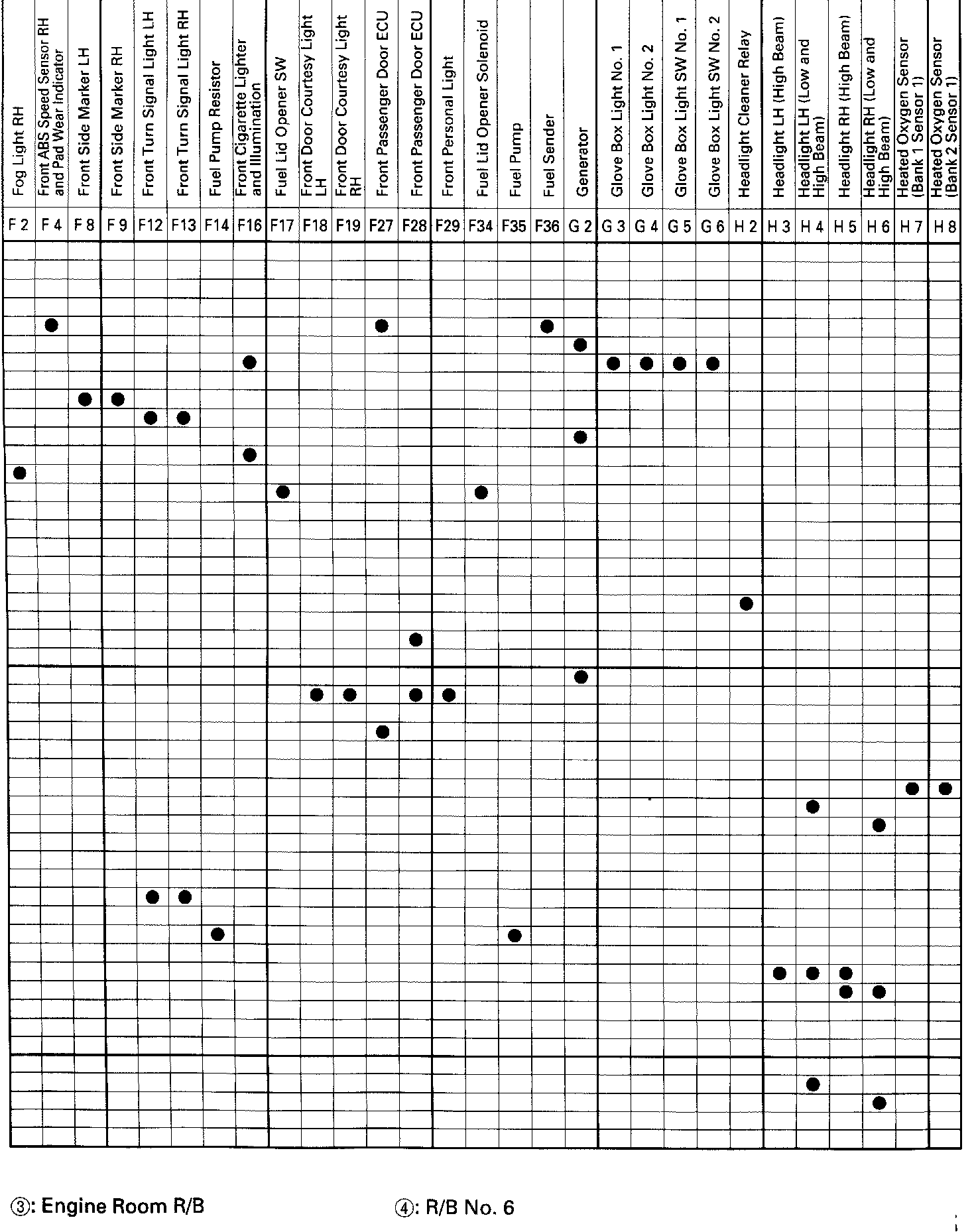

CODE OR LOCATION: D1 to F1

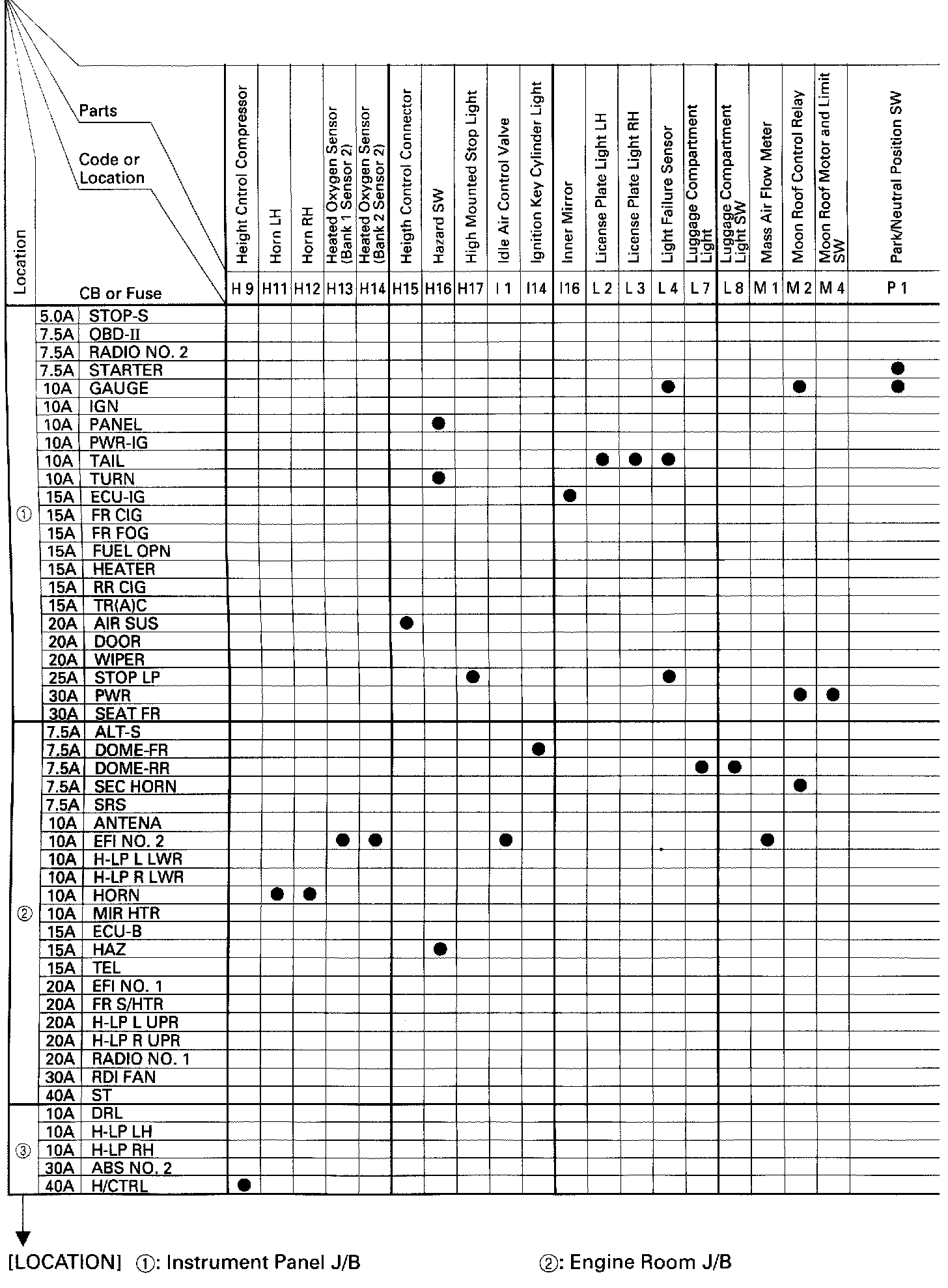

CODE OR LOCATION: F2 to H8

CODE OR LOCATION: H9 to P1

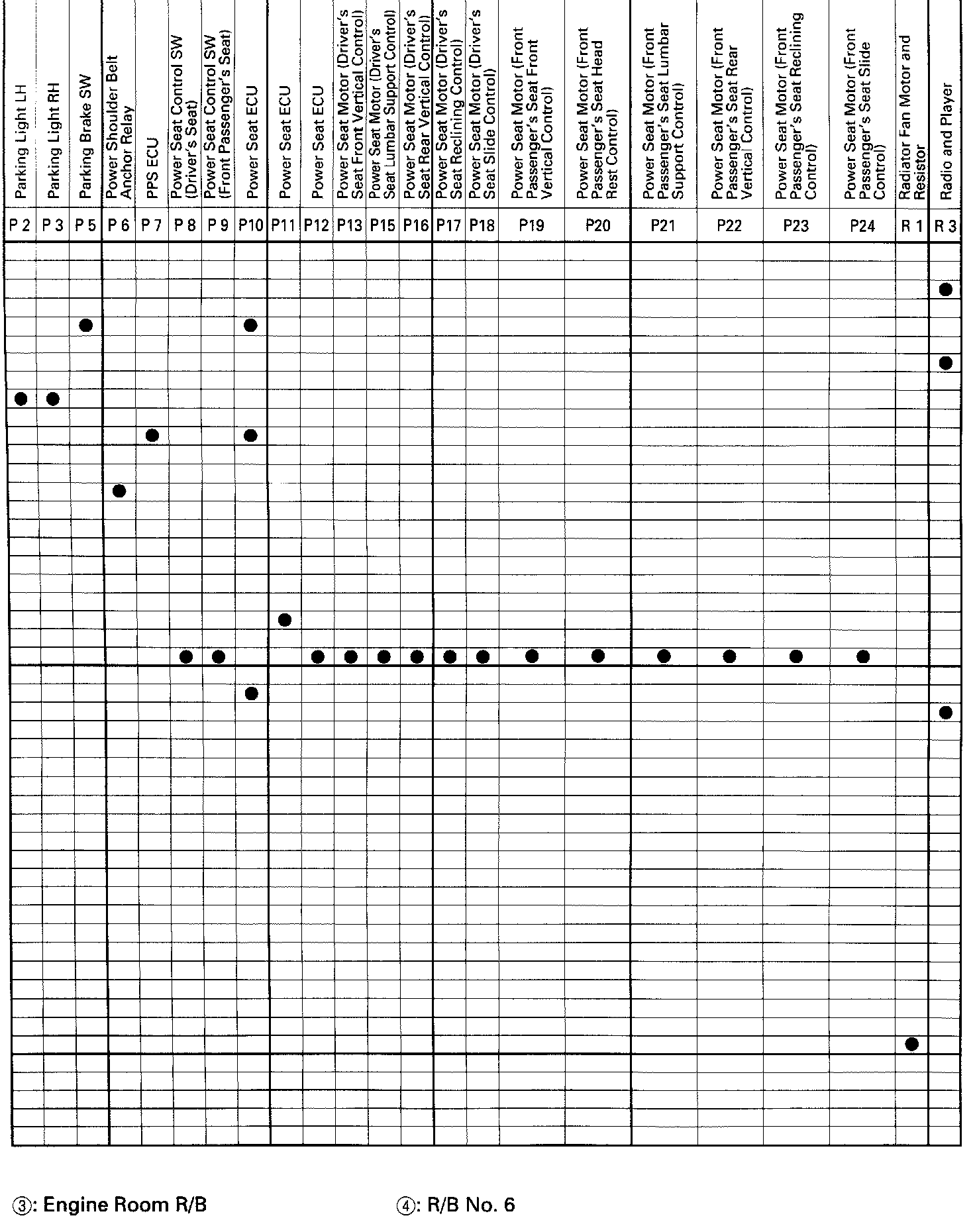

CODE OR LOCATION: P2 to R3

CODE OR LOCATION: R4 to R16

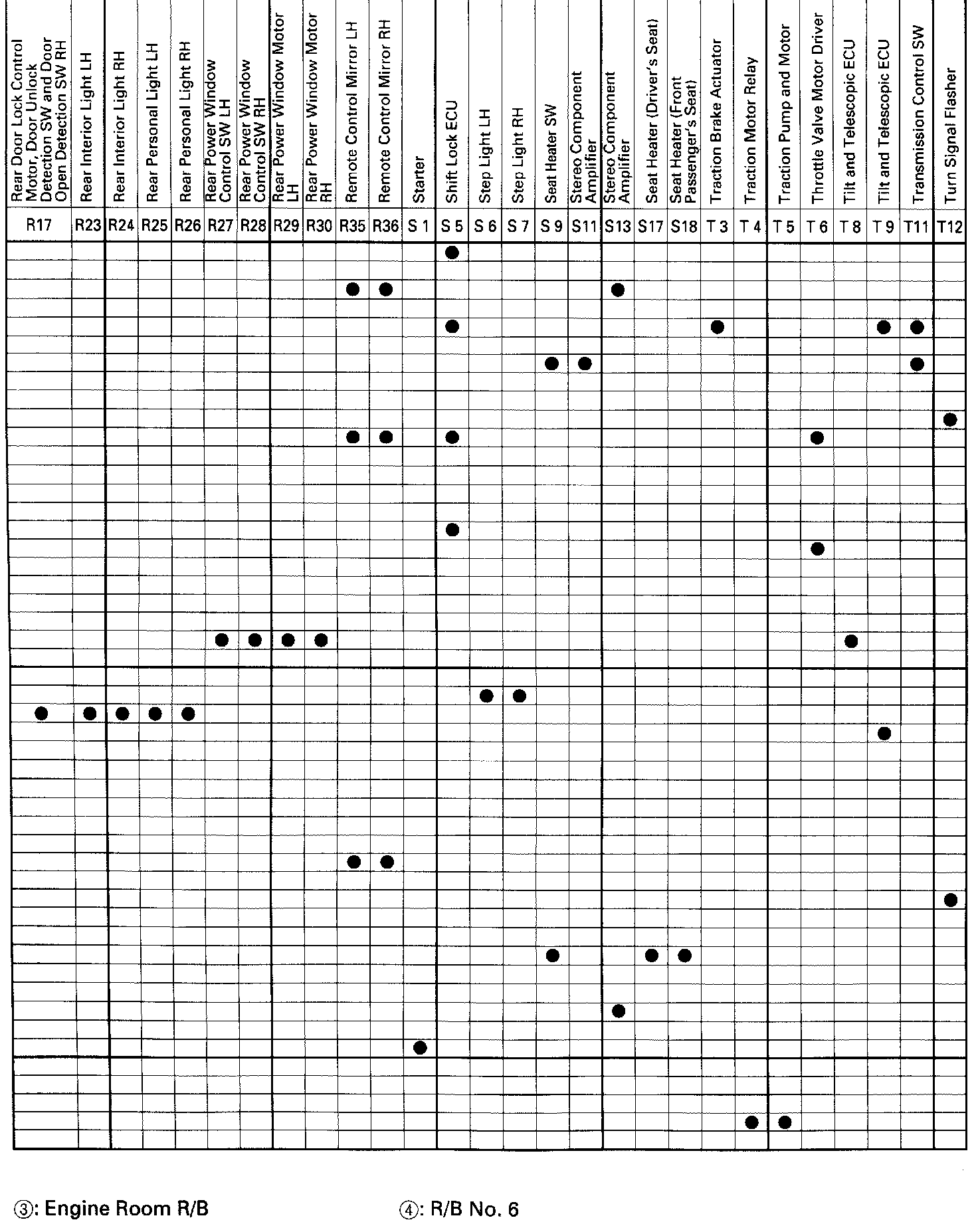

CODE OR LOCATION: R17 to T12

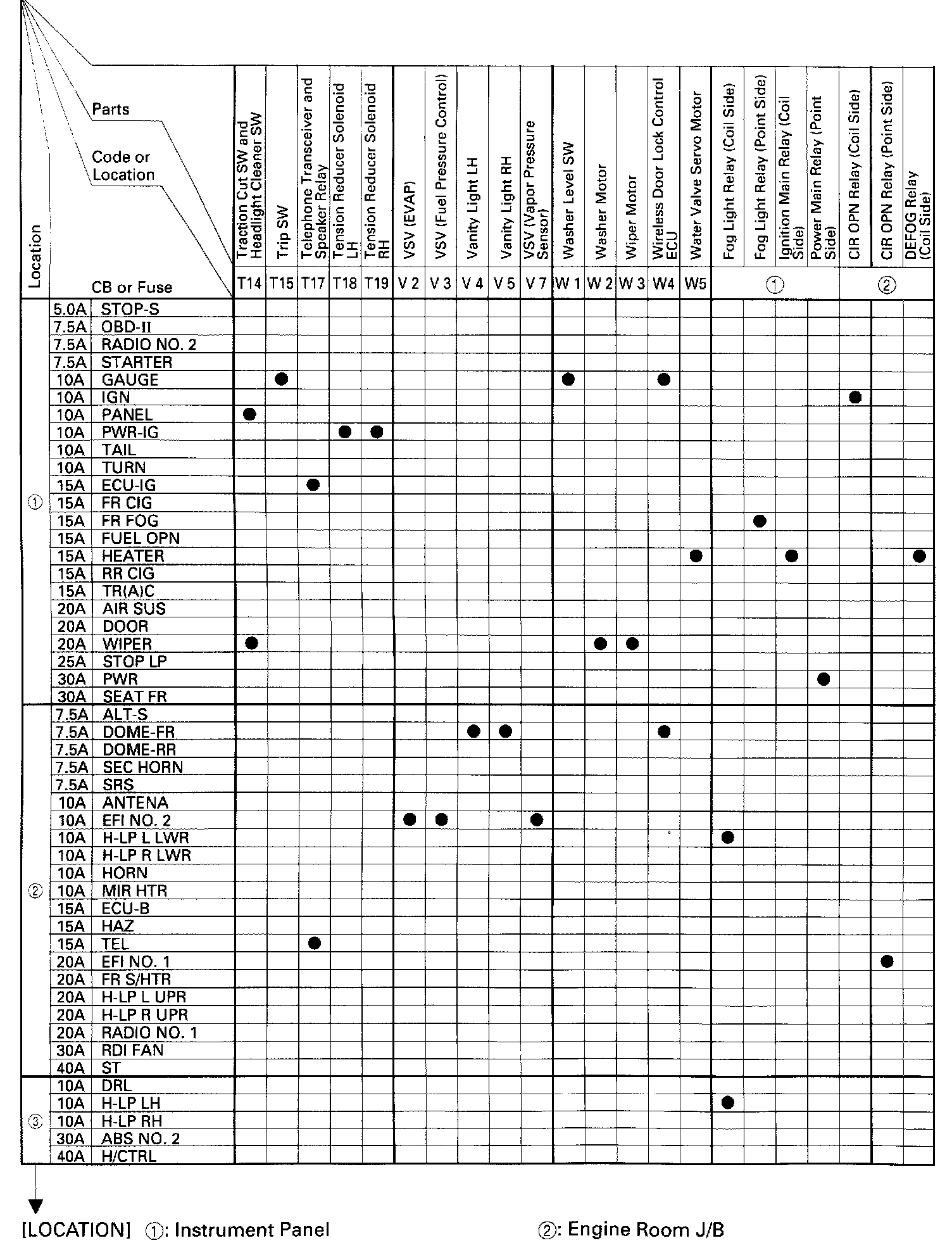

CODE OR LOCATION: T14 to W5 and Instrument/Engine Room J/B

CODE OR LOCATION: Engine Room R/B (2), (3), and (4).
